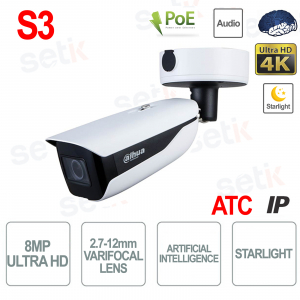

IPC-HFW5842H-ZHE-ATC-S3 Dahua AI Outdoor IP Camera Onvif PoE with Artificial Intelligence , 8 Megapixel 8MP , 1/1.8" CMOS sensor with Starlight Technology , 2.7-12mm lens with motorized zoom and compression up to H.265+ . Smart IR illuminator 4 LED 60MT , Day/Night (ICR), WDR 120dB, Video Analysis , EIS, ROI, Defog, MicroSD Slot, Audio & Alarm, RS485, IP67/IK10 with anti-corrosion ATC. S3 version
https://www.setik.biz/en/cameras/10539-dahua-ipc-hfw5842h-zhe-atc-s3-dahua-starlight-wdr-s3-onvif-poe-8mp-motorized-ip-ai-camera.html
€638.44
€1,484.74 -57%
taxes included
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE OUTDOOR IP CAMERA - 8 MEGAPIXEL WITH ATC ARTIFICIAL INTELLIGENCE - S3 VERSION - DAHUA
ONVIF® PoE IP Camera - AI Series - S3 Version - Dahua
8Megapixel Resolution - 2.7-12mm Lens with Motorized Zoom - 1/2.8" Starlight CMOS
Starlight CMOS sensor - Day/Night (ICR) - WDR 120dB - Smart IR illuminator 4 LEDs 60MT
Artificial Intelligence and Video Analysis - Audio/Alarm, RS485, MicroSD Slot
8Megapixel Resolution - 2.7-12mm Lens with Motorized Zoom - 1/2.8" Starlight CMOS
Starlight CMOS sensor - Day/Night (ICR) - WDR 120dB - Smart IR illuminator 4 LEDs 60MT
Artificial Intelligence and Video Analysis - Audio/Alarm, RS485, MicroSD Slot
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Outdoor PoE AI IP Camera - Dahua
- S3 Version
- 8Megapixel 4K ULTRA HD Resolution
- 2.7-12mm varifocal lens with motorized zoom
- 1/1.8” CMOS sensor with Starlight Technology !
Starlight Technology: Color vision even at night! - Video compression up to H.265+
- Triple Stream
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 4 LEDs 60MT
- Artificial Intelligence : Face Detection / Perimeter Protection / People Counting / Smart Search
- Video Analysis: Abandoned / Lost Objects, Object Movement
- Remote viewing with DMSS
- Audio : 1 Input + 1 Output
- Alarm : 3 Inputs + 2 Outputs
- RS485
- Micro SD memory slot (Up to 256GB - not included)
- IP67 / IK10 protection with ATC anti-corrosion
- Material: Metal + Plastic
- Power supply NOT included
- 24 month warranty
Technical data sheet
| Model | IPC-HFW5842H-ZHE-ATC-S3 |
| Room | |
| Image Sensor | 1/1.8”CMOS |
| Effective Pixel | 3840 (H) × 2160 (V) |
| ROM/RAM | 4GB / 2GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.0007 lux@F1.2 (Color, 30 IRE) |
| IR Distance | 60 m (196.9 ft) |
| IR On/Off Control | Auto;Manual;Zoom |
| IR LEDs | 4 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm–12.0mm |
| Max. Openings | F1.2 |
| Field of View | H: 112°–48°; V: 58°–27°; D: 137°–55° |
| Iris Type | Car |
| Iris Control Type | P-Iris |
| Close Focus Distance | W: 1.75 m (5.7 ft) |
| Intelligent | |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD 3.0 | Less false alarm, longer detection distance |
| TO THE SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+;Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Streaming Capability | 4 streams |
| Video Frame Rate | Main stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps) Fourth stream: 720p@ (1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1535/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bitrate Control | CBR/VBR |
| Video Bitrate | H.264:32kbps-16384kbps H.265:12kbps-13568kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Electronic Image Stabilization(EIS) | Electronic Image Stabilization (EIS) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4 M (2688×1520 )resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
| Network | |
| Ethernet | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability | 20 (Total bandwidth: 80M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 512G); NAS |
| Browser | IE: IE9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification |
| Certifications | |
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional) |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio IN/OUT | 1/1 channel |
| Alarm IN/OUT | 3 channel In: 5mA 5V DC / 2 channel Out: 1000mA 30V DC/500mA 50V AC |
| Analog Output | 1 channel (CVBS output: BNC) |
| Power | |
| Power Supply | 12 VDC/24 VAC/PoE (802.3at)/ePoE |
| Power Consumption | Basic: 4.5W (12VDC); 5.6W (24VAC); 6W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F)/≤95% RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Ingress Protection | IP67, IK10 |
| Structure | |
| Casing | Metal + plastic |
| Dimensions | 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H) |
| Net Weight | 1.6kg (3.5lb) |
| Gross Weight | 2.4kg (5.3lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
| AI | Artificial Intelligence - People counting: after crossing a line or zone - Perimeter protection: Intrusion, Line crossing (people & vehicles classification) |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera has a resolution of 8Megapixel 8 MP : |
| 1/1.8" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor, it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
 | 2.7-12mm varifocal lens with motorized zoom Motorized zoom example |
 | Main stream: 3840×2160 (1fps–25/30fps) |
| IR Illuminator with 4 LEDs and maximum range of 60 meters! |
 | Remote visibility on mobile using Dahua DMSS application. |
 | This DVR features 1 audio input + 1 audio output |
 | This camera has 3 inputs + 2 alarm outputs |
 |
Allows you to control PTZ movements remotely. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.  |
 | It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there are risks of vandalism with ATC anti-corrosion
|
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 |
Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
