SD60432DB-HNY Dahua 4MP 4Megapixel ONVIF PoE PTZ Starlight outdoor IP camera, 32X Optical Zoom (4.8-154mm), 1/2.8” CMOS sensor, H.265+, Motion Detection, ROI, EIS, Defog, WDR 120dB , Video Analysis, Face Detection, Perimeter protection MicroSD slot (512GB), Audio, Alarm, RS485, Video output, IP67/IK10/TVS 6000 V.
https://www.setik.biz/en/cameras/10510-dahua-sd60432db-hny-ip-camera-onvif-poe-dahua-speed-dome-ptz-4mp-32x-wdr-starlight-dahua.html
€1,160.07
€2,762.08 -58%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

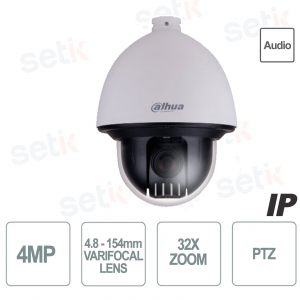

DAHUA IP ONVIF® POE PTZ SPEED DOME CAMERA - 4MEGAPIXEL 32X ZOOM - STARLIGHT
Dahua PTZ outdoor ONVIF® PoE IP camera
4MP 4Megapixel Resolution - 32x Optical Zoom(4.8~154mm) - 1/2.8” CMOS - H.265+
WDR 120dB - Day/Night(ICR) - ROI - EIS - Defog - Audio/Alarm - IP67/IK10 - MicroSD slot (512GB)
➽ ON BOARD: Video Analytics - Face Detection and Perimeter Protection
4MP 4Megapixel Resolution - 32x Optical Zoom(4.8~154mm) - 1/2.8” CMOS - H.265+
WDR 120dB - Day/Night(ICR) - ROI - EIS - Defog - Audio/Alarm - IP67/IK10 - MicroSD slot (512GB)
➽ ON BOARD: Video Analytics - Face Detection and Perimeter Protection
Product details
- Dahua Outdoor ONVIF® PoE PTZ Speed Dome Motorized IP Camera
- Starlight Technology
- Resolution 4MP 4Megapixel
- 1/2.8” CMOS image sensor
- Compression up to H.265+
- Triple stream
- Video Analysis : Line Crossing, Intrusion, Lost Abandoned Objects
- Advanced Intelligent Functions: Face Detection - SMD3.0
- 32x Optical Zoom (4.8~154mm) + 16x Digital Zoom
- ULTRA WDR (120dB) - Motion - ROI - EIS - Defog
- Pan rotation : 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180°
- 8 tours and 5 patterns
- Audio: 1 input + 1 output
- Alarm: 7 inputs + 2 outputs
- Video Output
- RS485
- microSD-Card slot (Max 512GB - not included)
- IP67 Protection (Dust / Immersion)
- IK10 protection (Vandalism) and 6KV (lightning)
- Suitable for extreme temperatures from -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
- Without IR Infrared illuminator
- Dimensions Φ222(mm) x 292(mm)
- 24 month warranty
Technical data sheet
| Model | SD60432DB-HNY |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 2592(H) x 1520(V), 4 Megapixels |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Shutter Speed | 1/1s~1/30,000s |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); |
| Lens | |
| Focal Length | 4.8mm–154mm |
| Max Openings | F1.6 ~ F4.0 |
| Angle of View | H: 55.8°–2.3°; V: 31.9°–1.3°; D: 63.7°–2.7° |
| Optical Zoom | 32x |
| Focus / Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1m-1.5m (0.33ft-4.92ft) |
| Iris Control | Car; manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°, auto flip 180° |
| Preset Speed | P an: 0.1° ~600° /s; Tilt: 0.1° ~500° /s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| PTZ Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering |
| Face Detection | Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD | SMD3.0 |
| Video | |
| Compression | Smart H.265+; H.265; Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640×480) |
| Frame Rate | Main stream: 4M,1080P/1.3M/ 720P(1~25/30fps) Sub stream1: D1/VGA/CIF@(1–25/30 fps) Sub stream2: 720p@(1–25/30 fps) |
| Bitrate Control | CBR/VBR |
| Bitrate | H.264: 96Kbps–14,848Kbps H.265: 38Kbps–8,960Kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Support |
| Region of Interest (ROI) | Support |
Image Stabilization (EIS) | Electronic Image Stabilization (EIS) |
Defog | Electronic |
Digital Zoom | 16x |
Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; 8 colors available |
| Y/N Ratio | ≥55dB |
| Audio | |
| Compression | G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol |
HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP;DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMPv1/v2c/v3(MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP |
| Interoperability | ONVIF® Dahua SDK |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users (total bandwidth: 64M) |
| Edge Storage | FTP; Micro SD card (up to 512 GB); NAS |
| Web Viewer | IE 7 and later versions; Chrome 45 and later versions; Firefox 52ESR and earlier versions; All Safari versions |
| Management Software | Smart PSS; IVSS; NVR; Cloud Connection |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE: EN55032/EN55024/EN50130-4 |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Alarm Input | 7 (on-off value input: 0–5 VDC) |
| AlarmOutput | 2 channels |
| Alarm Linkage | Capture; presets; tours; pattern; recording; alarm digital output; send email; |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 24 VDC, 2.5 A ± 25% (included) |
| Power Consumption | Basic: 13W; |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67; TVS 6000V lightning proof; surge protection; IK10 |
| Structure | |
| Product Dimensions | 292.0 mm × Φ222.0 mm (11.50" × Φ8.74") |
| Net Weight | 3.4kg (7.50lb) |
| Gross Weight | 6.4 kg (14.10 lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. This camera has the PoE+ 802.3at protocol |
 | This camera features a resolution of 4 Megapixels! |
 | 32x Optical Zoom ( 4.8~154mm) + 16x Digital Zoom |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features VIDEO ANALYSIS (SMART DETECTION) functions:
|
 | Supports Intelligent 3D Positioning with DH-SD protocol. This system allows not only movement on the camera axis but also positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°, auto flip 180° Manual Control Speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~150° /s Preset Speed: Pan: 600° /s; Tilt: 500°/s Presets: 300 PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour), 5 Scan Speed Setup: Human-oriented focal length/ speed adaptation Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol: DH-SD, Pelco-P/D (Auto recognition) |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.  |
 | This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.  |
 | DEFOG It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 | RS 485 for PTZ Controls (Remotely controllable cameras) |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event. This Camera has 7 Inputs and 2 Outputs |
 | This camera has 1 input + 1 Audio Output |
 | Possibility to insert Micro SD up to a maximum of 512GB - not included |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | This product is covered by a 24 month warranty. |
