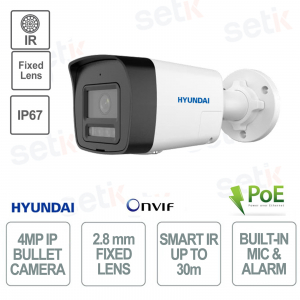

Outdoor Bullet IP Camera 4 Megapixel fixed lens 2.8mm IR 30m PoE IP67 - Microphone and Alarm - Hyundai
HYU-1130 Outdoor PoE IP Bullet Camera 30m IR illuminator 1/3” 4MP CMOS sensor. 2.8mm fixed lens. BLC, HLC, digital WDR, 3D-DNR, motion detection 2.0 allows classification of people and vehicles, Built-in Microphone and Speaker. Audible alarm and flashing light. 512GB MicroSD slot (not included). 3AXIS mirror mode, IP67 outdoor.
FIND INSTALLER
POE IP BULLET CAMERA HYUNDAI 4 MEGAPIXEL FIXED LENS 2.8mm - IR 30M - MICROPHONE & ALARM - IP67 - HYU-1130
HYU-1130 Outdoor PoE IP Bullet camera fixed lens 2.8mm 30m IR illuminator 1/3" 4MP CMOS sensor. BLC, HLC, digital WDR, 3D-DNR, motion detection 2.0 allows classification of people and vehicles, Built-in microphone and speaker. audible alarm and flashing light. 512GB MicroSD slot (not included) 3AXIS mirror mode, outdoor IP67 - 3AXIS-Power: 12V DC (±10%)/ PoE (802.3af). Power consumption: 7.5W (12V) / 9W (PoE) plastic and metal housing.
Product details
HYUNDAI CATALOGUE: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us via email. |
| 4Megapixel resolution 1/3" CMOS image sensor |
| This camera is equipped with a 2.8mm fixed lens |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | ULTRA WDR 120 dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | A 12VDC power supply is required to operate this camera (not included)  |
 | This product is covered by the manufacturer's 3-year warranty! |
Data sheet
| HYU-1130 |
| 4 megapixel 1/3" CMOS sensor |
| Compression formats: H.265+, H.264+, H.265, H.264, MJPEG |
| Digital resolution: 4MP (2560x1440), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
| Stream 1: 4MP (20 fps), 1080P, 720P (25/24 fps) |
| Stream 2: 720P, VGA, Q720P (25/24 fps) |
| Day/night mode with removable mechanical filter |
| Dual intelligent illumination by IR and white light, up to 30 meters |
| 0.005 lux F1.6 (color), 0 lux IR On |
| 2.8mm fixed optics |
| Angle of view: 98°(H), 54°(V), 114°(D) |
| Imaging modes: BLC, HLC, WDR 120dB, 3D-DNR |
| Saturation, brightness, contrast, sharpness, gain and white balance adjustments from client software or web browser |
| Supports 1 fixed ROI for main stream |
| 4 programmable privacy masks |
| Motion detection 2.0 allows classification of people and vehicles |
| Alarm linking: upload to FTP, NAS or memory card, send email, notify monitoring center, record trigger, capture trigger, audible alert and flashing light |
| Built-in microphone and speaker |
| MicroSD slot for cards up to 512 GB (card not included) |
| Auto-adaptive RJ45 10/100M Ethernet interface |
| Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS, FTP, SMTP |
| ONVIF (S/T), ISAPI, SDK support |
| Up to 32 users and 6 simultaneous views |
| Compatible with web browsers |
| Power supply: 12V DC (±25%) / PoE (802.3af) |
| Power consumption: 7.5W (12V) / 9W (PoE) |
| Storage temperatures -30°C ~ +60°C |
| Storage humidity: ≤95% (non-condensing) |
| Operating temperature from -30°C ~ +60°C |
| Operating humidity: ≤95% (non-condensing) |
| IP67 degree of protection |
| Metal and plastic housing |
| Dimensions: 69.1 (W) x 67.4 (H) x 179 mm |
| Net weight: 315 g |
| Gross weight: 520 g |
| 3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(ROTATION) |
