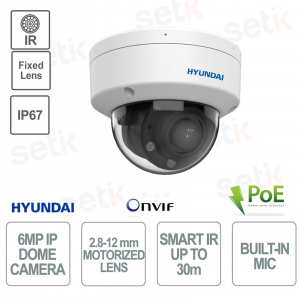

PoE Outdoor Dome Camera - IP - Smart Hybrid Light - 6MP - 2.8-12mm - Smart IR 30m - IP67 and IK08 - Microphone - Hyundai
HYU-1109 - 6MP IP outdoor dome camera - 6MP 3200x1800 resolution - 6MP 1/2.4" CMOS sensor - 2.8-12mm motorized lens - Smart IR 30m white light - BLC, HLC, Digital WDR 120dB, 3D-DNR - Digital balance white - MicroSD 512Gb (not included) - Plastic and metal housing - IP67 and IK08 microphone protection - 12V DC (±25%) / PoE (802.3af) adapter (not included).
FIND INSTALLER
HYUNDAI 6MP OUTDOOR DOME CAMERA 6 MEGAPIXEL 2.8-12MM MOTORIZED LENS - SMART IR 30 MT - IP67 - IK08 - MICROPHONE - HYU-1109
HYU-1109 - Outdoor IP dome camera from Hyundai
Product details
HYUNDAI CATALOGUE: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us via email. |
 | 4Megapixel resolution 1/3" CMOS image sensor |
| This camera is equipped with a 2.8-12mm varifocal lens with motorized zoom |
| Smart IR illuminator, with a maximum range of 30 meters, with white light This camera also features SMART IR technology. |
 | ULTRA WDR 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | A 12VDC power supply is required to operate this camera (not included)  |
 | This product is covered by the manufacturer's 3-year warranty! |
Data sheet
| HYU-1109 |
6-megapixel 1/2.4" CMOS sensor |
Compression Formats: H.265+, H.264+, H.265, H.264, MJPEG |
Digital resolution: 6MP (3200x1800), 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
Stream 1: 6MP, 4MP, 1080P, 720P (20fps) |
Stream 2: 720P, VGA, Q720P (25/24 fps) |
Day/night mode with removable mechanical filter |
Dual intelligent illumination by IR and white light, up to 30 meters |
0.005 lux F1.6 (color), 0 lux IR On |
2.8 ~ 12mm motorized optics |
Angle of view: 96.7°~29.7°(H), 51.7°~16.7°(V), 114.3°~34°(D) |
Imaging modes: BLC, HLC, WDR 120dB, 3D-DNR |
Saturation, brightness, contrast, sharpness, gain and white balance adjustments from client software or web browser |
Supports 1 fixed ROI for main stream |
4 programmable privacy masks |
Motion detection 2.0 allows classification of people and vehicles |
Built-in microphone |
MicroSD slot for cards up to 512 GB (card not included) |
Auto-adaptive RJ45 10/100M Ethernet interface |
Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
ONVIF (S/T), ISAPI, SDK support |
Up to 32 users and 6 simultaneous views |
Remote viewing through browsers |
Management software iVMS-4200, Hik-Connect |
Power supply: 12V DC (±25%) / PoE (802.3af) |
Power consumption: 9.6W (12V) / 12W (PoE) |
Storage temperature from -30°C ~ +60°C |
Relative humidity: <95% (non-condensing) |
Operating temperature from -30°C ~ +60°C |
Operating humidity: ≤95% (non-condensing) |
IP67 degree of protection |
Vandal-proof IK08 |
Metal and plastic housing |
Dimensions: Ø121.5 x 97.6 mm |
Net weight: 540g |
Gross weight: 740 g |
3AXIS: 0°~355°(PAN), 0°~70°(TILT), 0°~355°(ROTATION) |
