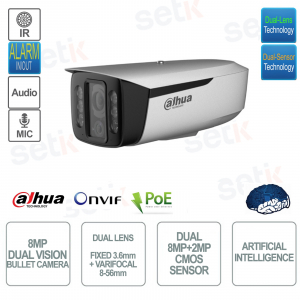

POE ONVIF IP Bullet Camera - Double lens and double sensor 8MP+2MP - 3.6mm fixed and 8-56mm varifocal - AI

-57% New

IPC-MFW7842K1-Z7-T20 - Dahua - Outdoor POE ONVIF Bullet IP camera - Dual CMOS Sensor (8MP 1/1.7" + 2MP 1/2.7") - 3.6mm fixed lens + 8-56mm varifocal lens - H.265+ - Triple Stream - BLC - HLC - WDR120dB - ROI - Defog - 3DNR - Artificial Intelligence and Video Analysis - Audio - Alarm - Microphone - High quality speaker - IP67 Outdoor protection - 256GB MicroSD slot - RS485 - RJ45 LAN 1000M - Made of plastic and metal.

Reference: IPC-MFW7842K1-Z7-T20

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/10429-dahua-ipc-mfw7842k1-z7-t20-bullet-camera-ip-poe-onvif-double-optics-and-double-sensor-8mp2mp-36mm-fixed-and-8-56mm-varifocal-ai.html

€1,036.61

€2,410.72 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Technical Data Sheet Further Details Download

OUTDOOR POE ONVIF IP CAMERA - 8 MEGAPIXEL - DOUBLE CMOS SENSOR - DOUBLE LENS - FIXED 3.6MM - VARIFOCAL 8-56MM - ARTIFICIAL INTELLIGENCE - -AUDIO - ALARM - IPC-MFW7842K1-Z7-T20

ONVIF® PoE outdoor IP camera - AI Series - Dahua - IPC-MFW7842K1-Z7-T20
8 Megapixel Resolution - Dual CMOS Sensor (8MP 1/1.7" + 2MP 1/2.7) - 3 Streams - Up to H.265+
IR illumination up to 120m - Day/Night(ICR) - MicroSD Slot (Max. 256GB - NOT INCLUDED! ) - Audio 2in/1out / Alarm 3in/2out - Built-in microphone - High quality speaker on board - WDR 120dB - BLC - HLC - Defog - ROI - 3DNR - IP67 protection for outdoors - Made of plastic and metal.
Artificial Intelligence: Perimeter Protection, Face Detection/Recognition, People Counting, Metadata, Intelligent Search
Video Analysis: Abandoned / Lost Objects - One of the best bullet cameras

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

ONVIF® PoE Outdoor IP Camera AI Series Dahua - IPC-MFW7842K1-Z7-T20
8 Megapixel 8MP 3840x2160 resolution
Dual CMOS sensor: 4MP 1.1.7" + 4MP 1/2.7"
Double lens: Fixed 3.6mm + Varifocal 8-56mm
Video Compression up to H.265+
Triple Stream Video
Artificial intelligence: Perimeter protection, face detection, people counting, metadata, intelligent search
Video General Analysis: Abandoned/Lost Objects
Functions: Day/Night(ICR), WDR 120dB , BLC, 3D DNR, Motion Detection, ROI, EIS, Defog
Smart IR illuminator 2 LEDs up to 100m maximum
2 audio inputs / 1 audio output (RCA ports)
3 inputs / 2 alarm outputs
RS485
RJ45 Ethernet LAN 10/100/1000Mbps
IP67 protection (Dust / Immersion)
PoE protocol
MicroSD Slot (Max 256GB - Not Included)
12V DC power supply (not included)
Supports PoE power supply
Operating temperature: –30 °C to +60 °C
Item Net Weight: 1.905g
Dimensions: 283.1mm × 123.2mm × 109.5mm
Material: plastic and metal
Ideal for outdoor use
24 month warranty

Data sheet

IPC-MFW7842K1-Z7-T20

Room

Image Sensor

Channel 1: 1/1.7" CMOS
Channel 2: 1/2.7" CMOS

Max.Resolution

3840(H)×2160(V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:
0.0015 lux @F1.2 (Color, 30IRE)
0.0003 lux @F1.2 (B/W, 30IRE)
0 lux (Illuminator on)
Channel 2:
0.002 lux @F1.0(Color,30IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

Channel 1:
120 m (393.70 ft) (IR)80 m (262.47 ft) (warm light)
Channel 2:
20 m (65.62 ft) (warm light)

Illuminator Number

Channel 1: 4 (Mixed (IR + warm) light)
Channel 2: 2 (warm LED)

Lens

Lens Type

Channel 1: Motorized vari-focal
Channel 2: Fixed focus

Lens Mount

Channel 1: Module
Channel 2: M12

Focal Length

Channel 1: 8mm–56mm
Channel 2: 3.6mm

Max. Openings

Channel 1: F1.6
Channel 2: F1.0

Field of View

Channel 1:
Horizontal: 40° (W)–9° (T)
Vertical: 22° (W)–5° (T)
Diagonal: 46° (W)–10° (T)
Channel 2:
Horizontal: 81°
Vertical: 43°
Diagonal: 95°

Close Focus Distance

Channel 1:
W: 1 m (3.28 ft); T: 2 m (6.56 ft)
Channel 2:
2 m (6.56 ft)

Smart Events

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting

Face Recognition

Dahua Face Recognition Technology extracts attributes from the captured face, compares it against the attributes in the face library, and then identifies the person. Management of 5 group face libraries, Max supports face contrast in face library with 25,000 faces

People Counting

Tripwire people counting, people counting in area and queue management, generating and exporting reports (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management

Video Metadata

Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling, etc.

Non-motor vehicle attributes: type, color, number of people, top type and color, helmet.

Human body attributes: top/bottom type and color, bag, hat, gender, and umbrella.

Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1:
50Hz
Main Stream: 3840 × 2160@25 fps
Sub stream: 704 × 576@25 fps
Third stream: 1920 × 1080@25 fps
60 Hz
Main Stream: 3840 × 2160@25 fps
Sub stream: 704 × 480@30 fps
Third stream: 1920 × 1080@30 fps
Channel 2:
50Hz
Main Stream: 1920 × 1080@25 fps
Sub stream: 704 × 576@25 fps
Third stream: 1920 × 1080@25 fps
60 Hz
Main Stream: 1920 × 1080@25fps
Sub stream: 704 × 480@30 fps
Third stream: 1920 × 1080@30 fps

Resolution

Main Stream: 2688 × 1520 (default); 2560 × 1440; 2304 × 1296; 1920×1080; 1280×960; 1280×720

Sub Stream 1: 704 × 576 (default); 640×480; 352×288
Sub Stream 2: 1920 × 1080; 1280×720; 704 × 576 (default); 640×480

Video Bit Rate

H.264: 32kbps–8192kbps
H.265: 32kbps–8192kbps

Day/Night

Channel 1:
Auto(ICR)/Color/B/W
Channel 2:
Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Noise Reduction

3D NO

Region of Interest (RoI)

4 areas

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Privacy Masking

8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; license plate recognition, people number error; tripwire; input error; intrusion; intensity change; fast moving; people counting; people gathering; motion detection; missingobject; parking detection; loitering detection; defocus detection; face detection; abandoned object; stay detection; human detection; queuing stay time; people number error detection; face recognition; video tampering; scenes changing

Network

Network Port

RJ-45 (10/100/1000 Base-T)

Network Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Good morning

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 160M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB); NAS

Browsers

Plugins:
IE: IE 9 and later
Chrome: Chrome 86 and earlier
Firefox: Firefox 86 and earlier
Without Plugins:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

3 channels in: 5 mA 3 V–5 VDC

Alarm Output

2 channels out: 300 mA 12 VDC

Power

Power Supply

12VDC/PoE

Power Consumption

Basic: 5.5W (12VDC); 6.4W (PoE)
Max. (ICR + vari-focal + IR intensity): 19.2 W (12 VDC); 24.6W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to 140 °F)

Operating Humidity

≤ 95%

Storage Temperatures

–40 °C to +70 °C (–40 °F to +158 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

283.1 mm × 123.2 mm × 109.5 mm (11.14" × 4.85" × 4.31") (L × W × H)

Net Weight

1,905 g (4.20 lb)

Gross Weight

2,185 g (4.82 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	AI \| Artificial intelligence This camera features Artificial Intelligence on board This means it has a wide range of advanced features such as: - Perimeter protection : Line crossing, intrusion, fast movement (the 3 functions support the classification and accurate detection of vehicles and humans), parking detection, loitering, loitering - Face detection Face detection, tracking, priority, snapshots, face emphasis, face exposure, face attribute extraction, 6 attributes and 8 expressions: gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion), mask, beard. Face Matting setting: face, single thumb photo. 2 snapshot strategies: snapshot priority, recognition. Face angle filter, priority time setting. Management of up to 5 groups of face libraries. Individual person registry and batch person registry. Face detection and similarity settings. Supports maximum contrast in face libraries with 200,000 faces - People counting : Counts the number of people entering and exiting and transmits the number, displays and issues annual statistics daily/monthly, No. in area. - Video Metadata: Supports human body, human face, motorized and non-motorized vehicle capture and attribute extraction - Smart Search: Collaborate with NVR Smart to refine the performance of smart search, event extraction and event video fusion
	Video Stream - Triple Stream! This camera supports H.265+ video compression with 3 video streams!
	This camera features 8~56mm varifocal lens and 3.6mm fixed lens! (DOUBLE OPTICS ON BOARD) Optics Demonstration Video:
	Dual CMOS Sensor 8MP 1/1.7" + 2MP 1/2.7" CMOS With this CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	Infrared illuminator with approximately maximum range of 120m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed.
	Remote visibility on mobile using the Dahua DMSS application.
	Cloud function with Easy4IP
	This camera provides VIDEO ANALYSIS (SMART DETECTION): - Recognition of lost and abandoned objects
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
	This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
	This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
	DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
	It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations
	3D-NR is the most advanced version of NOIS REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of low light
	This camera features 2 audio inputs + 1 audio output (RCA ports) Features on-board microphone and high-quality speaker.
	This camera has 3 inputs + 2 alarm outputs
	1x RS485
	Possibility to record what happens on MicroSD. (Max 256GB - Not included)
	Protection level IP67 (Dust / Immersion)
	A 12V DC power supply is required to operate this camera (not included) Supports PoE power supply!
	This product is covered by a 24 month warranty.
