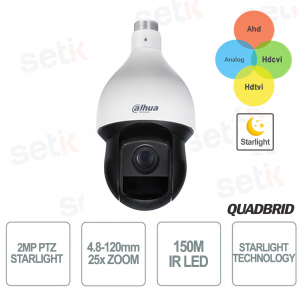

SD59225DB-HC Dahua Motorized outdoor surveillance camera 25X (4.8-120mm) PTZ (Pan/Tilt/Zoom) with 4 in1 technologies: CVI / TVI /AHD /Analog and 1080P 2 MPX 2MP FULL-HD resolution. Sony® STARVIS ™ 1 / 2.8 "CMOS sensor with Starlight Technology , 4 LED 150MT IR illuminator, day/night(ICR), WDR 120dB, Defog, Audio (1 input), BNC, RS485 Port, Alarm (2 inputs + 1 output), IP66 (rain/dust) and TVS6000V (lightning) protection
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA OUTDOOR CAMERA 4IN1 PTZ SPEED DOME MOTORIZED 25X - STARLIGHT - AUDIO ALARM - IR 150MT
4 Technologies in 1: CVI/TVI/AHD/Analog - Resolution 1080P 2 MPX 2MP FULL-HD - 25X (4.8-120mm) - CMOS 1/2.8" STARVIS™ CMOS Starlight
IR illuminator 4 LEDs 150MT - Day/Night - WDR 120dB - Defog - Audio / Alarm - RS485
IP66 Protection and Lightning Protection - 24 month warranty
Product details
- 4in1 PTZ Speed Dome outdoor camera powered by Dahua
- 4 Technologies in 1: CVI/TVI/AHD/Analog
- 2Megapixel 1080P 2MP 2MP FULL-HD resolution
- 1/2.8" STARVIS CMOS image sensor with Starlight technology!
- Starlight Technology: Color night vision
- PTZ: Performs Pan (Horizontal) / Tilt (Vertical) / Zoom movement
- 25X Optical Zoom (4.8mm~120mm) + 16X Digital Zoom
- Day/Night, BLC, HLC, Defog
- WDR (120db)
- PFA Technology: Sharp images when zooming. Reduces focusing times
- 4 LED IR illuminator with range up to 150 meters
- Alarm: 2 alarm inputs and 1 alarm outputs
- Audio: 1 input
- Analog Output: 1(CVBS/CVI and BNC output)
- RS485
- IP66 Protection (Rain / Dust) - Lightning Protection (TVS 6000V)
- Dimensions: 310.0 mm × Φ186.0 mm (12.20" × Φ7.32")
- 24 month warranty
Data sheet
| Model | SD59225DB-HC |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Pixels | 2MP |
| Max.Resolution | 1920 (H) x 1080 (V) |
| ROM | 128MB |
| RAM | 256MB |
| Electronic Shutter Speed | 1/3 s–1/30,000 s |
| Scanning System | Progressives |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (IR light) |
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Prio Zoom; manual |
| Illuminator Number | 4 IR |
| Lens | |
| Focal Length | 4.8mm–120mm |
| Max Openings | F1.6–F3.5 |
| Field of View | H: 60.6°–3.2°; V: 34.1°–1.8°; D: 69.4°–3.7° |
| Optical Zoom | 25x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
| Iris Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan:0.1°–300°/s Tilt:0.1°–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Presets | 300 |
| Tours | 8 (up to 32 presets per tour) |
| Patterns | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
| Video | |
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480) |
| Frame Rate | 1080P (25/30 fps), 720P (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2DNR; 3D NO |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥50dB |
| Function | |
| CVI Product Output Mode | TVI;CVI;CVBS;AHD(CVBS is only used for debugging) |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Port | |
| Audio Input | 1 channel (CVBS/CVI output, BNC) |
| RS-485 | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; presets; tours; pattern; alarm digital output |
| Alarm Event | Alarm input |
| Power | |
| Power Supply | DC 24V/3A ± 25% |
| Power Consumption | Basic: 10W Max.: 21 W (PTZ + illuminator) |
| Environment | |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤ 95%RH |
| Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Dimension | 310.0 mm × Φ186.0 mm (12.20" × Φ7.32") |
| Net Weight | 3.9 kg (8.60 lb) |
| Gross Weight | 7.2 kg (15.87 lb) |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time Analog , AHD , HDCVI and HDTVI .    |
 | This camera features a resolution of 2Megapixel 2MP 2MPX 1080P FULL-HD! |
| 1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color |
 | 25x Optical Zoom (4.8-120mm) + 16x Digital Zoom |
 | 4 LED IR illuminator with a range of up to 150 MT! This camera also features SMART IR technology.
|
 | Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0°–360° Tilt: -15°–+90° Manual Control Speed: Pan:0.1°–300°/s Tilt:0.1°–200°/s Preset Speed: Pan: 400°/s; Tilt: 300°/s Presets: 300 PTZ Mode: 8 (up to 32 presets per tour), 5 scans and 5 patterns Speed Adjustment: Support Power-off Memory: Support Idle Motion: Preset/Tour/Pattern/Scanning Protocol: DH-SD Pelco-P/D (auto recognition) |
 | It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs and 1 output |
 | This camera has 1 Audio inputs |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | This camera has automatic , manual and semi-manual focus |
 | RS 485 for remote control (keyboards, joysticks etc..) |
 | Level of protection from heavy rain and dust in IP parameters. |
 | This product is covered by a 24 month warranty. |
