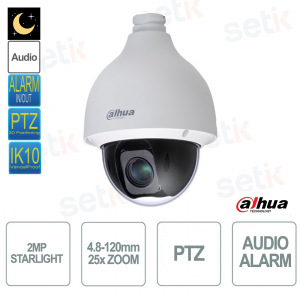

4in1 Starlight PTZ camera - 2MP - 25x zoom 4.8 mm–120 mm - Dahua

4in1 Starlight PTZ camera - 2MP - 25x zoom 4.8 mm–120 mm - Dahua
-57%

AI SD50225DB-HC Series - Dahua - HDCVI Camera - 2MP Resolution - 25x Zoom 4.8-120mm - CMOS 1/2.8" Starlight Technology, H.265+ - Triple Stream, Day/Night(ICR), BLC,HLC 2D / 3D- NR, Electronic Defog, WDR 120dB, Audio - Alarm - RJ45 100M - Protection IP67, IK10, TVS6000 - Ideal for outdoors.



Reference: SD50225DB-HC

Brand: Dahua

FIND INSTALLER

€548.73

€1,276.12 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


STARLIGHT PTZ CAMERA - 2MP- HDCVI - ARTIFICIAL INTELLIGENCE - ZOOM 25x 4.8-120MM - AUDIO - ALARM - DAHUA - SD50225DB-HC

Made by Setik

4in1 PTZ Starlight 2MP Dahua camera - SD50225DB-HC
2MP resolution - 4.8-120mm lens ( 25x zoom) - 1/2.8" CMOS sensor with Starlight technology (24/7 color vision) - Smart H.265+ - Triple Stream - Day/Night(ICR), BLC, HLC, 2D/3D-NR, Defog (electronic), WDR 120db
Audio : 1in/1out - Alarm : 2in/1out - RJ45 100M - Protection: IP67, IK10, TVS6000 - 24 month manufacturer's warranty.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

  • External AI ONVIF® camera - SD50225DB-HC
  • 2MP resolution
  • Motorized varifocal lens 4.8-120mm (25x optical zoom)
  • 1/2.8" CMOS sensor with Starlight Technology
  • Starlight Technology: 24/7 color night vision
  • Video Compression up to H.265+ Smart Codec
  • Triple Stream
  • Day/Night(ICR), BLC,HLC 2D / 3D-NR, Electronic Defog, WDR (120db) , 16x digital zoom
  • Alarm: 2 inputs and 1 output
  • Audio: 1 input and 1 output
  • Ethernet LAN RJ45 10/100 Base-T network interface
  • IP67 / IK10 / TVS6000 protection
  • Dimension: 253.0mm × Φ186.2mm
  • Weight: 2.5kg
  • Supported operating temperature: –40 °C to +60 °C
  • Power: 24 VDC/2.5 A ± 25%
  • 24 month warranty

Data sheet

SD50225DB-HC

Room

Image Sensor

1/2.8"CMOS

Pixels

2 MP

Max.Resolution

1920 (H) × 1080 (V)

ROM

128MB

RAM

512MB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

Alarm Event

Alarm input

Power

Power Supply

24VDC/2.5A ±25%

Power Consumption

Basic: 10.5W
Max.: 14W (PTZ)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤ 95%

Protection

IP67, IK10, TVS 6000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

253.0 mm × Φ186.2 mm (9.96" × Φ7.33")

Net Weight

2.5kg (5.51lb)

Gross Weight

4.5 kg (9.92 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

2MP 1080P FULL-HD resolution

This camera features a resolution of 2MP Full HD 1920x1080p

2MP resolution, means 5 times the resolution of a common D1 camera:
1/2.8" CMOS Full HD 1920x1080p progressive scan image sensor.

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+


1/2.8" CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.

With the SENSOR present, night shots will be clear and in color

Esempio di visione notturna in presenza di sensore con tecnologia starlight

32X optical zoom 25x Optical Zoom (4.8mm~120mm) + 16x Digital Zoom
Infrared illuminator

Generic PTZ Functions:
Pan/Tilt Range: Pan: 0°–360° endless Tilt: 0° to +90°, auto flip 180
Manual Control Speed: Pan: 0.1°/s–350°/s Tilt: 0.1°/s–250°/s???????
Preset Speed: Pan: 500°/s; Tilt: 500°/s
Presets : 300
PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour)

Full HDIt is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event
This camera has 2 alarm inputs and 1 alarm output
Ingresso Audio This camera has 1 Audio Input + 1 Audio Output
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA 2D / 3D-DNR
3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light.
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
Icon Function DEFOG This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Messa a fuoco automatica

This camera has automatic or manual focus

IP67 protection against dust and immersion Protection level IP67 (Dust / Immersion)
Ideal solution for video surveillance systems set up outdoors.

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

12V DC power supply

Diet:

24VDC/2.5A ±25%

Dual Encoding This product is covered by a 24 month warranty.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
