SD42C216DB-HC Dahua PTZ motorized outdoor camera 4in1 (HDCVI - HDTVI - AHD - ANALOG CVBS) , 2Megapixel FULL HD 1080P , with 16X optical zoom (5~80 mm) and 1/2.8" CMOS STARVIS™ sensor with Starlight. Day technology /Night, WDR 120dB , Idle motion, Defog, BLC, HLC, Audio, Alarm, RS485, IK10.
FIND INSTALLER
€397.65
€924.76 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

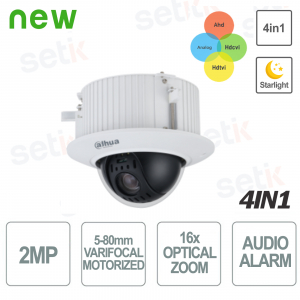

DAHUA MOTORIZED 2MEGAPIXEL OUTDOOR CAMERA STARLIGHT 4IN1 - 16X OPTICAL ZOOM
Day/Night - WDR 120dB - Audio Input - 2 Inputs + 1 Alarm Output - RS485
Without IR illuminator - 12V 3A DC power supply included - IP66 protection - 24 month warranty
Product details
- 4in1 outdoor dome motorized dahua camera (HDCVI - HDTVI - AHD - ANALOG CVBS)
- Resolution 2Megapixel FULL HD 1080P 25/30 fps @1080p; 25/30/50/60 fps @720
- 2MP Sony® STARVIS™ 1/2.8” CMOS image sensor
- Starlight Technology: Color night vision
- 5-80mm varifocal lens ( 15X optical zoom )
- Day/Night, BLC, HLC, 3D-NR, 2D-NR
- WDR 120dB
- 1 Audio Input
- 2 Alarm Inputs + 1 Alarm Output
- RS485 port
- IK10 protection
- TVS 6000V lightning protection
- Not equipped with IR illuminator
- Power supply 12 VDC, 3 A - power supply included
- Dimensions 158.4 mm × Φ198.0 mm
- 24 month warranty
Data sheet
| Model | SD42C216DB-HC |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Pixels | 2MP |
| Max.Resolution | 1920 (H) x 1080 (V) |
| ROM/RAM | 128MB / 256MB |
| Electronic Shutter Speed | 1/3 s–1/100000 s |
| Scanning System | Progressives |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE) |
| Lens | |
| Focal Length | 5mm~80mm |
| Max. Openings | F1.6–F2.8 |
| Field of View | H: 59.6°–5.4°; V: 34.6°–3.0°; D: 67.3°–6.2° |
| Optical Zoom | 16x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 1 m–1.5 m (3.28 ft–4.92 ft) |
| Iris Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: 0° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s |
| Preset Speed | Pan: 0.1°–300°/s; Tilt: 0.1°–200°/s |
| Presets | 300 |
| Tours | 8 (up to 32 presets per tour) |
| Patterns | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Presets/Tours/Patterns/Scanning |
| Protocol | DH-SD Pelco-P/D (auto recognition) |
| Video | |
| Resolution | 1080P (1920×1080); 720P (1280×720); D1 (704 × 576/704 × 480) |
| Frame Rate | 1080P (25/30 fps); 720P (25/30/50/60 fps) |
| Day/Night | Yes |
| BLC | Yes |
| WDR | 120dB |
| HLC | Yes |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/ Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Yes |
| S/N Ratio | ≥ 50 dB |
| Function | |
| CVI Product Output Mode | TVI; CVI; CVBS; AHD (CVBS is only used for debugging) |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Port | |
| Video Interface | 1 (CVBS/CVI output, BNC port) |
| Audio Interface | 1 (baud rate range: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Alarm Input | 2 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 |
| Alarm Linkage | Scan; presets; tours; pattern; alarm digital output |
| Alarm Event | Alarm input |
| Power | |
| Power Supply | 12 VDC, 3 A ± 10% |
| Power Consumption | Basic: 8W Max: 12W (PTZ) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95%RH |
| Protection | IK10; TVS 6000V lightning protection; surge protection |
| Structure | |
| Dimensions | 158.4 mm × Φ198.0 mm (6.24" × Φ7.80") |
| Net Weight | 2.3 kg (5.07 lb) |
| Gross Weight | 3.3 kg (7.28 lb) |
Further details
 |
This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time Analog , AHD , HDCVI and HDTVI .    |
 | This camera has a resolution of 2 Megapixels 1080P FULL HD: |
 | This camera features PAN (HORIZONTAL) and TILT (VERTICAL) rotation Pan: Pan: 0° ~ 360° Continue Tilt: 0° ~ + 90° auto flip 180° |
 | Equipped with 16X optical zoom (5-80mm) and 16X digital zoom |
| 1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | ULTRA 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light. |
 | HLC (High Light Compensation) allows for greater light management in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  |
 | This camera has 1 audio input |
 | It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 2 inputs + 1 alarm output |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | This product is covered by a 24 month warranty. |
