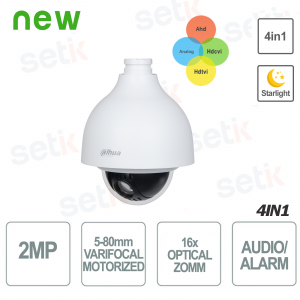

SD40215-HC-LA 4in1 Motorized Outdoor PTZ Dahua Camera (HDCVI - HDTVI - AHD - ANALOG CVBS) , 2Megapixel FULL HD 1080P , with 15X Optical zoom (5 ~ 75 mm) and 1 / 2.8 "CMOS STARVIS ™ sensor with Starlight technology . Day / Night, WDR 120dB , Motion Detection, EIS, Defog, BLC, HLC, Audio, Alarm, RS485, IP66, IK10 + Lightning protection
FIND INSTALLER
€413.38
€961.36 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DAHUA MOTORIZED 2MEGAPIXEL OUTDOOR CAMERA STARLIGHT 4IN1- 15X OPTICAL ZOOM
Dahua 4in1 Motorized Camera ( HDCVI - HDTVI - AHD - ANALOG CVBS )Day / Night - WDR 120dB - Audio Input - 2 Inputs + 1 Alarm Output - RS485
Without IR illuminator - 12V DC power supply included - IP66 / IK10 protection - 24 month warranty
Product details
- 4in1 outdoor dome motorized dahua camera (HDCVI - HDTVI - AHD - ANALOG CVBS)
- 2Megapixel FULL HD 1080P 25/30 fps @ 1080p resolution; 25/30/50/60 fps @ 720
- 2MP 1 / 2.8 ” Sony® STARVIS ™ CMOS image sensor
- Starlight technology: Color night vision
- 5-75mm varifocal lens ( 15X optical zoom )
- Day / Night, BLC, HLC, Ultra 3D-NR
- WDR 120dB
- 1 Audio Input
- 2 Alarm Inputs + 1 Alarm Output
- RS485 port
- IP66 protection (Rain / Dust) - Suitable for indoor / outdoor environments
- IK10 protection (Vandalism)
- TVS 6000V lightning protection
- Without IR illuminator
- 12V DC power supply - power supply included
- Dimensions 234 mm × Φ186 mm
- 24 months warranty
Data sheet
| Model | SD40215-HC-LA |
| Room | |
| Image Sensor | 1 / 2.8 "STARVIS ™ CMOS |
| Pixel | 2MP |
| Max. Resolution | 1920 (H) x 1080 (V) |
| ROM / RAM |
16 MB / 256 MB |
 |
This camera features PAN (HORIZONTAL) and TILT (VERTICAL) rotation Pan: Pan: 0 ° ~ 360 ° Continue Tilt: -2 ° ~ 90 ° auto flip 180 ° |
 |
Equipped with 15X optical zoom (5-75mm) and 16X digital zoom |
|
|
1 / 2.8 " STARVIS ™ CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (WDR multiple exposure, DOL-WDR) - Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2)
With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 |
OSD (On Screen Display): allows you to define masked areas, image correction, ATR, Day / Night sensitivity, shutter speed, white balance, light compensation and much more.
Example OSD menu
|
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
ULTRA 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light conditions. |
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc ...). It also prevents attempts to blur the image.  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with shots from the inside out, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 |
This camera has 1 audio input |
 |
It is extremely useful to have Inputs / Outputs in a CCTV system to be able to control relays or activate a recording following an event. This camera has 2 inputs + 1 alarm output |
 |
|
 |
IP66: guarantees the impossibility for dust to enter the camera and protection from jets of water of any kind (ex: rain)  |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
This product is covered by a 24 month warranty. |
