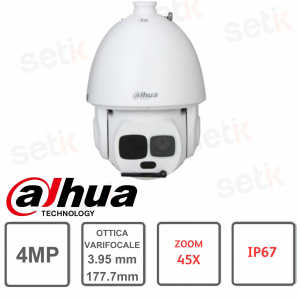

DAHUA PTZ 4MP CAMERA-OPTICS 3.95-177.7MM-ZOOM 45X-STARLIGHT-WITH AI

BEST PRICE -57%

SD6AL445GB-HNV-IR Dahua Outdoor PTZ ONVIF PoE IP camera with 4Megapixel resolution, varifocal motorized lens with 45X optical zoom (3.95-177.7mm), 1/2.8" Sony® CMOS sensor with Starlight Technology, IR 300m H.265+. Triple Stream, WDR 120dB, Autotracking 3.0, perimeter protection, Face Detection, RS-485, Audio, Alarm, MicroSD slot max 512GB, IP67 protection, TVS 6000V, Incorporates WIPER for cleaning the lenses.

Reference: SD6AL445GB-HNV-IR

Brand: Dahua

EAN: 6923172589576

FIND INSTALLER

https://www.setik.biz/en/cameras/10314-dahua-sd6al445gb-hnv-ir-camera-dahua-ptz-4mp-optics-395-1777mm-zoom-45x-starlight-with-ia.html

€1,509.27

€3,509.94 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

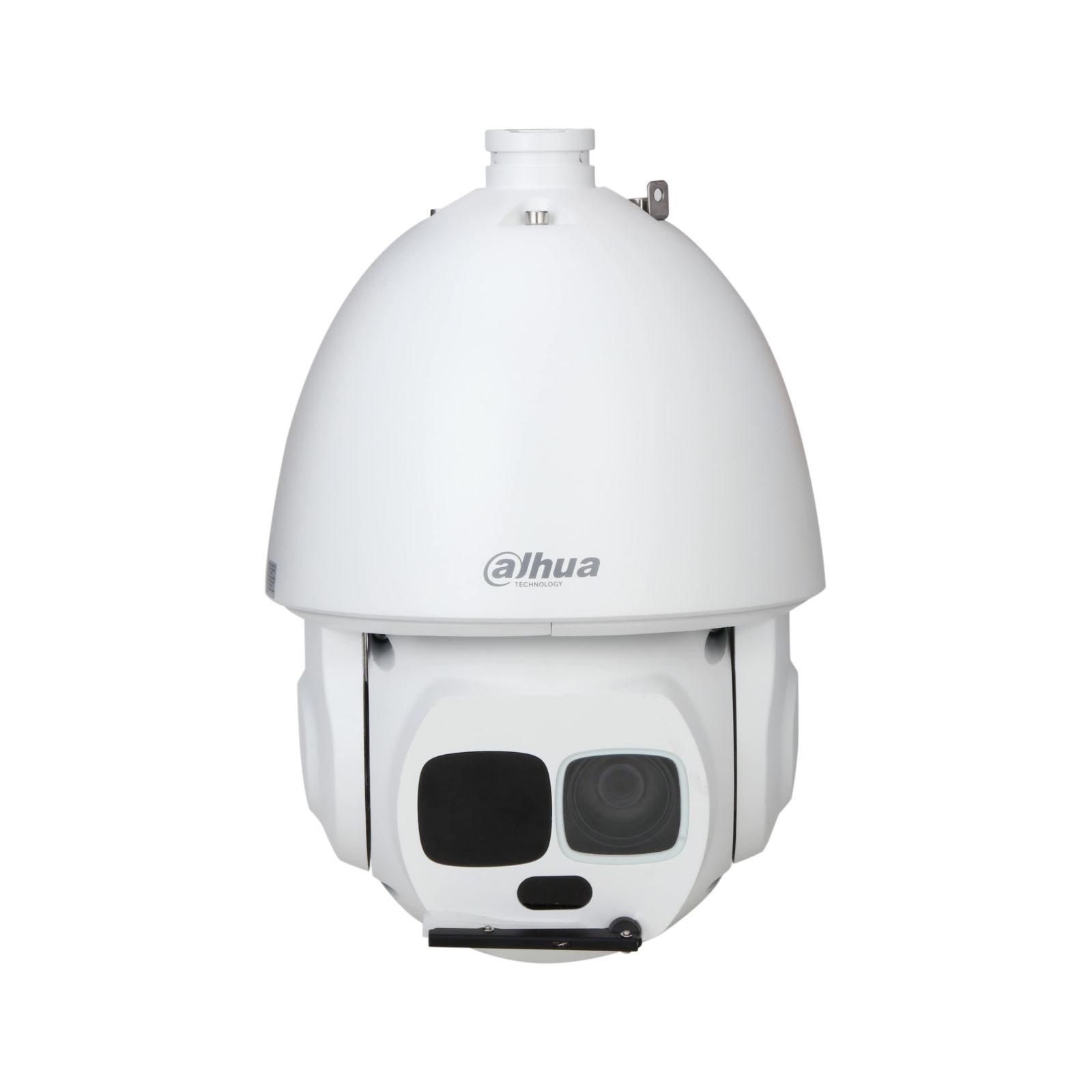

PTZ IP CAMERA 4MP OUTDOOR ONVIF® POE WITH ARTIFICIAL INTELLIGENCE - STARLIGHT

Dahua ONVIF® POE Dome PTZ IP camera
4Megapixel Resolution - 3.95mm~177.7mm Lens ( 45x zoom) - 1/2.8" Starlight CMOS Sensor
IR illuminator up to 300 meters - Perimeter Protection - Video Analysis - Auto Tracking - Audio/Alarm
Slot for Micro SD Card - IP67 protection - 24 month warranty

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

Telecamera videosorveglianza IP Dome PTZ PoE 4MP Motorizzata

External ONVIF® PoE AI IP camera - Dahua
4Megapixel resolution
Motorized varifocal lens 3.95mm~177.7mm (45x optical zoom)
1/2.8" Sony® STARVIS™ CMOS sensor with Starlight Technology
Starlight Technology: Color Night Vision!
Video Compression up to H.265+
Triple Stream
Incorporates WINDSCREEN WIPER for cleaning the lenses
Day/Night,BLC,HLC 2D / 3D-NR, Defog, EIS, WDR (120db)
Quality illuminator up to 300 meters .
- Artificial Intelligence: Perimeter Protection - AutoTracking - People and Vehicle Detection
Standard Video Analysis : Abandoned / lost objects
7 inputs and 2 alarm outputs
Remote viewing via DMSS
1 audio input and 1 audio output
1 microSD-Card slot (Max 512GB not included)
1 RS485 port
Pelco D/P and Dahua protocols with 300 presets, 5 patterns, 8 tours, 5 Auto scan
IP67 protection
Dimension: 382mm × Φ239.8mm (15.04" × Φ9.44")
24 month warranty

Data sheet

Room

Image Sensor

1/2.8" CMOS

Pixels

4MP

Max.Resolution

2560(H)×1440(V)

ROM

4GB

RAM

1 GB

Electronic Shutter Speed

1 s–1/30,000 s

Scanning System

Progressives

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR/laser light on)

Illumination Distance

300 m (984.25 ft)

Illuminator On/Off Control

Zoom first; Manual; Car; Off

Illuminator Number

7 (IR)

Wiper

Lens

Focal Length

3.95mm–177.7mm

Max. Openings

F1.6–F4.95

Field of View

H: 63.2°–1.8°; V: 37.6°–1.1°; D: 70.8°–2.1°

Optical Zoom

45×

Focus Control

Car; semi-auto; manual

Close Focus Distance

0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control

Car; manual; iris first

DORI Distance

Detect

Observe

Recognize

Identify

3,555 m (11,663.39 ft)

1,404.2 m (4,606.96 ft)

711 m (2,332.68 ft)

355.5 m (1,166.34 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –20° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Presets

300

Tours

8 (up to 32 presets per tour)

Patterns

Scan

Power-off Memory

Yes

Idle Motion

Patterns; Presets; Scan; Tours

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality face snapshots. Attribute extraction of motor vehicle is also supported, where 10 attributes can be detected

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking

Face Detection

Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots

Auto Tracking

Yes

SMD

SMD4.0

Quick Pick

Yes

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps)
Sub stream 1: D1/VGA/CIF@(1-25/30 fps)
Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 96kbps–14.848kbps
H.265: 38kbps–8.960kbps

Day/Night

Color; B/W; Car; Electronic

BLC

Yes

WDR

120dB

HLC

Yes

White Balance

Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Car; manual; gain first

Noise Reduction

2DNR; 3D NO

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

EIS

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&G&T)

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64M)

Storage

Micro SD card (512GB); FTP/SFTP; NAS

Browsers

IE 9 and later versions
Chrome 41 and later versions
Firefox 52 and later versions
Safari 10 and later versions

Management Software

DMSS;DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: E234884-A6503-IT-1 and 4789976478-2.4-1
FCC: 4790130386-1

Port

Alarm I/O

7/2

Audio I/O

1/1

RS-485

1 (baud rate: 1200 bps–115200 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT, bare wire)

Alarm Linkage

Capture; Recordings; send email; presets; tours; pattern; alarm digital input

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

36 VDC, 2.23 A ± 25%
HI-PoE

Power Consumption

Basic: 13W
Max: 27W (illuminator+PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

TVS 6000V lightning proof; surge protection; voltage

transient protection; IP67

Structure

Product Dimensions

382mm × Φ239.8mm (15.04" × Φ9.44")

Net Weight

6.8 kg (14.99 lb)

Gross Weight

9.2 kg (20.28 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE (IEEE 802.3af) PoE+ (IEEE 802.3at) (High-PoE)
	AI \| Artificial intelligence This camera features Artificial Intelligence on board This means it has a wide range of advanced features such as: - Perimeter protection: Intrusion, Line crossing - Motorized and non-motorized people and vehicle detection - Autotracking: The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.
	This camera features a resolution of 4Megapixels
	This camera is equipped with Tergioptic , useful for improving the view in case of rain.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	1/2.8" STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
	45x Optical Zoom (3.95mm~177.7mm) + 16x Digital Zoom
	Main stream: 4M/3M/1080p/1.3M/720p@(1-25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps)
	IR LED illuminator with maximum range up to 300 meters!
	This camera also provides VIDEO ANALYSIS / SMART DETECTION functions: - Recognition of lost and abandoned objects
	Pan/Tilt Range Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° Manual Control Speed Pan: 0.1°/s–200°/s Tilt: 0.1°/s–120°/s Preset Speed Pan: 240°/s; Tilt: 200°/s Presets 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Pattern; Presets; Scan; Tours PTZ Protocol DH-SD Pelco-P/D (Auto recognition)
	It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 7 inputs and 2 outputs
	This camera has 1 Audio Input + 1 Audio Output
	RS 485 for PTZ Commands (Remotely Controlled Cameras)
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	ULTRA 2D / 3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in the presence of low light and in movement. It is currently the most powerful solution for obtaining maximum results in the presence of low light.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
	This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable
	Possibility to insert Micro SD up to a maximum of 512GB (not included)
	This product is covered by a 24 month warranty.
