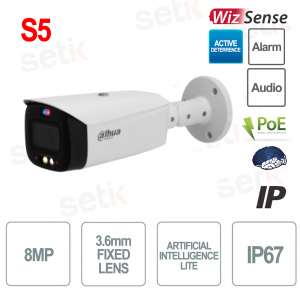

IPC-HFW3849T1-AS-PV-S5 Dahua AI Lite Wizsense Bullet IP camera external Onvif PoE , with Lite Artificial Intelligence , 8 Megapixel 8MP , 1/2.7" CMOS sensor Dual Illuminator 3.6mm fixed lens, compression up to H.265+ . Audio and Alarm, Active Deterrence, Day/Night, WDR 120dB, Perimeter Protection, Active Deterrence , ROI, MicroSD Slot , IP67 Protection, White Color S5 VERSION
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
OUTDOOR ONVIF® POE IP BULLET CAMERA - 8 MEGAPIXELS - LITE ARTIFICIAL INTELLIGENCE - AUDIO / ALARM - VIDEO ANALYSIS - S5 DAHUA
8Megapixel resolution - 3.6mm fixed lens - 1/2.7" CMOS Compression up to H.265+
Artificial Intelligence: Perimeter Protection (Line Crossing - Intrusion) One of the best bullet cameras
WIZSENSE TECHNOLOGY: |
Product details
- External PoE AI IP Bullet Camera - Dahua
- S5 VERSION
- WIZSENSE
- 8Megapixel 8MP resolution
- 3.6mm fixed lens
- 1/2.7" sensor
- Dual Illuminator
- Video compression up to H.265+
- Triple Stream
- WDR 120dB - Day/Night - 3DNR,AWB,AGC,BLC, ROI,
- SMD 4.0
- Audio: 1 In - 1 Out
- Alarm: 1 in - 1 Out
- Artificial Intelligence : Perimeter Protection, Intrusion (Vehicle / Human Detection)
- Active Deterrence
- Remote viewing with Smart PSS, DSS, DMSS
- Micro SD memory slot (Up to 256GB - not included)
- IP67 protection
- Material: Metal + Plastic
- White color
- Power supply NOT included
- 24 month warranty
Data sheet
| Model | IPC-HFW3849T1-AS-PV-S5 |
| Room | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 3840(H)×2160(V) |
| ROM/RAM | 256MB/ 2GB |
| Scanning System | Progressives |
| Electronic Shutter speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) |
| S/N Ratio | ﹥56dB |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed focus |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Field of View | H: 85; V: 45°; D: 102° |
| Iris Type | Fixed |
| Close Focus Distance | 2.2 m (7.22 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| TO SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codecs | Smart H.265+; Smart H.264+ |
| Ai Coding | AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%) |
| Video Frame Rate | Main stream: 3840 × 2160@(1 fps–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR; CBR; ABR |
| Video Bit Rate | H.264: 3kbps–16384kbps H.265: 3kbps–16384kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self Adaptation | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car; manual |
| Noise Reduction | 3D NO |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256G); NAS |
| Browsers | IE: IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1; |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 4.5W (12VDC); 5.8W (PoE) |
| Environment | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) ≤95% (RH), non-condensing |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) ≤95% (RH), non-condensing |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal + plastic |
| Colour | White |
| Dimensions | 288.4 mm × 94.4 mm × 84.7 mm (11.4" × 3.7" × 3.3") (L × W × H) |
| Net Weight | 1.0kg (2.20lb) |
| Gross Weight | 1.23 kg (2.71 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
| AI | Artificial intelligence - Perimeter protection: Intrusion, Line crossing (people&vehicle classification) |
 | Active Deterrence: Reports intruders, incorporates siren |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera has a resolution of 8 Megapixels |
 | This camera has a 3.6mm fixed lens |
 | Infrared illuminator with approximately maximum range of 30m. Double lighting: 2xIR and 2x warm light. |
1/2.7" CMOS sensor The camera features a large-aperture, high-performance 1/2.7" F1.0 lens. With increased light absorption and an advanced image processing algorithm, the camera features impressive low-light performance with an exceptional balance between noise reduction and moving object blur. | |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | With the intelligent algorithm, Dahua Smart Motion Detection technology can effectively recognize various types of targets. Precise and accurate alarm |
 | This camera features: 1 Audio Input and 1 Audio Output |
 | This camera features: 1 alarm input and 1 alarm output |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | Protection level IP67 (Dust / Immersion) |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
