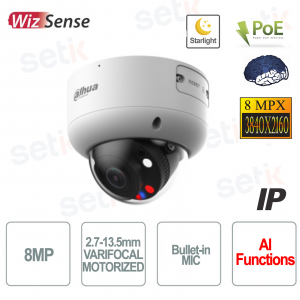

AI IP Camera ONVIF® PoE 8MP Motorized double IR WDR - S5 - Dahua

AI IP Camera ONVIF® PoE 8MP Motorized double IR WDR - S5 - Dahua
-57%

IPC-HDBW3849R1-ZAS-PV-S5 S5 Version Outdoor ONVIF PoE IP camera - Dahua AI Lite Series, 8 Megapixel Resolution, 2.7 ~ 13.5 mm motorized zoom lens, 1/2.8" CMOS . Active deterrence, compression up to H .265+, double IR illuminator 2 LEDs 50M 2 warm light 40M - Day/Night (ICR), WDR 120dB - ROI - 512GB MicroSD Slot, Smart Motion Detection (SMD) Artificial Intelligence: Perimeter Protection (Line crossing - Intrusion)



Reference: IPC-HDBW3849R1-ZAS-PV-S5

Brand: Dahua

FIND INSTALLER

€438.57

€1,019.92 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


OUTDOOR ONVIF® POE IP CAMERA - 8 MEGAPIXEL MOTORIZED | ARTIFICIAL INTELLIGENCE - S5 - DAHUA

Dahua
Outdoor ONVIF® PoE IP camera - Dahua AI Lite Series - S5
Resolution 8Megapixel - Optics 2.7 ~ 13.5 mm motorized zoom - CMOS 1/2.8" Starlight - Compression up to H.265+
Double IR illuminator 2 LEDs 50M 2 warm light 40M- Day/Night (ICR) - WDR 120dB - ROI - 512 GB MicroSD slot - Smart Motion Detection (SMD)
Artificial Intelligence: Perimeter Protection (Line crossing - Intrusion)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

IPC-HDBW3849R1-ZAS-PV-S5 Telecamera AI IP ONVIF® PoE 8MP Motorizzata

  • PoE external AI IP camera - Dahua - S5
  • 8Megapixel 8MP resolution
  • 2.7-13.5mm varifocal lens with motorized zoom
  • 1/2.8” sensor
  • Active deterrence
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC, ROI,
  • Double IR illuminator 2 LEDs 50MT 2 warm light 40M
  • Artificial Intelligence : Perimeter Protection, Intrusion (Vehicle / Human Detection)
  • Remote viewing with Smart PSS, DSS, DMSS
  • Micro SD memory slot (Up to 512GB - not included)
  • IP67 / IK10 protection (indoor/outdoor)
  • Material: Metal
  • Power supply NOT included
  • 24 month warranty

Data sheet

Model IPC-HDBW3849R1-ZAS-PV-S5
Room
Image Sensor 1/2.8”
Effective Pixels 3840(H)×2160(V)
ROM/RAM 256MB/2GB
Scanning System Progressives
Electronic Shutter speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

S/N Ratio

>56 dB

IR Distance 50 m (164.04 ft) (IR)
40 m (131.23 ft) (warm light)
IR On/Off Control Auto/Manual
IR LEDs 2 (IR LED)
2 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Mount Type φ16
Focal Length 2.7mm–13.5mm
Max. Openings F1.0
Field of View Horizontal: 108°–34° Vertical: 56°–19° Diagonal: 130°–39°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and
motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models)
TO SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate

Main stream: 3840 × 2160@(1fps–30fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream:1920 × 1080@(1fps–30fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

CBR/VBR/ABR

Video Bit Rate H.264:3kbps–16384kbps
H.265:3kbps–16384kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car; manual
Noise Reduction 3D NO
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart IR Yes
Defog yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK & API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64M)
Edge Storage

FTP; SFTP; Micro SD card (support max. 512G); NAS

Browsers IE: IE9/11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Smartphones iOS; Android
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption

Basic: 4.5W (12VDC); 5.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.9 W (12 VDC); 10.3W (PoE)

Environment
Operating Conditions –30 °C to +60 °C (–22 °F to +140 °F) ≤95% (RH), non-condensing
Storage Conditions –40 °C to +60 °C (–40 °F to +140 °F) ≤95% (RH), non-condensing
Ingress Protection IP67, IK10
Structure
Casing Metal
Dimensions 105 mm × Φ126.0 mm (4.13" × Φ4.96")
Net Weight 0.73 kg (1.61 lb)
Gross Weight 0.9kg (1.98lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

AI | Artificial intelligence
This camera features Artificial Intelligence on board

- Perimeter protection: Intrusion, Line crossing (people&vehicle classification)
-Intelligent Search

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 8Mpx

This camera features a resolution of 8 Megapixels!

Ottica varifocale con zoom motorizzato

2.7-13.5mm varifocal lens with motorized zoom

Motorized zoom example:

Illuminatore IR LED

Quality 2 LED IR illuminator for better night vision.
Maximum range 50 meters

2 (IR LED) 2 (warm light)

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Full HD

Remote visibility on mobile using the Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

MicroSD Recording

Possibility of inserting a Micro SD up to a maximum of 512Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee icon This product is covered by a 24 month warranty.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
