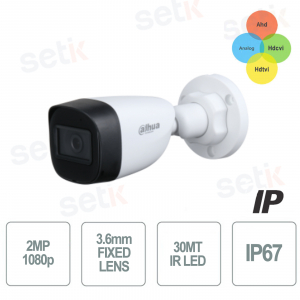

Dahua HDCVI outdoor surveillance camera Dahua HAC-HFW1200C-S6 , S6 bullet VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE, 1080P FULL-HD 2MP , 3.6mm optics and 2 MP CMOS image sensor. Smart IR illuminator 2 LEDs 30M, IP67 protection, CVBS output, Day/Night (ICR), Multilingual OSD menu, plastic
https://www.setik.biz/en/cameras/10294-dahua-hac-hfw1200c-s6-outdoor-camera-hdcvi-2mp-4in1-36mm-ir-30m-s6-dahua.html
€32.28
€76.86 -58%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
4IN1 BULLET CAMERA HDCVI / HDTVI / AHD / ANALOG 2MEGAPIXEL 3.6MM - IR 30 METERS - S6 VERSION - DAHUA
HD CVI 4in1 outdoor camera - Dahua
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 1080P FULL HD - 3.6mm fixed lens
IR illuminator 2 LEDs 30M - Day/Night(ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 1080P FULL HD - 3.6mm fixed lens
IR illuminator 2 LEDs 30M - Day/Night(ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty
Product details
- S6 VERSION
- HDCVI 4in1 outdoor camera - Dahua
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Technologies switchable via OSD Menu or UTC Controller (not included)
- Resolution: 2Megapixel 2MP FULL HD 1080P
- 3.6mm Fixed Lens
- 2 MP CMOS image sensor
- Day/Night(ICR), BLC, HLC, AGC, DWDR
- Smart IR illuminator 2 LEDs 30MT
- Video Output: 1 Channel BNC high definition / CVBS video output (interchangeable)
- 12V DC power supply (not included)
- IP67 protection (Dust / Immersion) - Suitable for indoor / outdoor environments
- Material: Plastic
- Dimension: 161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75")
- 24 month warranty
Data sheet
| Model | HAC-HFW1200C-S6 |
| Room | |
| Image Sensor | 2MP CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Scanning System | Progressives |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s |
| S/N Ratio | >65dB |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Car |
| Illuminator Number | 2 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed focus |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max. Openings | F2.0 |
| Field of View | H: 83°; V: 48°; D: 104° |
| Iris Type | Fixed |
| Close Focus Distance | 0.7 m (2.30 ft) |
| Video | |
| Frame Rate | CVI: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Car; White balance area |
| Gain Control | Car |
| Noise Reduction | 3D NO |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1; |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 2.8W (12VDC, IR on) |
| Environmental | |
| Operating Consumption | -40°C to +60°C (-40°F to 140°F); <95% (noncondensation) |
| Storage conditions | -40°C to +60°C (-40°F to 140°F); <95% (noncondensation) |
| Ingress Protection & Vandal Resistance | IP67 |
| Construction | |
| Casing | Plastic |
| Dimensions | 161.3mm×69.7mm×70.0mm（6.35"×2.75"×2.75"） |
| Net Weight | 0.19 kg (0.55 lb) |
| Gross Weight | 0.29 kg (0.64 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time Analog , AHD , HDCVI and HDTVI .    |
 | 2MP resolution, means 5 times the resolution of a common D1 camera: |
 | This camera is equipped with a 3.6mm fixed lens |
 |
Infrared illuminator with REAL range up to 30MT for night vision. |
 | It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically. |
 | THE IR CUT FILTER IS A MECHANICAL FILTER THAT ALLOWS CORRECT DISPLAY OF IMAGES IN DAYTIME VIEWING CONDITIONS, FILTERING THE TYPICAL INFRARED FREQUENCIES, THUS IMPROVING THE QUALITY OF THE IMAGE. IN NIGHT-TIME CONDITIONS THE FILTER IS REMOVED AS IT IS NECESSARY TO CAPTURE THE TYPICAL IR FREQUENCIES. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  |
 | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 | Protection level IP67 (Dust / Immersion) |
 | This camera requires 12V DC power supply for operation. Power supply NOT included!  |
 | This camera has a plastic body |
 | This product is covered by a 24 month warranty. |
