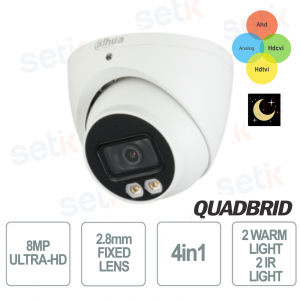

Dahua HAC-HDW1801T-IL-A-S2 outdoor camera with 4 technologies in 1: CVI/CVBS/AHD/TVI , 8Megapixel 4K ULTRA-HD resolution, 2.8mm fixed optics 4K CMOS sensor. Double Smart IR illuminator up to 40MT, WDR 120dB, NR 3D, Day/Night (ICR), Defog, Built-in microphone , IP67 protection
FIND INSTALLER
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA DOME CAMERA 4IN1 "CVI/CVBS/AHD/TVI" 8MEGAPIXEL 4K ULTRA-HD - MICROPHONE - DAHUA
CMOS 4K - Day/Night(ICR), NR 3D, WDR 120dB - Built-in microphone - Double IR illuminator 40 meters
Power supply not included - 24 month warranty
Product details
- 4 Technologies in 1: CVI/CVBS/AHD/TVI
- 2.8mm Fixed Lens
- Day/Night(ICR), BLC / HLC, Defog, NR 3D
- Ultra WDR 120dB
- Double 40M IR illuminator
- IP67 protection (Dust / Immersion)
- 12 VDC ± 30% power supply not included
- Dimensions: φ106.0mm × 99.2mm (φ4.17" × 3.91")
- 24 month warranty
Data sheet
| Model | HAC-HDW1801T-IL-A-S2 | |
| Room | ||
| Image Sensor | 4K CMOS | |
| Effective Pixels | 3 840(H)×2160(V) | |
| Scanning System | Progressives | |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | |
| Minimum illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) | |
| S/N Ratio | >65 dB | |
| Illumination Distance | IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft) | |
| IR On/Off Control | Auto / Manual | |
| Illuminator Number | 2 (Warm light); 2 (IR light) | |
| Pan/Tilt/Rotation Range | Pan: 0°-360° | |
| Lens | ||
| Lens Type | Fixed focus | |
| Mount Type | M12 | |
| Focal Length | 2.8mm | |
| Max openings | F2.0 | |
| Angle of view | H: 106°; V: 56°; D: 125° | |
| Iris Type | Fixed | |
| Close Focus Distance | 1.3 m (4.27 ft) | |
| Video | ||
| Video Frame Rate | CVI: PAL: 4K@15fps; 5M@25fps; 4M@25fps; 1080p@25fps NTSC: 4K@15fps; 5M@25fps; 4M@30fps; 1080p@30fps AHD: PAL: 4K@15fps NTSC: 4K@15fps TVI: PAL: 4K@15fps NTSC: 4K@15fps CVBS: PAL: 960H NTSC: 960H | |
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC | BLC; HLC; WDR; HLC-Pro | |
| WDR | 120dB | |
| White Balance | Car; White balance area | |
| Gain Control | Car; manual | |
| Noise Reduction | 3D NO | |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode | |
| Electronic Defog | Yes | |
| Defog | Electronic defog | |
| Mirror | Yes | |
| Privacy Masking | Off/On (8 area, rectangle) | |
| Certifications | ||
| Certifications | CE-LVD: EN 62368-1; | |
| Port | ||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Audio Input | One channel built-in MIC | |
| Power | ||
| Power Supply | 12V±30% DC | |
| Power Consumption | Max 5.7 W (12 VDC, LED on) | |
| Environmental | ||
| Operating Conditions | -40°C to +60°C (-40°F to 140°F); | |
| Storage Conditions | -40°C to +60°C (-40°F to 140°F); | |
| Ingress Protection | IP67 | |
| Anti-corrosion Level | Low | |
| Construction | ||
| Casing | Metal | |
| Dimensions | φ106.0 mm × 99.2 mm (φ4.17" × 3.91") | |
| Net Weight | 0.47 kg (1.04 lb) | |
| Gross Weight | 0.69 kg (1.52 lb) | |
| Installation | Wall mount; ceiling mount; vertical pole mount | |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) |
 | New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
 | This camera features a resolution of 8Megapixels 4K ULTRA-HD |
| This camera is equipped with a 2.8mm fixed lens |
 | Infrared illuminator with 1 LED Maximum range of 40 meters This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object framed. |
 | This camera is equipped with an on-board microphone |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Allows you to adapt the lens to Night/Day vision
|
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
Protection level IP67 (Dust / Immersion) |
 | A 12V DC power supply is required to operate this camera (not included)  |
 | This product is covered by a 24 month warranty. |
