Dahua - Dome camera - Outdoor - HAC-HDBW1200EA-S6 - S6 version - 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable - 2MP Full-HD 1920x1080p resolution - 2.8mm fixed lens - 2MP CMOS - Smart IR 3 illuminator LED 40m , DWDR , Day/Night (ICR), BLC, HLC, 3DNR - IP67 outdoor protection and IK10 protection against vandalism - Metal body - Basic anti-corrosion protection.
https://www.setik.biz/en/cameras/10292-dahua-hac-hdbw1200ea-s6-4in1-2mp-external-vandal-proof-dome-camera-28mm-fixed-s6-version.html
€52.98
€123.22 -57%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

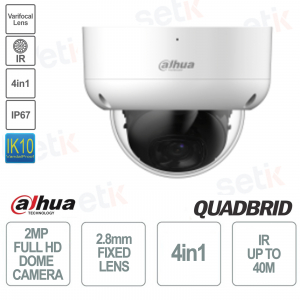

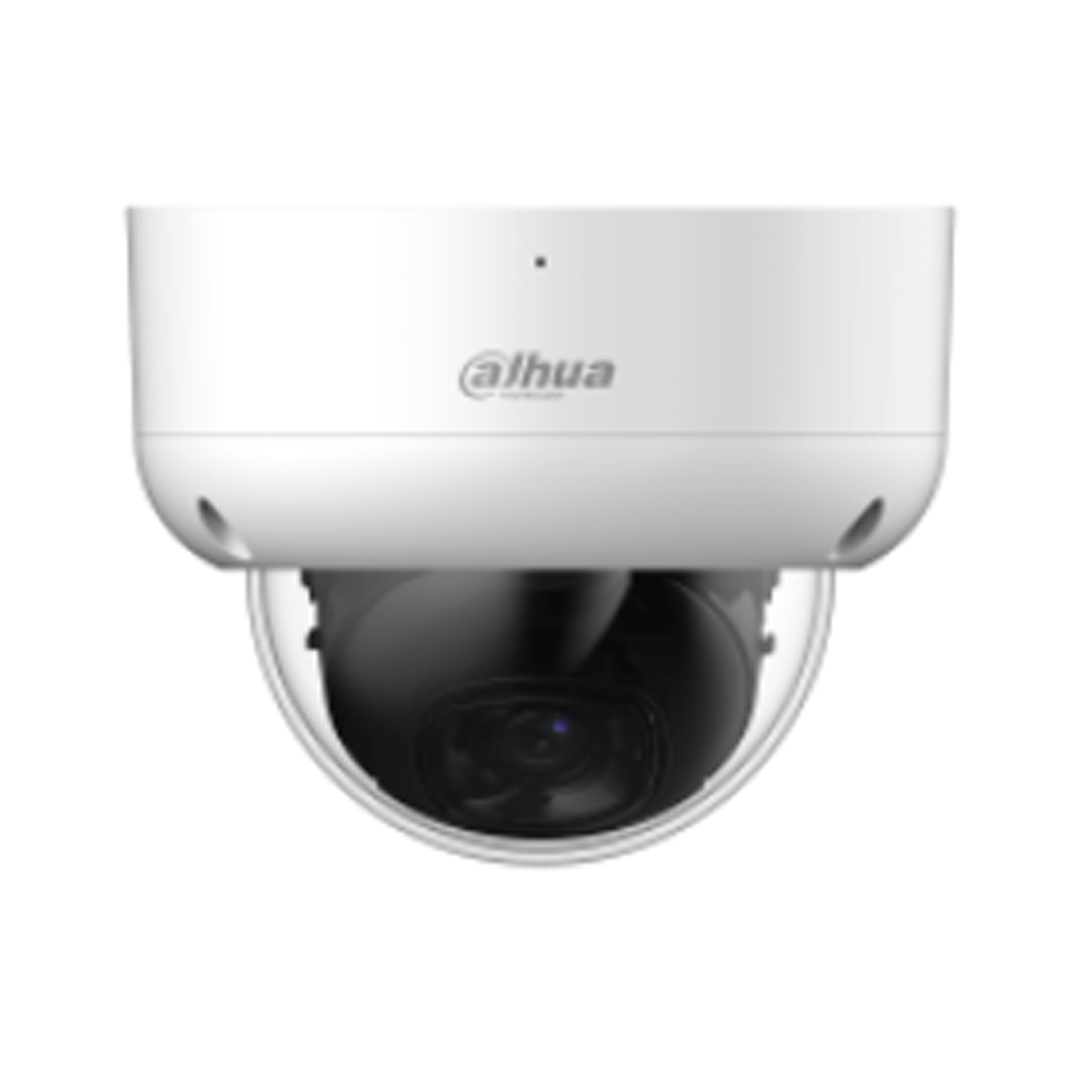

DOME CAMERA - DAHUA - 2MP FULL HD - 2.8MM - 4IN1 CVI CVBS AHD TVI - DWDR - SMART IR 40M - IP67 / IK10 PROTECTION - S6 VERSION - HAC-HDBW1200EA-S6
Dahua 4in1 Dome outdoor camera - S6 version - HAC-HDBW1200EA-S6 - 4 switchable technologies in 1: HDCVI / HDTVI / AHD / ANALOG - 2MP Full-HD 1920x1080p - 2.8mm fixed lens (without autofocus) - 2MP CMOS - Smart IR 3 LEDs 40m - Day/Night (ICR) - DWDR - BLC/HLC/3DNR/Mirror/Privacy - Metal body - IP67 outdoor protection and IK10 protection against vandalism - Ideal for video surveillance systems set up in outdoor environments - Power supply NOT included - 24 month warranty.
Product details
- Outdoor surveillance camera - Dahua - HAC-HDBW1200EA-S6
- S6 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Resolution: 1920 (H) × 1080 (V)
- 2MP CMOS image sensor
- 2.8mm fixed lens
- Functions: Day/Night(ICR), BLC, HLC, AGC, 3DNR
- DWDR
- 3 LED Smart IR illuminator up to 60m
- Choice of CVI / TVI / AHD / ANALOG video output via 1 BNC port
- Power supply: 12 VDC ± 30%
- Suitable for outdoor and indoor environments
- Metal casing
- Protection: IP67 (indoor/outdoor)
- Metal casing
- Protection: IP67 (indoor/outdoor)
- Protection: IK10 against vandalism
- Size: Φ112.0mm × 89.1mm
- Weight: 0.44 kg
- Operating temperature: –40 °C to +60 °C
- Basic anti-corrosion protection
- 24 month manufacturer's warranty
Data sheet
| MODEL | HAC-HDBW1200EA-S6 |
| ROOM | |
| Image Sensor | 2MP CMOS |
| Max.Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressives |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30s–1/100000s |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Car |
| Illuminator Number | 3 (IR light) |
| Angle Adjustment | Pan: 0°–355° Tilt: 0°–80° Rotation: 0°–355° |
| LENS | |
| Lens Type | Fixed focus |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Openings | F2.0 |
| Field of View | H: 102°; V: 60°; D: 129° |
| Iris Control | Fixed |
| Close Focus Distance | 0.5 m (1.64 ft) |
| VIDEO | |
| Video Frame Rate | CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Car; White balance area |
| Gain Control | Car |
| Noise Reduction | 3D NO |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| CERTIFICATION | |
| Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B; UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
| PORT | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| POWER | |
| Power Supply | 12VDC ±30% |
| Power Consumption | Max 2.8W (12VDC, IR on) |
| ENVIRONMENT | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperatures | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IK10; IP67 |
| STRUCTURES | |
| Casing Material | Metal |
| Product Dimensions | Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51") |
| Net Weight | 0.44 kg (0.97 lb) |
| Gross Weight | 0.62 kg (1.37 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) | |
 | 2MP resolution | |
 | This camera features a 2.8mm motorized varifocal lens | |
 |
Infrared illuminator with 3xLEDs and approximate maximum range of 40m. | |
 | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  | |
 | Allows you to adapt the lens to Night/Day vision
| |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  | |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light.  | |
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations | |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | |
 | Protection level IP67 (Dust / Immersion) | |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
| |
 |
| |
 | 12VDC power supply not included  | |
 | This product is covered by a 24 month warranty. |
