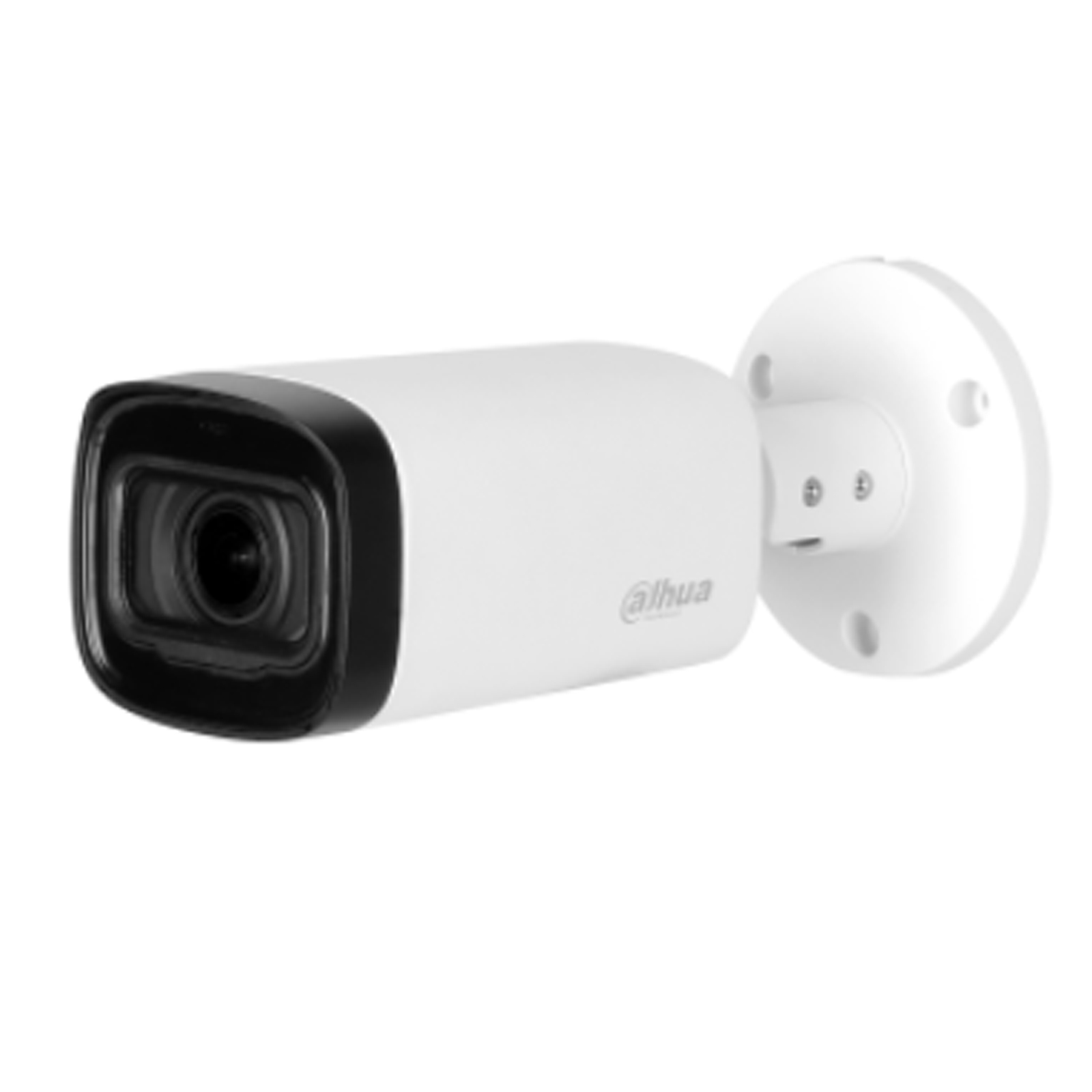

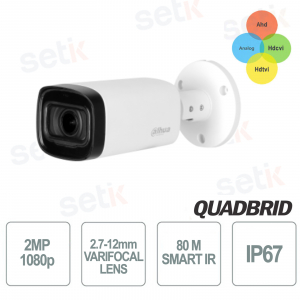

Dahua HAC-HFW1200R-Z-S6 HD CVI outdoor surveillance camera, S6 bullet VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, 1080P FULL-HD 2MP , 2.7 mm–12 mm optics and image sensor 2MP CMOS. Smart IR illuminator 4 LEDs 80M, IP67 protection, Day/Night (ICR), Multilingual OSD menu, Metal
https://www.setik.biz/en/cameras/10291-dahua-hac-hfw1200r-z-s6-outdoor-camera-version-s6-hd-cvi-2mp-4in1-27-12mm-ir-dahua.html
€86.03
€200.08 -57%
taxes included
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
4IN1 HDCVI / HDTVI / AHD / ANALOG FULL HD BULLET CAMERA - S6 VERSION - DAHUA
HD CVI 4in1 outdoor camera - S6 version -
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE - 1080P 2MP FULL HD resolution
IR illuminator 4 LEDs 80M - Day/Night(ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE - 1080P 2MP FULL HD resolution
IR illuminator 4 LEDs 80M - Day/Night(ICR), BLC / HLC / DWDR / AGC
IP67 protection (Dust/immersion) - 12V DC power supply (not included) - 24 month warranty
Product details
- HD CVI 4in1 outdoor camera - Dahua
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOGUE
- Technologies switchable via OSD Menu or UTC Controller (not included)
- Resolution: 2Megapixel 2MP FULL HD 1080P
- Motorized various focal length optics 2.7-12mm
- 2MP CMOS image sensor
- Day/Night(ICR), BLC, HLC, AGC, DWDR
- Smart IR illuminator 4 LEDs (80 M)
- OSD Multilingual menu
- Video Output: 1 Channel BNC high definition / CVBS video output (interchangeable)
- 12V DC power supply (not included)
- IP67 protection (Dust / Immersion) - Suitable for indoor / outdoor environments
- Material: Plastic
- Dimension: 209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56")
- 24 month warranty
Data sheet
| Model | HAC-HFW1200R-Z-S6 |
| Room | |
| Image Sensor | 2MP CMOS |
| Effective Pixels | 1920(H)×1080(V) |
| Scanning System | Progressives |
| Electronic Shutter Speed | PAL: 1/25s–1/100000s |
| Min. Illumination | 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65dB |
| IR Distance | 80 m (262.47 ft) |
| IR On/Off control | Car |
| Illuminator Number | 4 (IR light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Auto Focus | No |
| Lens Mount | φ14 |
| Focal Length | 2.7mm–12mm |
| Max Openings | F1.6 |
| Field Of View | H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° |
| Iris Control | Fixed |
| Close focus distance | 0.8 m (2.6 ft) |
| Video | |
| Frame Rate | CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps; TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Car; White balance area |
| Gain Control | Car |
| Noise Reduction | 3D NO |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 area, rectangle) |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1; |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 9.4W (12VDC, IR on) |
| Environmental | |
| Operating Consumption | –30 °C to +60 °C (–22 °F to +140 °F); <95% (noncondensation) |
| Storage conditions | –30 °C to +60 °C (–22 °F to +140 °F); <95% (noncondensation) |
| Ingress Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Dimensions | 209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56") |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.76 kg (1.68 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
Further details
 | This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time Analog , AHD , HDCVI and HDTVI .    |
 | 2MP resolution, means 5 times the resolution of a common D1 camera: |
 | This camera is equipped with a 2.7-12mm motorized varifocal lens |
|
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD Menu is multi-language |
 | 4 LED infrared IR illuminator with a range of approximately 80 metres
|
 | It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically. |
 | THE IR CUT FILTER IS A MECHANICAL FILTER THAT ALLOWS CORRECT DISPLAY OF IMAGES IN DAYTIME VIEWING CONDITIONS, FILTERING THE TYPICAL INFRARED FREQUENCIES, THUS IMPROVING THE QUALITY OF THE IMAGE. IN NIGHT-TIME CONDITIONS THE FILTER IS REMOVED AS IT IS NECESSARY TO CAPTURE THE TYPICAL IR FREQUENCIES. |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations  |
 | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
 | Protection level IP67 (Dust / Immersion) |
 | This camera requires 12V DC power supply for operation. Power supply NOT included!  |
 |
This camera is made of metal |
 | This product is covered by a 24 month warranty. |
