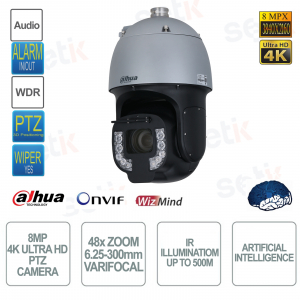

ONVIF 8MP 4K ULTRA HD PTZ IP Camera - 48x Zoom - 6.25-300mm IR 500m - Artificial Intelligence

ONVIF 8MP 4K ULTRA HD PTZ IP Camera - 48x Zoom - 6.25-300mm IR 500m - Artificial Intelligence
-57%

SD8C848PA1-HNF - Dahua Outdoor PoE ONVIF PTZ IP Camera - Supports PoE - 8MP 3840x2160p Resolution with Artificial Intelligence, 6.25-300mm Optics (48x Zoom), 8MP 1/1.8" CMOS sensor with Starlight Technology . 10 LED IR illumination up to 500m - Codec up to H.265+, Triple Stream, Day/Night (ICR), WDR 120dB, Defog , ROI, Wiper, Autotracking, Video metadata - PFA Technology - LAN RJ45 - RS485 - Audio + Alarm - Micro SD slot up to 512GB (not included) - IP67 and TVS8kV protection - Ideal for video surveillance systems set up outdoors.



Reference: SD8C848PA1-HNF

Brand: Dahua

FIND INSTALLER

€4,020.01

€9,348.86 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


PTZ OUTDOOR IP CAMERA ONVIF® HI-POE - 8MP 4K ULTRA HD - IR 500M - ARTIFICIAL INTELLIGENCE - 48x ZOOM 6.25-300MM - DAHUA - SD8C848PA1-HNF

Made by Setik

ONVIF IP PTZ Camera - Dahua AI Series - SD8C848PA1-HNF
8MP 3840x2160p resolution, 48x optical zoom (6.25-300mm) - 16x digital zoom - 1/1.8" Starlight CMOS sensor - 10 LED 500m IR illuminator - H.265+ - Day/Night(ICR) - Triple Stream - BLC - HLC - ROI - Defog - WDR 120dB - Video Analysis - Bi-directional audio - 1in/1out audio - 7in/2out alarm - Windshield wiper - MicroSD slot up to 512GB (not included) - RS-485 - RJ45 - IP67 / TVS8kV protection - Artificial intelligence : Face Detection - Perimeter Protection - Metadata) - 24 Month Manufacturer's Warranty.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the artificial intelligence used is that which allows the creation of advanced devices for environmental analysis.

Product details

Telecamera Videosorveglianza Dome Motorizzata 8MP  4K ULTRA-HD IR 500MT
  • ONVIF IP Outdoor Starlight PTZ Camera - AI Series - Dahua - SD8C848PA1-HNF
  • 8MP resolution, 4K ULTRA HD
  • 1/1.8" CMOS sensor with 8MP 4K ULTRA HD 3840x2160p Starlight Technology
  • Starlight: Thanks to the sensor, color shooting even at night!
  • Wiper
  • Triple Stream
  • 48x Optical Zoom (6.25-300mm) + 16x digital zoom
  • Video compression up to H.265+
  • ULTRA WDR (120dB) - Defog (optical), ROI, Day/Night(ICR), Auto Focus
  • Artificial Intelligence: Face detection - Perimeter protection - Metadata
  • Auto Tracking function: (Automatic zoom on single, multiple or panoramic scene)
  • 10 LED IR illuminator up to 500 meters!
  • Audio: 1 in / 1 out
  • Alarm: 7 inputs and 2 outputs
  • BNC video output
  • RS485 port
  • IP67 protection (Dust / Immersion) / Ideal outdoor camera
  • 8KV lightning protection
  • MicroSD slot (512GB - not included)
  • Dimensions: 442mm × Φ262mm
  • Operating temperature: –40 °C to +70 °C
  • Product net weight: 10.3Kg
  • 24 month warranty

Data sheet

SD8C848PA1-HNF

Room

Gross Weight

12.5 kg (27.56 lb)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera complies with the ONVIF® standard

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means it has a wide range of advanced features such as:

- Auto tracking
- Face detection Distinguishes the face from all other objects in the image

- Perimeter protection: Intrusion, line crossing (classification of people & vehicles), filters false alarms caused by animals, rustling leaves, bright lights etc...
- Metadata

AI Camera - Rilevamento volto

This camera has an 8Mpx 3480x2160 resolution

This camera features a resolution of 8 Megapixels, 4K ULTRA HD

3840x2160p, progressive scan

Supported resolutions: 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

4K Ultra HD Resolution New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
Starlight

1/1.8" STARLIGHT technology sensor.

Low brightness, color vision even in night mode

Starvis logo

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixels

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity near an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when you enter night mode, color vision becomes black/white.


With the SENSOR present, night shots will be clear and in color



This camera is equipped with Tergioptic , useful for improving the view in case of rain.


Triple Stream :

Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1-25/30 fps)
Sub stream 2: 1080p/960p/720p (1-25/30 fps)

This camera features the AUTO TRACKING function.
The system will identify objects moving in a specific video-surveillance area and will automatically enlarge it for a better view of the tracked object.


IR illuminator 20 MT

This camera is equipped with 10 LED lighting with a maximum range of up to 500 meters!

32X optical zoom 48x Optical Zoom (6.25-300mm ) + 16x Digital Zoom

This camera is equipped with Tergioptic , useful for improving the view in case of rain.

Infrared illuminator

Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:
Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –20° to +90°
Manual Control Speed: Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s
Preset Speed: Pan: 0.1°/s–200°/s; Tilt: 0.1°/s–60°/s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour(up to 32 presets per tour) 5 Scan
Power off memory: Yes
Idle Motion: Preset; Tours; Patterns; Scan
Protocol: DH-SD Pelco-P/D (auto recognition)

Full HD It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event
This camera has 7 inputs and 2 alarm outputs.
Ingresso Audio This camera has 1 Audio Input + 1 Audio Output.
Dual Encoding RS 485 for PTZ Commands (Remotely Controlled Cameras)
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Icon Function DEFOG Latest function present ONLY in Sony Effio-V, allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
ULTRA WDR up to 120dB.
WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
Immagine esempio funzione WDR 120db
MicroSD Recording

Possibility to insert Micro SD (512GB - not included )

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Warranty This product is covered by a 24 month warranty.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
