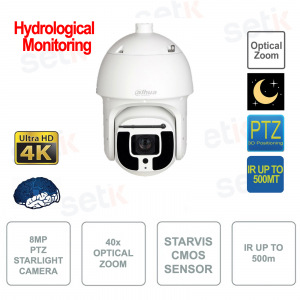

SD8A840XA-HNP-WP - Hi-PoE ONVIF® IP hydrological camera - PTZ AI Starlight - 8MP - 40x zoom 5.5-220 mm - Video analysis - Dahua
SD8A840XA-HNP-WP - Dahua Outdoor PoE ONVIF PTZ IP Camera - Supports PoE - 4K ULTRA-HD 8MP Resolution with Artificial Intelligence, 5.5 -220 mm Optics (40x Zoom), 1/1.8" Sony STARVIS CMOS sensor with Starlight Technology . IR lighting 10 LEDs 250M. Pressure up to H.265+, Day/Night (ICR), WDR, Defog, ROI, EIS , Wiper, Hydrological monitoring, Video Analysis , PFA Technology, LAN RJ45, RS485, Audio, Alarm, Slot Micro SD up to 256GB (not included), IP67 protection, TVS 8000 V.
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
PTZ OUTDOOR IP CAMERA ONVIF® POE - 4K ULTRA-HD 8MEGAPIXEL - ARTIFICIAL INTELLIGENCE - HYDROLOGICAL MONITORING - DAHUA - SD8A840XA-HNP-WP
![Made by Setik width= Made by Setik](https://www.setik.biz/img/m/13-prod_large.jpg)
ONVIF® PoE IP PTZ Camera - Dahua AI Series - SD8A840XA-HNP-WP
4K ULTRA-HD 8Megapixel Resolution, 40x Optical Zoom (5.5-220 mm) - Hydrological Monitoring - 16x Digital Zoom - 1/1.8" Sony STARVIS Starlight CMOS Sensor - 10 LED 250M IR Illuminator - Day/Night (ICR) - Triple Stream - BLC - HLC - ROI - Defog - WDR - Video Analysis - Audio 1in/1out - Alarm 7in/2out - Windscreen wiper - MicroSD slot up to 256GB (not included) - RS-485 - RJ45 - Protection IP67 / TVS 8000 V - Body in metal - 24 month warranty
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
![Speed Dome Camera - SD8A840WA-HNF Telecamera Videosorveglianza Dome Motorizzata 8MP 4K ULTRA-HD IR 500MT](https://cdn.setik.biz/storage/images/Articoli/6992_1579_55_004.jpeg)
- ONVIF® PoE IP Outdoor Starlight PTZ Camera - AI Series - Dahua - SD8A840XA-HNP-WP
- 4K ULTRA-HD 8Megapixel resolution
- 1/1.8" Sony Starvis™ CMOS sensor with Starlight Technology
- Starlight: Thanks to the sensor, color shooting even at night
- Smart Wiper: The present windshield wiper starts/stops automatically, depending on the intensity of rainfall
- Triple Stream
- 40x Optical Zoom (5.5 mm–220 mm) + 16x digital zoom
- Video compression up to H.265+
- WDR - Defog, ROI, EIS, Day/Night(ICR), Auto Focus
- Artificial Intelligence: Hydrological Monitoring
- Auto Tracking Function: (Automatic zoom on single, multiple or panoramic scene)
- Video Analysis: Abandoned / Lost Objects
- IR illuminator 10 LEDs up to 250 meters!
- Audio: 1 in / 1 out
- Alarm: 7 inputs and 2 outputs
- BNC video output
- RS485 port
- ProTVS 8000V lightning proof; surge protection; transient voltage protection IP67 protection (Dust / Immersion) - Outdoor camera
- 6KV lightning protection)
- MicroSD slot (256GB - not included)
- Dimensions: 415.6 mm × Φ26 2 mm (16.36" × Φ10.31")
- 24 month warranty
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems
This camera complies with the ONVIF® standard
![PoE power supply](https://www.setik.biz/ebay/articoli/PoE.jpg)
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
This camera supports the High-PoE standard.
AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means it has a wide range of advanced features such as:
- Auto tracking
- Face detection Distinguishes the face from all other objects in the image
- Perimeter protection: Intrusion, line crossing (classification of people & vehicles), filters false alarms caused by animals, rustling leaves, bright lights etc...
- Metadata
![4K 4K Risoluzione Ultra HD](https://www.setik.biz/ebay/articoli/4k.jpg)
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
![Resolution Questa telecamera ha una risoluzione 8Mpx 3480x2160](https://www.setik.biz/ebay/articoli/8MPX.jpg)
This camera features a resolution of 8Megapixels!
![Sony Exmor CMOS sensor Starlight](https://www.setik.biz/storage/images/Articoli/StarlightIcona.jpg)
1/1.8" Sony STARVIS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages:
- Backlit structure with 2.9 µm-square unit pixels
- High sensitivity (two or more times greater than other products on the market)
- Increased sensitivity near an area covered by infrared light
- Supports WDR (multiple exposure WDR, DOL-WDR)
- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)
With the Sony CMOS sensor it is possible to have color shots even in night mode.
Normally, when you enter night mode, color vision becomes black/white.
With the SENSOR present, night shots will be clear and in color
![Wide.jpg](https://www.setik.biz/storage/images/Articoli/Wide.jpg)
This camera is equipped with Tergioptic , useful for improving the view in case of rain.
![](https://www.setik.biz/ebay/articoli/Triple_Streams_TLC.jpg)
Triple Stream :
Main stream : 4K/1080P/1.3M/720P (1–25/30 fps)
Sub stream 1 : D1/CIF (1–25/30 fps)
Sub stream 2 : 1080P/1.3M/720P (1–25/30 fps)
![](https://www.setik.biz/ebay/articoli/SMART_DETECTION_TLC.jpg)
This camera also provides basic VIDEO ANALYSIS functions:
- Recognition of lost and abandoned objects.
![IR LED illuminator](https://www.setik.biz/ebay/articoli/TLC_20M_IRLED.jpg)
This camera is equipped with 10 LED lighting with a maximum range of up to 250 meters!
![32X optical zoom](https://www.setik.biz/storage/images/Articoli/Optical-Zoom.png)
![Infrared illuminator](https://www.setik.biz/ebay/articoli/TLC_PTZ_3D.jpg)
Generic PTZ Functions:
Pan/Tilt Range: Pan: 0° to 360° Tilt: -30° to +90°, auto flip 180°
Manual Control Speed: Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s
Preset Speed: Pan: 240° /s; Tilt: 120°/s
Presets: 300
PTZ Mode: 5 Pattern, 8 Tour(up to 32 presets per tour) 5 Scan
Speed Setup: Yes
Power off memory: Yes
Idle Motion: Preset; Tours; Patterns; Scanning?????????
Protocol: DH-SD Pelco-P/D (auto recognition)
![Full HD](https://www.setik.biz/ebay/articoli/alarm_inout.jpg)
This camera has 7 inputs and 2 alarm outputs.
![Audio IN Ingresso Audio](https://www.setik.biz/ebay/articoli/AUDIOIN.png)
![Dual Encoding](https://www.setik.biz/ebay/Icone/TLC_RS485.jpg)
![Icon Day/Night function](https://www.setik.biz/ebay/articoli/TLC_D-N_Yes.jpg)
![Example Day/Night function](https://www.setik.biz/ebay/articoli/day-night.jpg)
![ICR Funzione IR Cut Filter](https://www.setik.biz/ebay/articoli/TLC_ICR.jpg)
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
![Icon Function DEFOG](https://www.setik.biz/ebay/articoli/DEFOG.jpg)
![DEFOG function example image](https://www.setik.biz/ebay/articoli/DEFOG_EFFIO_V.png)
![DEFOG function example image](https://www.setik.biz/ebay/articoli/DEFOG_EFFIO_V2.png)
![](https://www.setik.biz/ebay/articoli/ULTRA_WDR_TLC.jpg)
WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.
![WDR 120db Immagine esempio funzione WDR 120db](https://www.setik.biz/ebay/articoli/EsempioWDR120db.png)
![MicroSD Recording](https://www.setik.biz/ebay/Icone/TLC_MicroSD.jpg)
Possibility to insert Micro SD (256GB - not included )
![IP67 protection Protezione IP67 contro polveri e immersioni](https://www.setik.biz/ebay/articoli/TLC_IP67_Waterproof.jpg)
![Warranty](https://www.setik.biz/ebay/Icone/warranty24.jpg)
