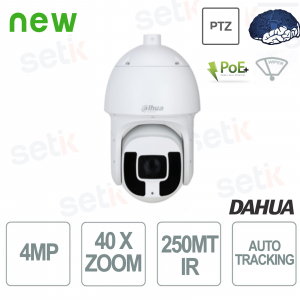

SD8A440XA-HNR-F Dahua WizMind Starlight+ 8" indoor/outdoor IP camera ONVIF PoE Speed Dome Motorized PTZ 4MP 4Megapixel with Artificial Intelligence, 40X Optical Zoom (5.5mm~220mm), 1/1.8" STARVIS CMOS Sensor with Starlight Technology . H.265+, supports Hi-PoE, IR lighting 10 LEDs 250 M, Day/Night (ICR), WDR 120dB , Defog, ROI, Autotracking , Perimeter Protection, Face Detection, Metadata, Video Analysis , RS485, Audio, Alarm, BNC Output, 256GB Micro SD Slot, IP67 Protection .
FIND INSTALLER
€2,643.46
€6,147.58 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
AI IP CAMERA DAHUA PTZ ONVIF® POE - 40X ZOOM - 4MEGAPIXEL - IR 2500M - STARLIGHT - AUTO TRACKING
ONVIF® PoE IP PTZ Camera - Dahua AI Series
4MP 4Megapixel Resolution, 40x Optical Zoom (5.5mm~220mm) - 1/1.8" STARVIS Starlight CMOS Sensor
IR illuminator 10 LEDs 250M - WDR 120dB - Video Analysis, Audio/Alarm, 256GB MicroSD Slot
Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata - 24 Month Warranty
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- ONVIF® PoE Outdoor Motorized PTZ Speed Dome IP Camera - Dahua AI Series
- 4MP 4Megapixel resolution
- 1/1.8" Starvis™ CMOS sensor with Starlight Technology
- Starlight: Thanks to the sensor, color shooting even at night
- Smart Wiper: The present windshield wiper starts/stops automatically, depending on the intensity of rainfall
- Triple Stream
- 40x Optical Zoom (5.5mm~220mm) + 16x digital zoom
- Video compression up to H.265+
- ULTRA WDR (120dB) - Defog, EIS, ROI, Day/Night(ICR)
- Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata)
- Auto Tracking
- Video Analysis: Abandoned / Lost Objects
- IR illuminator 10 LEDs up to 2,50 meters!
- Audio: 1 in / 1 out
- Alarm: 7 inputs and 2 outputs
- BNC video output
- RS485 port
- IP67 protection (Dust / Immersion) - outdoor camera
- MicroSD slot (256GB - not included)
- Dimensions Φ262(mm) x 415.6 (mm)
- Material: Metal
- 24 month warranty
Data sheet
| Model | SD8A440XA-HNR-F |
| Room | |
| Image Sensor | 1/1.8” CMOS |
| Effective Pixels | 2560(H) x 1440(V), 4 Megapixels |
| Scanning System | Progressives |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Min. Illumination |
Color: 0.001 lux@F1.4 |
| IR Distance | 250m (820.21ft) |
| IR On/Off Control | Auto/Manual/SmartIR |
| Illumination Number | 10 |
| ROM | 4GB |
| RAM | 1GB |
| Lens | |
| Focal Length | 5.5mm–220mm |
| Max. Openings | F1.4–F4.5 |
| Angle of View | H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4° |
| Optical Zoom | 40x |
| Focus Control | Car; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto/Manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0° ~ 360° Tilt: –30° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~180° /s Tilt: 0.1° ~75° /s |
| Preset Speed | Pan: 180° /s; Tilt: 75°/s |
| Presets | 300 |
| PTZ Mode | 5 Patterns, 5 Scans, 8 Tours (up to 32 presets per tour) |
| Speed Adjustment | Yes |
| Power-off Memory | Yes |
| Idle Motion | Presets; Tours; Patterns; Scanning |
| PTZ Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| General Intelligence | |
| Event Triggers | Motion detection, video tampering, scenes changing, network disconnection, IP address conflict, illegal access, and storage anomaly |
| IVS | Object Abandoned/Missing |
| Artificial Intelligence | |
| Metadata | Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. |
| IVS (Perimeter Protection) | Tripwire; intrusion Support alarm triggering by target types(human and vehicle) Filtering out false alarms caused by animals, rustling leaves, bright lights, etc |
| Face Recognition | Support |
| Auto Tracking | Support |
| Video | |
| Video Compression | H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 4M(2560×1440); 3M(2048×1536); 1080P(1920×1080); 1.3M(1280x 960); 720P(1280×720); D1(704×576/ 704×480); CIF(352×288/352×240) |
| Frame Rate | Main stream: 4M/3M (1~25/30fps), 1080P/1.3M/720P (1~25/30fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps), D1/CIF(1 ~ 25/30fps) |
| Bit Rate Control | Variable/Constant |
| Day/Night | Support |
| BLC/HLC/WDR | Support/Support/12 dB |
| White Balance | Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Yes |
| Image Stabilization (EIS) | Optical |
| Defog | Optical |
| Digital Zoom | 16x |
| Flip S/N Ratio | 0°/180°, ≥55 dB |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711A/G.711Mu/G.726/AAC/G722.1/G.723/G729/PCM/MPEG2-Layer2 |
| Network | |
| Ethernet | RJ-45 (10 Base-T) |
| Network Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF Profile S&G$T; CGI |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 (total bandwidth: 48M) |
| Storage | FTP, Micro SD card 256GB; P2P |
| Browsers | IE7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
| Management Software | Smart Player, Smart PSS, DSS; Easy4ip |
| Smart Phones | IOS, Android, Windows Phone |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1:2014+A11:2017 CE-EMC: EN 55032:2015,Class A/EN IEC 61000-3-2:2019/EN 61000-3-3:2013+A1:2019/EN 55024:2010+A1:2015/EN 55035:2017/EN 50130- 4:2011+A1:2014 FCC: 47 CFR FCC Part15, Subpart B, Class A |
| Port | |
| Two-way Audio | Support |
| RS485 | 1 |
| Audio I/O | 1/1 (bare wire) |
| Alarm I/O, Alarm Linkage, Alarm Event, Optical Fiber | 7/2 Captures; presets; tours; pattern; record; digital trigger; output; audio; send email; Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | DC 36V±25%/2.23A Hi-PoE |
| Power Consumption | 18W 40W (IR light on) |
| Environmental | |
| Operating Conditions | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% (RH) |
| Protection | IP67; TVS 8000V lightning protection; surge protection; voltage transient protection |
| Construction | |
| Casing | Metal |
| Dimensions | Φ262(mm) x 415.6 (mm) (Φ10.31" × 16.36") |
| Net Weight | 8.5kg(18.74lb) |
| Gross Weight | 13.1 kg (28.88 lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High-PoE) |
|
|
AI | Artificial intelligence - Auto tracking
|
 |
Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -30° ~ 90°, auto flip 180° Manual Control Speed: Pan: 0.1° ~180° /s; Tilt: 0.1° ~75° /s Preset Speed: Pan: 180° /s; Tilt: 75°/s Presets: 300 PTZ Mode: 5 Patterns, 5 Scan, 8 Tours (up to 32 presets per tour) Speed Setup: Human-oriented focal length/ speed adaptation Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol: DH-SD, Pelco-P/D (Auto recognition) |
|
|
1/1.8" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color
|
 |
This camera features a resolution of 4Megapixel 4MP |
 |
40x Optical Zoom (5.5mm~220mm) + 16x Digital Zoom |
 |
This camera is equipped with Tergioptic , useful for improving the view in case of rain.
|
 |
This camera also provides basic VIDEO ANALYSIS functions: |
 |
This camera features the AUTO TRACKING function.
|
 |
This camera is equipped with a maximum range of 250 meters! |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
Latest function present ONLY in Sony Effio-V, allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
 |
It is extremely useful to also have Inputs/Outputs in a CCTV system to be able to control relays or activate a recording following an event This camera has 7 inputs and 2 outputs |
 |
This camera has 1 Audio Input + 1 Audio Output |
 |
RS 485 for PTZ Commands (Remotely Controlled Cameras) |
 |
Possibility to insert Micro SD (256GB - not included ) |
 |
Protection level IP67 (Dust / Immersion) |
 |
This product is covered by a 24 month warranty. |
