IPC-HDEW8841R-Z-S2 Dahua WizMind AI Outdoor Onvif PoE IP camera with Artificial Intelligence , explosion-proof - 8MP , 1/2.8" CMOS sensor, 2.7-13.5mm lens, H.265 - Triple Stream - IR 40m, WDR 120dB - AI: Perimeter Protection, SMD 3.0, Face, Smart Search, People Counting, Heat Map - 256GB microSD slot (not included) , IP68 and IK10 - RJ45 Ethernet - RS-485 - Audio - Alarm - 316L stainless steel cable 2 m - Ideal for outdoor use.
€1,480.42
€3,442.84 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
EXTERNAL EXPLOSION-PROOF ONVIF® POE IP CAMERA - 8MEGAPIXEL - 2.7-13.5MM - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA -IPC-HDEW8841R-Z-S2
![Dahua Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)

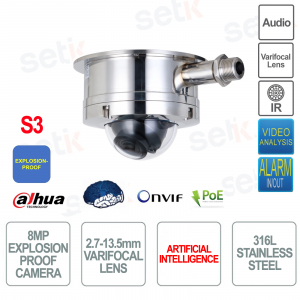

Explosion-proof Outdoor ONVIF® PoE IP Camera - Dahua AI Series - IPC-HDEW8841R-Z-S2
Resolution 8Megapixel - Varifocal lens 2.7 mm–13.5 mm - CMOS 1/2.8" 8MP - IR 40M - WDR 120dB - ROI, Day/Night (ICR, BLC, HLC, 3DNR, EIS, Defog - RJ45 Ethernet - RS-485 - Slot MicroSD 256GB (not included) - AI: Perimeter Protection, SMD 3.0, Face, Smart Search, People Counting - Audio 1in/1out - Alarm 3in/2out - 2m cable in 316L stainless steel - IP68 and Ik10 protection against vandalism - Ideal for outdoors.
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
![IPC-HDW3441TM-AS](https://cdn.setik.biz/storage/images/Articoli/7392_1794_55_003.jpeg)
- ONVIF® PoE External AI IP Camera - Dahua - IPC-HDEW8841R-Z-S2
- 8Megapixel 8MP resolution
- Varifocal lens 2.7-13.5mm
- 1/2.8" 8MP CMOS sensor
- Video compression up to H.265
- Triple Stream
- WDR 120dB - Defog - EIS - Mirror Mode - Privacy Mask - 3DNR - BLC - HLC
- IR illuminator with approximately 40m range and 2 lighting LEDs
- Artificial Intelligence Lite : Perimeter Protection, Intrusion, Line Crossing, People Counting, SMD 3.0, Face Detection, People Counting
- Audio 1in/1out
- 3in/2out alarm
- Micro SD memory slot (Up to 256GB - not included)
- IP68 protection (indoor / outdoor)
- Material: 316L stainless steel casing, 2 m cable
- Dimensions: 219.5mm × Φ165mm × 118.2mm
- Weight: 4.5Kg
- Operating temperature: T5/T100 °C : –40 °C ≤ Tamb ≤ +60 °C (–40 °F to +140 °F) T6/T80 °C :–40 °C ≤ Tamb ≤ +55 °C (– 40 °F to +131 °F)
- Power supply NOT included
- 24 month warranty
Data sheet
IPC-HDEW8841R-Z-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 3840(H)×2160(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 1GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.007 lux@F1.5 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | > 56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 40 m (131.23 ft) (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–355° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Motorized vari-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | φ14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7mm–13.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings | F1.5 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 109°–30°; V: 56°–17°; D: 131°–35° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type | Fixed | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 0.8 m (2.6 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Events | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS | Abandoned object; missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD 3.0 | Less false alarm, longer detection distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting | Tripwire people counting, generating and exporting reports (day/month/year); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codecs | Smart H.265+/Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding | AI H.265 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate | 3 channel in: 5 mA 3 V–5 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 2 channel out: 300 mA 12 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 4.0W (12VDC); 4.7W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | T5/T100 °C : –40 °C ≤ Tamb ≤ +60 °C (–40 °F to +140 °F) T6/T80 °C :–40 °C ≤ Tamb ≤ +55 °C (–40 °F to +131 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40 °C to +60 °C (–40 °F to + 140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IP68; IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | SUS316L (316 stainless steel) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 219.5 mm × Φ165 mm × 118.2 mm (8.64" × Φ6.5" × 4.65") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 4.5 kg (9.9 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 5.3 kg (11.7 lb) |
Further details
![]() | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
![]() | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
AI | Artificial intelligence - Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images. - Perimeter protection: Intrusion, line crossing (people&vehicle classification) | |
![]() | 8 Megapixel resolution (3840 × 2160) |
![]() | This camera features 2.7-13.5mm varifocal optics. |
![]() | Main stream: 2688 × 1520 @(1 fps–25/30 fps) 1920 × 1080 @(1 fps–50/60 fps) |
![]() | Infrared illuminator with 2 IR and range up to 40MT for night vision. |
![]() | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. ![]() |
![]() | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present. ![]() |
![]() | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition. ![]() |
![]() | It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog ![]() ![]() |
![]() | 1 audio input and 1 audio output. |
![]() | 3 inputs and 2 alarm outputs. |
![]() | Protection level IP68 (Dust / Continuous immersion) |
![]() | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism |
![]() | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
![]() | Explosion-proof product, made of solid 316L stainless steel casing |
![]() | Power supply NOT included. Diet: |
![]() | This product is covered by a 24 month warranty. |
