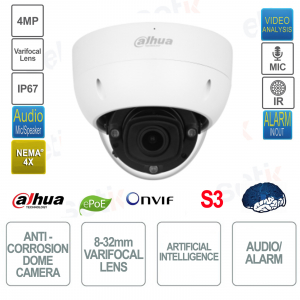

POE ONVIF IP Dome Camera - 4MP - 8-32mm lens - Artificial intelligence - Smart IR 80m - S3

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

Dahua's in-house designed ePoE technology adopts advanced 2D-PAM3 modulation from the physical layer and realizes full duplex transmissions over 800 meters at the speed of 10 Mbps, or 300 meters at the speed of 100 Mbps via Cat 5 or coaxial cable.

Dahua ePoE technology offers a new way to realize long-distance transmission between IP camera and network switch. It allows for more flexible surveillance system design, improves reliability and saves construction and cabling costs.

AI | Artificial intelligence
This camera features Artificial Intelligence on board

- Face Capture : Face capture is a software application that automatically captures faces from within a digital image or video frame from a video source . Dahua cameras use advanced deep learning algorithms , trained by a large number of sources that encompass facial data, allowing the camera to quickly and accurately locate faces from the video source and capture facial images.

- Face Attribute : Through the use of deep learning algorithms to analyze facial images, Dahua cameras can extract up to six facial attributes from each frame , such as gender, age, expression (happy, calm, surprised, sad, and angry), glasses, masks and moustaches.

Customers can gain valuable data via facial attribute statistics.

- Face Detection : Once the facial features are extracted from the captured faces, they are stored

in a database where other images can be easily searched and compared. Once a match is found, the system outputs the result file. The Dahua Face Recognition camera supports a built-in database that stores up to 10,000 facial images , helping the camera achieve real-time acquisition and comparison.

- Line crossing : The counting of people will start when a previously set line is crossed.

- Perimeter crossing : The counting of people will start when they enter a previously set area.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

This camera features a resolution of 4Megapixels

1/1.8” 4Megapixel progressive scan CMOS image sensor

Resolutions:
2688 × 1520;
2560 × 1440; 2304 × 1296;
1080p (1920 × 1080);
1.3M (1280×960);
720p (1280 × 720);
D1 (704 × 576/704 × 480); V
GA (640 × 480);
CIF (352 × 288/352 × 240)

This camera features an 8-32mm Varifocal lens

• Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps)
• Sub stream: D1@(1–25/30 fps)
• Third stream: 1080p@(1–25/30 fps)
• Fourth stream: 720p@(1–25/30 fps)

Quality IR illuminator for better night vision.
Approximate maximum range approximately 80 meters with 3 LED lights

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Remote visibility on mobile using the Dahua DMSS application.

This camera also provides basic video analysis functions:

- Recognition of lost and abandoned objects

-Heat map

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism

Anti-corrosion camera

This camera is protected from corrosion by environmental agents thanks to its 316L stainless steel housing.

Classified by NEMA® (National Electrical Manufacturers Association) as 4X protection level, i.e.:

"Installation in indoor or outdoor environments: protection against dust blown by wind, rain, splashes and jets of water, corrosion; also protection against damage due to the formation of external ice."

Therefore ideal for video surveillance in difficult and aggressive environmental conditions .

IDEAL ENVIRONMENTS:

- Oil & gas

- Maritime areas (ports, beaches, sea coasts), lakes or rivers

Possibility of inserting a Micro SD up to a maximum of 512 GB - not included in the package.

Power supply NOT included

Power supply: 24V AC/PoE/12V DC
