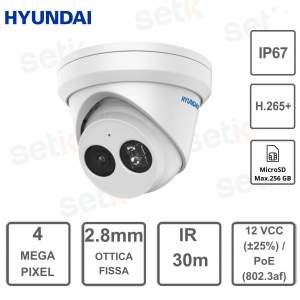

ONVIF PoE IP dome camera - 4MP - 2.8mm fixed lens - IR 30 - Hyunday

Product details

HYUNDAI CATALOGUE: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us via email.

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version
	The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
	This camera features a resolution of 4Megapixel and 4MP resolution 2688x1520. 1/3" 4 Megapixel CMOS sensor.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	Stream 1: 4MP, 1080P, 720P (25ips) Stream 2: VGA, Q720P (25 ips) Stream 3: 1080P, 720P, VGA, Q720P (10 ips)
	2.8mm fixed lens.
	IR illuminator. Maximum supported range: 30 meters.
	This camera has ARTIFICIAL INTELLIGENCE features, including: Perimeter Protection: Line crossing detection and intrusion detection with classification of people and vehicles Face detection
	WDR (Wide Dynamic Range) 120DB: It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...).
	3D-DNR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light.
	This camera has a built-in microphone
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	This product is made of aluminium
	Protection level IP67 (Dust / Immersion). Ideal solution for video surveillance systems operating in outdoor environments.
	This camera requires a 12V DC (±25%) power supply (not included) or PoE (802.3af) to operate this camera.

Data sheet

Image Sensor :

• 4-megapixel CMOS sensor, 1/3"

Resolution :

• 4MP (2688x1520)
• 1080P (1920x1080)
• 720P (1280x720)
• VGA (640x480)
• Q720P (640x360)

Video Compression :

• H.265+
• H.265
• H.264+
• H.264
• MJPEG

Stream 1 :

• 4MP, 1080P, 720P (25fps)

Stream 2 :

• VGA, Q720P (25fps)

Stream 3 :

• 1080P, 720P, VGA, Q720P (10fps)

Day/Night Mode :

• Mechanical removable IR-cut filter (ICR)

Low Light Performance :

• 0.005 lux F1.6 (color, AGC on), 0 lux with IR on

IR Illumination :

• 30 meters

Lens :

• Fixed lens, 2.8mm

Field of View :

• 103° (Horizontal)
• 55° (Vertical)
• 122° (Diagonal)

Image Modes :

• BLC (Back Light Compensation)
• HLC (High Light Compensation)
• WDR (Wide Dynamic Range) 120dB
• 3D-DNR (Digital Noise Reduction)

ROI (Region of Interest) :

• 1 fixed ROI for main and secondary streams

Image Adjustments :

• Image rotation
• Mirror
• Privacy mask
• Saturation
• Brightness
• Contrast
• Sharpness
• White balance
• Gain control (adjustable via client software or web browser)

Perimeter Protection :

• Line crossing detection
• Intrusion detection (person and vehicle classification)

Facial Recognition : Yes

Motion Detection 2.0 :

• Based on deep learning
• Enabled by default for all analog channels
• Classifies people and vehicles
• Minimizes false alarms from lights or objects like leaves

Audio :

• Built-in microphone

Storage :

• MicroSD card slot up to 256 GB (card not included)

Network Interface :

• RJ45 (10/100M) adaptive

Network Protocols :

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE

Standards :

• Supports ONVIF (S/G), ISAPI, SDK

User Capacity :

• Up to 32 users
• 6 simultaneous views

Browser Compatibility :

• IE, Chrome, Firefox

NVR Compatibility :

• Plug&Play with NEXTGEN NVR
• Compatible with DDNS DEMES

Power Supply :

• 12V DC (±25%)
• PoE (802.3af)

Power Consumption :

• 6W (12V)
• 7W (PoE)

Operating Temperatures :

• -30°C to +60°C

Humidity :

• <95% (non-condensing)

Protection Rating :

• IP67

Housing :

• Aluminium

Dimensions :

• Ø127.3 x 95.9 mm

Weight :

• 600 g

3-Axis Adjustment :

• 0° to 360° (PAN)
• 0° to 75° (TILT)
• 0° to 360° (Rotation)
