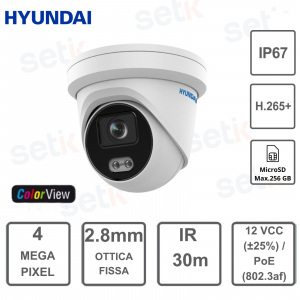

Color view IP dome camera - 4 megapixel - 2.8mm fixed lens - Hyundai

Product details

HYUNDAI CATALOGUE: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us via email.

	4MP 1/1.8" CMOS sensor with Color View Starlight Technology ! COLOR VIEW STARLIGHT: With the adoption of high-performance sensor and large aperture lens, this camera can provide a more colorful image even in low ambient light conditions. Full-color starlight cameras are perfect for low-light applications exceeding 1 lux, such as parking lots, city streets, schools, museums, etc. * If the lighting conditions are completely dark, the video cannot be used for monitoring. 24H IN COLOR: This camera does not have an IR CUT filter. The camera does not switch to B/W but the vision will always be in color.
	This camera features a resolution of 2688x1520 High performance 4 megapixel CMOS sensor!
	This camera is equipped with a 2.8mm fixed lens
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	Smart light illuminator 30 METERS! This camera also features SMART IR technology. Through this technology , the light emitted by the LEDs is adapted depending on the object framed.
	Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...).
	Protection level IP67 (Dust / Immersion)
	This camera requires a 12V DC (±25%) or PoE (802.3af) power supply to operate this camera.

Data sheet

Image Sensor: 4 Megapixel 1/1.8" CMOS

Resolution:

• 4MP (2688x1520)
• 1080P (1920x1080)
• 720P (1280x720)
• VGA (640x480)
• Q720P (640x360)

Video Compression: H.265+, H.265, H.264+, H.264, and MJPEG

Streams:

• Stream 1: 4MP, 1080P, 720P (25fps)
• Stream 2: VGA, Q720P (25fps)
• Stream 3: 1080P, 720P, VGA, Q720P (10fps)

Color Mode: 24 hours

Illumination:

• 0.0005 lux F1.0 (color, AGC on)
• 0 lux with white light on
• White light distance: 30 meters

Lens: Fixed 2.8mm

Field of View:

• 112°(H), 61°(V), 134°(D)

Image Modes:

• BLC, HLC, WDR 130dB, 3D-DNR

ROI: 1 fixed ROI for main and secondary streams

Adjustable Settings:

• Image rotation
• Saturation
• Brightness
• Contrast
• Sharpness
• White balance
• Gain control (via client software or web browser)

Perimeter Protection:

• Line crossing detection
• Intrusion detection
• Area entrance/exit detection

Face Capture

Motion Detection 2.0:

• Enabled by default for all analog channels
• Deep learning-based, classifies people and vehicles
• Minimizes false alarms caused by lights or objects like leaves

Audio:

• Built-in microphone

Storage:

• MicroSD card slot up to 256 GB (card not included)

Network Interface: RJ45 (10/100M) adaptive

Network Protocols:

• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP , ARP

Compatibility:

• Supports ONVIF (S/G/T), ISAPI, SDK
• Up to 32 users and 6 simultaneous views
• Compatible with IE, Chrome, and Firefox browsers
• Plug&Play connection with NEXTGEN NVR
• Compatible with DEMES DDNS

Power Supply:

• 12V DC (±25%) / PoE (802.3af)
• Power Consumption: 6.6W (12V) / 7.6W (PoE)

Operating Conditions:

• Temperatures: -30°C ~ +60°C
• Humidity: <95% (non-condensing)

Protection Rating: IP67

Housing: Aluminium

Dimensions: Ø138.3 x 125.2 mm

Weight: 750 g

3-Axis Adjustment:

• 0°~360° (Pan)
• 0°~75° (Tilt)
• 0°~360° (Rotation)
