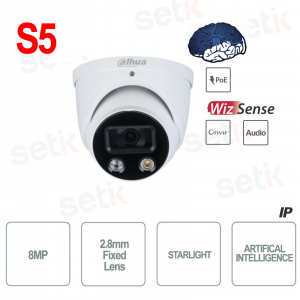

AI IP Camera ONVIF® PoE 8MP Fixed Lens 2.8mm Video Analysis S5 - Wizsense - S5

AI IP Camera ONVIF® PoE 8MP Fixed Lens 2.8mm Video Analysis S5 - Wizsense - S5
BEST PRICE -60%

IPC-HDW3849H-AS-PV-S5 Dahua AI Lite Version S5 External IP camera Onvif PoE WizSense with Video Analysis , 8 Megapixel 4K 8MP , 1/2.7" CMOS sensor, 2.8mm Fixed Lens, compression up to H.265+ . Illuminator Smart IR 1 LED and 1 warm LED 3 0MT , Day/Night (ICR), WDR 120dB, Perimeter protection, MicroSD Slot (Max.256 - Not Included ), IP67

Reference: IPC-HDW3849H-AS-PV-S5

Brand: Dahua

EAN: 6923172525765

FIND INSTALLER

€256.20

€640.50 -60%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


OUTDOOR ONVIF® POE IP CAMERA - 8 MEGAPIXEL WITH VIDEO ANALYSIS - FIXED OPTICS - PERIMETER PROTECTION - S5 VERSION - DAHUA


Dahua
Outdoor ONVIF® PoE IP camera S5 version - WizSense Dahua
8Megapixel Resolution - 2.8 mm Fixed Optics - 1/2.7" CMOS - Compression up to H.265+
IR illuminator 1 LED and 1 warm LED 30M - Day/Night (ICR) - WDR 120dB - MicroSD Slot (256GB - Not Included) - Microphone
Video Analysis: Perimeter Protection, Intrusion (Vehicle Classification), Intelligent Search

Product details

IPC-HDW3849H-AS-PV-S3 Telecamera AI IP ONVIF® PoE 8MP

  • Onvif PoE external AI IP camera - Dahua
  • S5 version
  • 8Megapixel 8MP resolution
  • 2.8 mm Fixed Lens
  • 1/2” sensor
  • Video compression up to H.265+
  • Triple Stream
  • SMD 4.0
  • WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
  • Smart IR illuminator 1 LED (Warm Light) and 1 LED 30MT
  • Artificial Intelligence : Perimeter Protection, Intrusion, SMD 4.0
  • Remote viewing with Smart PSS, DSS, DMSS
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 protection (indoor/outdoor)
  • Material: Metal
  • Power supply NOT included
  • 24 month warranty

Data sheet

Model IPC-HDW3849H-AS-PV-S5
Room
Image Sensor 1/2.7" CMOS
Max.Resolution 3840(H)×2160(V)
ROM 256MB
RAM 2GB
Scanning System Progressives
Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 1 (IR LED) 1 (warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed focus
Mount Type M12
Focal Length 2.8mm
Max. Openings F1.4
Field of View H: 106°; V: 55°; D: 125°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Professional, Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
AI Coding AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate

Main stream: 3840 × 2160@(1fps–30fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control

CBR/VBR/ABR

Video Bit Rate H.264: 3kbps–16384kbps;
H.265: 3kbps–16384kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Slef-adaptation scenes Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D NO
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
LDC Yes
Audio
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 64M)
Storage

FTP; SFTP; Micro SD card (Support max. 256G); NAS

Browsers IE: IE 11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphones iOS; Android
Cyber Security Video encryption; firmware encryption; configuration
encryption; Digests; WSSE; account lockout; security logs; IP/
MAC filtering; generation and importing of X.509 certification;
syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDDC
Alarm Output 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12VDC; PoE
Power Consumption

Basic: 4.5W (12VDC); 5.8W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.6 W (12 VDC); 10.1W (PoE)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Ingress Protection IP67
Structure
Casing Metal
Dimensions Φ122.0 mm × 110.9 mm (4.80" × Φ4.37")
Net Weight 0.75 kg (1.65 lb)
Gross Weight 0.92 kg (2.03 lb

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

This camera features the INTELLIGENT FUNCTION:

- Line crossing

- Intrusion (Vehicle and human classification support)

- Smart Search


Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Questa telecamera ha una risoluzione 8Mpx 3480x2160

This camera has a resolution of 8Mpx

Ottica Fissa

This camera features a 2.8mm Fixed lens

Main stream : 3840 × 2160@(1fps–30fps)

sub stream : 704 × 576@(1 fps–25 fps)/704 × 480@(1fps–30 fps)

third stream : 1920 × 1080@(1 fps–30 fps)

Illuminatore IR LED

Quality IR illuminator for better night vision.
Maximum range 30 meters

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Full HD

Remote visibility on mobile using the Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee icon This product is covered by a 24 month warranty.

Downloads

Download the English brochure
IPC-HDW3849H-AS-PV-S5 dimensioni.jpg
