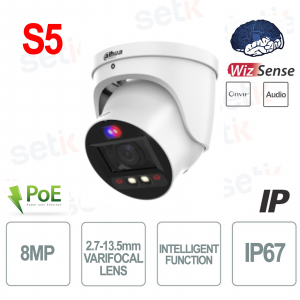

OUTDOOR ONVIF® POE IP CAMERA - 8 MEGAPIXEL WITH VIDEO ANALYSIS - VARIFOCAL OPTICS - PERIMETER PROTECTION - S5 VERSION - DAHUA
Resolution 8Megapixel - Varifocal optics 2.7-13.5mm - CMOS 1/2.8" Active deterrence - Compression up to H.265+
IR illuminator 2 LEDs and 2 warm LEDs 50M - Day/Night (ICR) - WDR 120dB - MicroSD Slot (256GB - Not Included) - Microphone
Video Analysis: Perimeter Protection, Intrusion (Vehicle Classification), Intelligent Search
Product details
- Onvif PoE external AI IP camera - Dahua
- S5 version
- 8Megapixel 8MP resolution
- Varifocal lens 2.7-13.5mm
- 1/2.8” sensor
- Active deterrence
- Video compression up to H.265+
- Triple Stream
- SMD 4.0
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 2 LEDs (Warm Light) and 2 LEDs 50MT
- Artificial Intelligence : Perimeter Protection, Intrusion, SMD 4.0
- Remote viewing with Smart PSS, DSS, DMSS
- Micro SD memory slot (Up to 512GB - not included)
- IP67 protection (indoor/outdoor)
- Material: Metal
- Power supply NOT included
- 24 month warranty
Data sheet
| Model | IPC-HDW3849H-ZAS-PV-S5 |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Max.Resolution | 3840(H)×2160(V) |
| ROM | 256MB |
| RAM | 2GB |
| Scanning System | Progressives |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (164.64 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7mm–13.5mm |
| Max. Openings | F1.0 |
| Field of View | H: 108°–34° V: 56°–19° D: 130°–39° |
| Iris Type | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Professional, Intelligent | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models) |
| TO SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codecs | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1fps–30fps) |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR/ABR |
| Video Bit Rate | H.264:3kbps–16384kbps H.265:3kbps–16384kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Slef-adaptation scenes | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car; manual |
| Noise Reduction | 3D NO |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart IR | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; external alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing) |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 512G); NAS |
| Browsers | IE: IE 9/11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphones | iOS; Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Certifications | |
| Certifications | CE-LVD: EN 62368-1; |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4.5W (12VDC); 5.8W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperatures | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
| Net Weight | 0.885 kg (1.95 lb) |
| Gross Weight | 1,060 kg (2.34 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features the INTELLIGENT FUNCTION: - Line crossing - Intrusion (Vehicle and human classification support) |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera has a resolution of 8Mpx |
 | This camera features a 2.7-13.5mm Varifocal lens |
 | Main stream : 3840 × 2160@(1fps–30fps) sub stream : 704 × 576@(1 fps–25 fps)/704 × 480@(1fps–30 fps) third stream : 1920 × 1080@(1 fps–30 fps) |
 | Quality IR illuminator for better night vision. This camera also features SMART IR technology. |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | Protection level IP67 (Dust / Immersion) |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
