S5 dome camera wizsense outdoor IP video analysis onvif poe 5mp 2.7-13.5mm - Dahua

S5 dome camera wizsense outdoor IP video analysis onvif poe 5mp 2.7-13.5mm - Dahua
NEW -57%

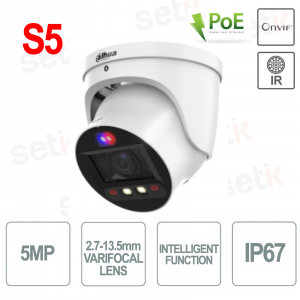

IPC-HDW3549H-ZAS-PV-S5 Dahua Onvif PoE WizSense external mini dome IP camera , with Video Analysis , 5 Megapixel 5MP , 1/2.7" CMOS sensor , active deterrence , 2.7-13.5mm varifocal optics, compression up to H.265+ , double IR lighting 50MT and 40MT warm light , Day /Night (ICR), WDR 120dB, 3D NDR, HLC, BLC, Video analysis, Motion detection, Intrusion detection, SMD 4.0 , 1x input +1x audio output, 1x input + 1x alarm output, MicroSD slot (Max.512 - Not Included ), IP67, double microphone S5 VERSION



Reference: IPC-HDW3549H-ZAS-PV-S5

Brand: Dahua

EAN: 6923172504173

FIND INSTALLER

€384.01

€893.04 -57%
taxes included
Tax included
 Available from 10 January 2025
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


OUTDOOR ONVIF POE IP CAMERA - 5 MEGAPIXEL WITH VIDEO ANALYSIS - VARIFOCAL OPTICS 2.7-13.5mm - ACTIVE DETERRENCE - S5 VERSION - DAHUA

Dahua
Outdoor ONVIF PoE IP camera - WizSense Dahua S5 VERSION
5Megapixel Resolution - 2.8 mm Fixed Optics - 1/2.7" CMOS active deterrence - Compression up to H.265+
Double IR illuminator 50M and 40M warm light - Day/Night (ICR) - WDR 120dB, 3D NDR, HLC, BLC, Video analysis, Motion detection, Intrusion detection, 1x input +1x audio output, 1x input + 1x alarm output, MicroSD slot (Max.512 - Not Included ) , IP67 - Double Microphone
Video Analysis: Perimeter Protection, Intrusion, Intelligent Search

Product details

IPC-HDW3549H-ZAS-PV-S5
  • Onvif PoE external IP camera - Dahua
  • S5 VERSION
  • 5Megapixel 5MP resolution
  • Varifocal lens 2.7-13.5mm
  • 1/2.7” CMOS sensor
  • Active deterrence
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
  • Double IR illuminator 50MT and 40MT warm light
  • Artificial Intelligence : Perimeter Protection, Intrusion
  • Micro SD memory slot (Up to 512GB - not included)
  • IP67 protection (indoor/outdoor)
  • Material: Metal
  • Power supply NOT included
  • 24 month warranty

Data sheet

Model IPC-HDW3549H-ZAS-PV-S5
Room
Image Sensor 1/2.7" CMOS
Max.Resolution 2960(H)×1668(V)
ROM 256 MB
RAM 1 GB
Scanning System Progressives
Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio ﹥ 56dB
Illumination Distance Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED); 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Motorized vari-focal
Lens Mount φ16
Focal Length 2.7mm–13.5mm
Max. Openings F1.0
Field of View H: 113°–36°
V: 57°–20°
D: 137°–40°
Iris Type Fixed
Close Focus Distance 1.5 m (4.92 ft)
Professional, Intelligent
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD 4.0
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets
TO SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate

Main stream: 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048×1536); 1080p (1920×1080); 1.3M (1280×960); 720P(1280×720); D1 (704×576/704×480); VGA(640 × 480); CIF (352×288/352×240)
Bit Rate Control

CBR/VBR/ABR

Video Bit Rate H.264:3kbps–16384kbps
H.265:3kbps–16384kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Slef-adaptation scenes Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car; manual
Noise Reduction 3D NO
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart IR Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes, built-in dual Mic
Built-in speaker Yes, built-in speaker
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Audio
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability ONVIF (Profile S;Profile G;Profile T); CGI
User/Host 20 (Total bandwidth: 72M)
Storage

FTP; SFTP; Micro SD card (Support max. 512G); NAS

Browsers IE: IE 9/11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphones iOS; Android
Cyber Security Video encryption; firmware encryption; configuration
encryption; Digests; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade
Certifications
Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: 5 mA 3V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption

Basic: 4W (12VDC); 5W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.5 W (12 VDC); 10.6W (PoE)

Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperatures –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Ingress Protection IP67
Structure
Casing Metal
Dimensions 127.6 mm × Φ122.0 mm (5.02" × Φ4.80")
Net Weight 0.885 kg (1.95 lb)
Gross Weight 1,060 kg (2.34 lb)

Further details

Questo prodotto rispetta lo standard Onvif

This camera is Onvif compatible:
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

PoE power supply

PoE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation

This camera features the INTELLIGENT FUNCTION:

- Line crossing
- Intrusion (Vehicle and human classification support)
- Smart Search
- Motion detection


Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Risoluzione 5 Megapixel

Resolution:
This camera has a resolution of 5Mpx

Ottica varifocale

Optics:
This camera features a 2.7-13.5mm Varifocal lens

Streams:
Main stream : 2880 × 1620/2960 × 1668@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream : 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream : 1920 × 1080@(1 fps–25/30 fps)

Illuminatore IR LED

IR:
Quality IR illuminator for better night vision.

Maximum range 50 meters

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

WDR 120dB (Wide Dynamic Range):
It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.

Icon Day/Night function

Day/Night:
Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.

Example Day/Night function

Funzione IR Cut Filter

IR cut filter:
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.


Esempio Funzione IR Cut Filter

Interfaccia audio This camera features: 1 Audio Input and 1 Audio Output
This camera features: 1 alarm input and 1 alarm output

BLC (Back Light Compensation):
It is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

Funzione ROI

ROI:

The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.
Ultra Smart Funzione ROI
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility of inserting a Micro SD up to a maximum of 256Gb - not included

12V 3A power supply 12V DC power supply (NOT included)
12V DC power supply
Italian Guarantee icon This product is covered by a 24 month warranty.

Downloads

Download the brochure
Schema dimensioni telecamera IPC-HDW3549H-ZAS-PV-S5
