OUTDOOR ONVIF® POE IP CAMERA - 8MP WITH VIDEO ANALYSIS AND ARTIFICIAL INTELLIGENCE - 2.8MM - FULL COLOR - MICROPHONE - AUDIO - ALARM - IP67 - S2 - DAHUA

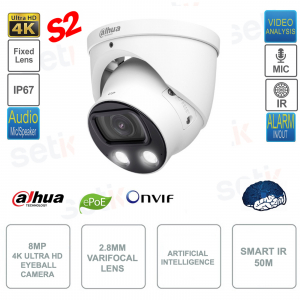

Outdoor ONVIF® PoE IP camera IPC-HDW5849H-ASE-LED-S2 - Dahua
8Megapixel Resolution - 2.8 mm Fixed Optics - CMOS 1/1.2" Starlight FULL-COLOR (24/7 color vision) - H.265+ Compression - Triple Stream -
50m Smart IR illuminator with 2 warm light LEDs - Day/Night (ICR) - WDR 140dB - AGC - BLC - HLC - 3DNR - Defog - Mirror Mode - Motion Detection - MicroSD Slot (256GB - Not Included) - Audio 1in/1out RCA - Alarm 1in/1out - Microphone
Video Analysis: Abandoned or lost objects / Heat map - Artificial intelligence: Face detection, Perimeter protection, Smart Search, People counting - IP67 protection for outdoors - Made of metal - Version S2.
Product details
- Onvif PoE external AI IP camera - Dahua - IPC-HDW5849H-ASE-LED-S2
- 8Megapixel 8MP resolution
- 2.8 mm Fixed Lens
- 1/1.2” sensor with Starlight Technology
- Starlight Technology: Color night vision
- FULL COLOR: color viewing of images 24/7
- Video compression up to H.265+
- Triple Stream Video
- Smart IR lighting up to 50m with 2 warm light LEDs
- WDR 140dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC, Defog, Mirror Mode, Privacy MAsking
- Artificial Intelligence : Perimeter Protection, People Counting, Face Detection and Smart Search
- Video Analysis Standard: Abandoned or Lost Objects / Heat Map
- Remote viewing with Smart PSS, DSS, DMSS
- RJ45 Ethernet LAN 10/100M
- Microphone on board
- Audio 1in/1out. RCA
- 1in/1out alarm
- Micro SD memory slot (Up to 256GB - not included)
- IP67 protection (indoor/outdoor)
- Material: Metal
- Power supply NOT included
- S2 version
- 24 month warranty
Data sheet
| IPC-HDW5849H-ASE-LED-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/1.2'' CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 3840(H)×2160(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 256MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 2GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.0005Lux@F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 50 m (164.04 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 (Warm light) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed focus | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | M22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 102°; V: 53°; D: 125° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 5 m (16.4 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart events | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Object Detection | Smart abandoned object; smart missing object | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | SMD 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PeopleCounting | Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codecs | Smart H.265+/Smart H.264+ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Main stream: 3840 × 2160 @(1 fps–25/30 fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability | 3 streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560×1440); 3M (2048 × 1536); 2M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 3.6W (12VDC); 5W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | 10%–95% (RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Inner core: metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | Φ122mm × 119.7mm (Φ4.80" × 4.71") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.74kg(1.63lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.96kg(2.12lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features the INTELLIGENT FUNCTION: - Smart search |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera has a resolution of 8Mpx Supported resolutions: 8M (3840 × 2160); |
 | This camera features a 2.8mm Fixed lens |
| 1/1.2" CMOS sensor with Full-Color Starlight Technology ! FULL-COLOR STARLIGHT: The camera features a large-aperture, high-performance 1/2.8" F1.0 lens. With increased light absorption and an advanced image processing algorithm, the camera features impressive low-light performance with an exceptional balance between noise reduction and moving object blur. The camera is also equipped with a Smart Light mode which allows the camera to automatically and simultaneously manage exposure time and light sensitivity to avoid overexposure of objects in the center of the image. The sensitivity and intensity of the LEDs can also be controlled remotely via the OSD menu. |
 | Main stream: 3840 × 2160 @(1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) |
 | Quality IR illuminator for better night vision. This camera also features SMART IR technology. |
 | Remote visibility on mobile using the Dahua DMSS application. |
 | ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | Protection level IP67 (Dust / Immersion) |
 | Microphone on board! |
 | 1 alarm input and 1 alarm output |
 | 1 audio input and 1 audio output |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
