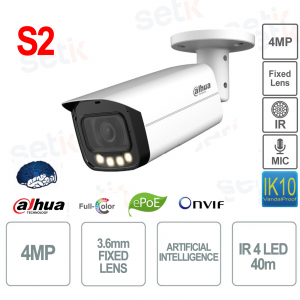

ONVIF® Full Color PoE IP Bullet Camera - 4MP - 3.6mm Lens - Artificial Intelligence - Microphone - S2 - Dahua

Room

Image Sensor

1/1.8” CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 Lux@F1.0

Y/N Ratio

> 56 dB

Illumination Distance

Up to 40 m (131.23 ft)

Illuminator On/Off Control

Car; manual

Illuminator Number

4 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed focal

Lens Mount

M16

Focal Length

3.6mm

Max. Openings

F1.0

Field of View

Horizontal 95° × Vertical 51° × Diagonal 116°

Iris Control

Fixed

Close Focus Distance

2.6 m (8.5 ft)

Intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Smart Object Detection

Smart abandoned object; smart missing object

SMD

SMD 3.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure;
face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo;
snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

Tripwire people counting and people counting in area; generating and exporting reports (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

Yes

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body
detection; snapshot; snapshot optimization; optimal face
snapshot upload
Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes
for non-motor vehicles
Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Audio

Built-in MIC

Yes

iOS; Android

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5mA 3V–5V DC

AlarmOutput

1 channel out: 300mA 12V DC

Power

Power Supply

12VDC/PoE (802.3af)/ePoE

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 2.7W (12VDC); 4.2W (PoE)
Max. (H.265+ warm light+ intelligence on + WDR): 8.9 W (12 VDC); 11.6W (PoE)

Environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)/Less than 95% RH

Storage Temperature

–40°C to +60°C (–40°F to +140°F)

Protection

IP67

Storage Humidity

10%–95% (RH), non-condensing

Structure

Casing

Metal

Product Dimensions

238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)

Net Weight

825g (1.82 lb)

Gross Weight

1054g (2.32lb)
