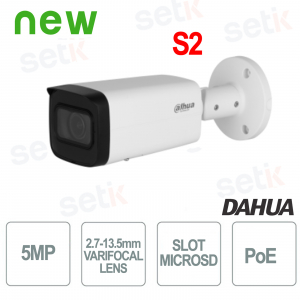

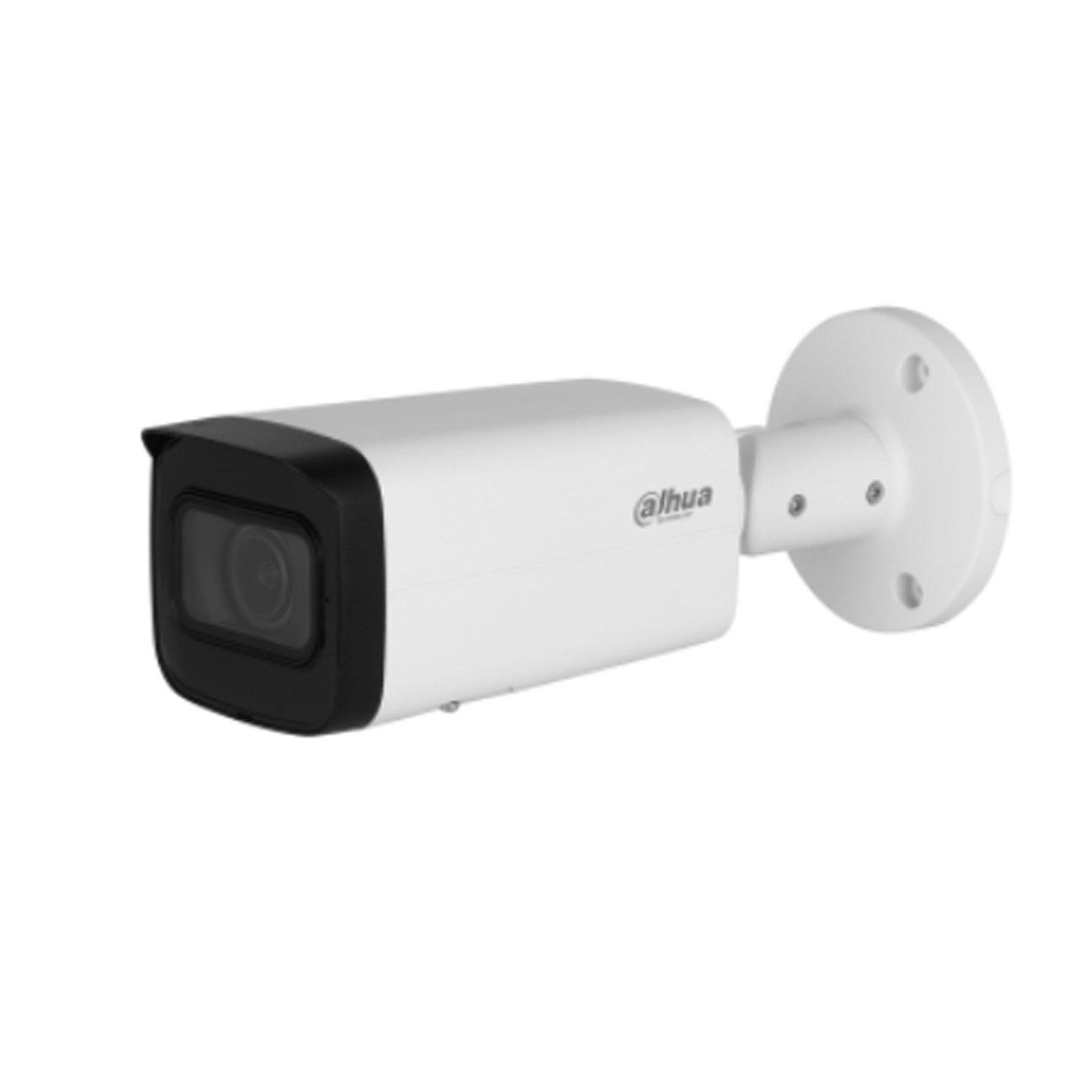

ONVIF PoE outdoor IP camera Dahua IPC-HFW2541T-ZS-S2 5MP 5 Megapixel , Varifocal optics 2.7-13.5mm, CMOS 1/2.7" H.265+ compression. Video Analysis , IR lighting distance 60m WDR 120dB, Day/Night (ICR), BLC, HLC, 3D NR MicroSD slot 256 GB , ROI, Motion detection, video tampering, audio detection IP67 protection, IK10 Version S2 Dahua
https://www.setik.biz/en/cameras/10055-dahua-ipc-hfw2541t-zs-s2-outdoor-ip-camera-onvif-poe-5mp-27-135mm-wizsense-s2-dahua.html
€225.37
€524.11 -57%
taxes included
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE IP CAMERA - 5 MEGAPIXEL 2.7-13.5MM - VIDEO ANALYSIS - MICROSD SLOT - S2 VERSION
ONVIF® PoE S2 outdoor IP camera - Dahua
5Megapixel Resolution - 1/2.7 CMOS Sensor - 2.7-13.5mm Varifocal Lens - H.265+ Compression
Video Analysis - WDR 120dB - Day/Night (ICR) - 3DNR - BLC - HLC
MicroSD slot - 12V DC power supply (not included) - 24 month warranty
5Megapixel Resolution - 1/2.7 CMOS Sensor - 2.7-13.5mm Varifocal Lens - H.265+ Compression
Video Analysis - WDR 120dB - Day/Night (ICR) - 3DNR - BLC - HLC
MicroSD slot - 12V DC power supply (not included) - 24 month warranty
Product details
- S2 version
- ONVIF® PoE outdoor IP camera - Dahua
- Resolution: 5 Megapixel 5MP
- 1/2.7 CMOS image sensor
- Varifocal lens 2.7-13.5mm
- Video Compression H.265 +
- WDR(120dB) , Day/Night (ICR), 3DNR, BLC, HLC
- Smart IR illuminator 4 LEDs 60MT
- Video Analysis: Line Crossing, Intrusion
- Motion detection, video tampering, audio detection
- IP67 protection (Dust/Immersion)
- IK10
- 12V DC power supply (Not Included)
- MicroSD slot (Max 256GB not included)
- Dimensions: 238.5mm × 90.7mm × 90.7mm (9.39" × 3.57" × 3.57")
- Metal
- 24 Month Warranty
Data sheet
| Model | IPC-HFW2541T-ZS-S2 |
| Room | |
| Image Sensor | 1/2.7” CMOS |
| Effective Pixels | 2592 (H) × 1944 (V) |
| ROM | 128MB |
| RAM | 256MB |
| Scanning System | Progressives |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| IR Distance | 60 m (196.85 ft) (IR) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Openings | F1.5 |
| Field of View | H: 113°–31°; V: 58°–18°; D: 138°–36° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codecs | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32Kbps–8192Kbps H.265: 12Kbps–8192Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestones |
| User/Host | 20 (Total bandwidth: 48M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256GB); NAS |
| Browsers | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 2.4W (12VDC); 3.1W (PoE); Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 7 W (12 VDC); 8.4W (PoE) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperatures | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection Grade | IP67; IK10 (optional) |
| Structure | |
| Casing | Metal |
| Dimensions | 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H) |
| Net Weight | 0.74 kg (1.63 lb) |
| Gross Weight | 0.98kg (2.16lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
5.0MPX resolution, means 12 times the resolution of a common D1 camera :
|
 |
Varifocal lens 2.7-13.5mm |
 |
This camera provides VIDEO ANALYSIS (IVS):
|
|
|
Smart IR illuminator 4 LEDs 60 meters |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically. |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...). |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light.  |
 |
Possibility to insert Micro SD up to a maximum of 256GB (Not Included) |
 |
Protection level IP67 (Dust / Immersion) |
 |
12V DC power supply NOT included!
|
 |
This product is covered by a 24 month warranty. |
