ONVIF POE IP camera - Dahua - IPC-HDW2441TM-S - 4MP Resolution - CMOS 4MP 1/2.9" - 2.8mm lens - IR 30m (1LED) - Smart Codec H.265+ - Dual Stream - BLC - HLC - WDR 120dB - ROI - 3DNR - Video Analysis - Integrated microphone - Event alarm - 256GB MicroSD slot (not included) - IP67 outdoor protection against dust and splashes.
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

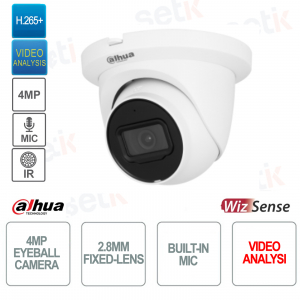

4MP EYEBALL IP POE ONVIF® FIXED CAMERA - 2.8MM LENS - VIDEO ANALYSIS - MICROPHONE - DAHUA - IPC-HDW2441TM-S
4MP resolution - 2.8mm fixed lens - Compression up to H.265+ - 1/2.9" CMOS sensor
IR illuminator 1 LED 30Meters - WDR 120dB - BLC - HLC - 3DNR - Mirror - Privacy Masks - Video Analysis : perimeter protection, intrusion detection, Smart Search - Built-in microphone - Event alarm -
256GB Micro SD slot (not included) - RJ45 100M - IP67 outdoor protection - 24 month warranty
Product details
- Eyeball IP camera - For outdoor IP ONVIF® PoE - Dahua - IPC-HDW2441TM-S
- Resolution: 4 MP - 2688 (H) × 1520 (V)
- 1/2.9" 4MP CMOS image sensor
- Fixed lens: 2.8mm
- Video compression up to H.265+
- Dual Stream
- Functions: WDR(120dB) , Day/Night(ICR), 3DNR, BLC, 3DNR, Mirror Mode, Privacy Masking
- Motion Detection
- Video Analysis: Line crossing, intrusion
- IR illuminator 1 LED 30 Meters
- Built-in microphone
- IP67 protection (Dust/Immersion)
- Suitable for indoor/outdoor environments
- PoE protocol supported
- MicroSD slot (up to 256GB not included)
- Dimensions: 99.1mm × Φ121.9mm
- Material: metal and plastic
- Operating temperature: –40 °C to +60 °C
- Net weight: 0.48kg
- 24 Months Italian Warranty
Data sheet
IPC-HDW2441TM-S | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.9" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 2688(H)×1520(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.006 lux@F1.6 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 30 m (98.43 ft) (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Car; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 1 (IR LED) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 6 (Total bandwidth: 36M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browsers | IE; Chrome; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | DSS; DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN 62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12 VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 2.5W (12VDC); 3.3W (PoE); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Inner core: Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.48 kg (1.06 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.68kg (1.5lb) |
Further details
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems This camera supports Onvif version! | |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation | |
This camera features a resolution of 4 Megapixels! Maximum resolution: 2688 (H) × 1520 (V), progressive image scanning. Supported resolutions:
| |
Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression | |
This camera has a 2.8mm fixed lens | |
Infrared illuminator with 1 LED and 30 meter range | |
Remote visibility on mobile using the Dahua DMSS application. | |
This camera provides VIDEO ANALYSIS (IVS) functions: | |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where you need to operate in conditions of high light/shadow contrast. Fundamental when shooting from inside to outside, license plates, shadowed points or all situations where there is no homogeneity of light. | |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically. | |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. | |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where recording is difficult (entrances or exits of car parks, recording of license plates, presence of particular lights etc...). | |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in the presence of little light and in motion, the currently most powerful solution for obtaining maximum results in the presence of little light. | |
This camera is equipped with an on-board microphone | |
Possibility to insert Micro SD up to a maximum of 256Gb - not included | |
Protection level IP67 (Dust / Immersion) | |
12V DC power supply NOT included! | |
This product is covered by a 24 month warranty. |
