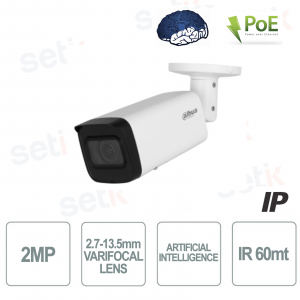

AI IP Camera PoE 2MP Motorized Varifocal 2.7-13.5mm Alarm and Audio WDR IP67 IK10 - Dahua

BEST PRICE -58%

IPC-HFW2241T-ZAS Dahua AI Outdoor IP Camera Onvif PoE with Artificial Intelligence AI SSA , 2 Megapixel 2MP , 1/2.8" CMOS sensor, 2.7-13.5 lens with motorized zoom and compression up to H.265+ . Smart IR illuminator 4 LED 60MT , Day/Night (ICR), Alarm and Audio, WDR 120dB, Perimeter Protection, AI SSA Intelligent Search, intrusion, tripwire, SMD Plus, ROI, Mirror, BLC, HLC, MicroSD Slot, IP67/IK10.

Reference: IPC-HFW2241T-ZAS

Brand: Dahua

EAN: 6923172548559

FIND INSTALLER

https://www.setik.biz/en/cameras/10028-dahua-ipc-hfw2241t-zas-camera-ai-ip-poe-2mp-motorized-vari-focal-27-135mm-alarm-and-audio-wdr-ip67-ik10-dahua.html

€179.34

€427.00 -58%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL WITH ARTIFICIAL INTELLIGENCE - DAHUA

ONVIF® PoE IP Camera - Dahua AI Series
2Megapixel Resolution - 2.7-13.5mm Lens with Motorized Zoom - 1/2.8" CMOS
CMOS Sensor - Day/Night (ICR) - WDR 120dB - Smart IR Illuminator 4 LEDs 60MT, Alarm and Audio
Perimeter Protection, AI Smart Search SSA, Intrusion, Tripwire - MicroSD Slot (256GB Not Included)

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

Outdoor PoE AI IP Camera - Dahua
Resolution 2Megapixel FULL HD 1080P
2.7-13.5mm varifocal lens with motorized zoom
1/2.8” CMOS sensor !
Video compression up to H.265+
Alarm: 1 input, 1 output
Audio: 1 input, 1 output
Double Stream
WDR 120dB - Day/Night (ICR) - 3DNR,BLC
Smart IR illuminator 4 LEDs 60MT
Artificial Intelligence : Line Crossing, Intrusion (People & Vehicle Classification), Quick Choice, Intelligent Search
Remote viewing with DMSS, DSS, Smart PSS
Micro SD memory slot (Up to 256GB - not included)
IP67 / IK10 protection (indoor/outdoor)
Material: Metal
Dimensions: 238.5mm × 90.7mm × 90.7mm
Power supply NOT included
24 month warranty

Technical data sheet

Model	IPC-HFW2241T-ZAS
Room
Image Sensor	1/2.8” CMOS
Effective Pixel	1920(H)x1080(V)
ROM/RAM	128MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Min. Illumination	0.002 lux@F1.5 (Color, 30 IRE) 0.0002 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
Y/N Ratio	>56dB
IR Distance	60 m (196.85 ft)
IR On/Off Control	Auto/Manual
IR LEDs	4 (IR LEDs)
Pan/Tilt/Rotation Range	Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Mount Type	φ14
Focal Length	2.7mm–13.5mm
Max. Openings	F1.5
Field Of View	Horizontal: 108°–30° Vertical: 56° –17° Diagonal: 131°–35°
Iris Type	Fixed
Close Focus Distance	0.8 m (2.62 ft)
Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+ Smart H.264+
AI Coding	AI H.265 AI H.264
Video Frame Rate	Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	2 streams
Resolution	1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bitrate Control	CBR/VBR
Video Bitrate	H.264: 32kbps–6144kbps H.265: 12kbps–6144kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120dB
White Balance	Car; natural; street lamp; outdoor; manual; regional custom
Gain Control	Manual;Auto
Noise Reduction	3D DNR
Motion Detection	OFF/ON (4 areas, rectangular)
Region Of interest	Yes (4 areas)
Smart Lighting	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 1920 × 1080 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMD; security exception
Network
Ethernet	RJ-45 (10/100Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability	ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host	6 (Total bandwidth: 36M)
Edge Storage	FTP; SFTP; Micro SD card (support max. 256G)
Browser	IE Chrome Firefox
Management Software	Smart PSS; DSS; DMSS
Smartphone	IOS; Android
Cyber Security	Video encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades
Certification
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5mA 3V–5V DC
AlarmOutput	1 channel out: 300mA 12V DC
Power
Power Supply	12VDC/PoE (802.3af)
Power Consumption	Basic: 2W (12 VDC); 2.6W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.6 W (12 VDC); 9.9W (PoE)
Environment
Operating Conditions	–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage conditions	–40 °C to +60 °C (–40 °F to 140 °F)
Ingress Protection	IP67, IK10 (optional)
Structure
Casing	Metal
Dimensions	238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)
Net Weight	0.76 kg (1.7 lb)
Gross Weight	1.02 kg (2.2 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board This means that it has a wide range of advanced features such as: - Perimeter protection: Intrusion, Line crossing (people & vehicles classification) - TO THE SSA - Quick Choice - Smart Search
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	This camera features a resolution of 2Megapixel 1080P FULL HD
	2.7-13.5mm varifocal lens with motorized zoom Motorized zoom example
	Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
	Infrared illuminator with approximate maximum range of 60m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	Remote visibility on mobile using Dahua DMSS application.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	Power supply NOT included
	This product is covered by a 24 month warranty.
