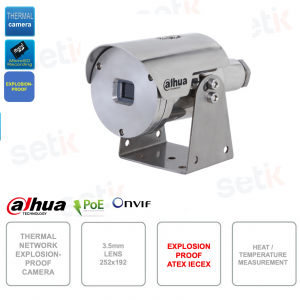

IP POE THERMAL CAMERA DAHUA PROFESSIONAL WITH TEMPERATURE / HEAT MEASUREMENT - EXPLOSION PROOF ATEX IECEX - DAHUA - TPC-AEBF5201-TB3-DW-S4-G
Dahua POE IP Thermal Camera - TPC-AEBF5201-TB3-DW-S4-G
3.5mm lens - Image resolution 292x192 pixels - Sensitivity: 35mK - Visual spectrum: 8-14uM - ATEX IECEX explosion-proof - Heat / Temperature detection - People detection (up to 150m) + vehicle detection (up to 400m) - 1x RJ45 LAN Ethernet 100Mbps Base-T port - 1x RS485 - 2 alarm inputs and 1 alarm output - 12 rules for Temperature detection - 256GB MicroSD slot (Not included) - Ideal for outdoor use - Supports ePoE power supply - IP68 and TVS 6000 lightning protection.
WHAT IS THERMAL SENSING?Any object with a temperature above absolute zero (-273.15°C) emits radiation. Infrared radiation is between the visible spectrum (0.4-0.75um) and microwaves (>15um). Even if we cannot see it, we perceive it every day: the sun and fire are sources of infrared radiation that we can perceive through heat. The quality of images depends on the temperature difference and high differentials produce better images. This is how we distinguish the temperature difference in thermal imaging.  THERMAL DETECTION AND MEASUREMENT OF BODY TEMPERATURE Thermal detection has evolved over the years and thanks to the many requests and numerous areas of use in surveillance, we have come to have thermal cameras that can measure people's body temperature .  |
Product details
- POE ONVIF IP thermal camera - Dahua - TPC-AEBF5201-TB3-DW-S4-G
- Thermal resolution 252x192
- Explosion Proof: Explosion Proof ATEX IECEX
- Temperature and heat detection
- People detection up to 150m
- Vehicle detection up to 400m
- Sensitivity: up to 35 mK
- 3.5mm thermal optics
- Visual spectrum: 8-14 μm
- 1 RJ45 100 Mbps Ethernet LAN port
- 1 RS485 port
- Alarm: 2 inputs and 1 output
- Temperature detection (12 rules)
- Micro SD card slot (up to 256 GB, not included)
- Device power supply: 12 Vdc/PoE
- Supports PoE power supply: Power Over Ethernet
Technical data sheet
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detector Type | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 256 (H) × 192 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PixelPitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range | 8 μm–14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD) | ≤35mK (@f/1.0) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 3.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 3.5mm: H: 50.6°; V: 37.8° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Focus Control | F1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detection Distance | Vehicle: 400 m (1,312.34 ft); Human: 150 m (492.13 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recognition Distance? | Vehicle: 100 m (328.08 ft); Human: 38 m (124.67 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Identification Distance? | Vehicle: 50 m (164.04 ft); Human: 19 m (62.34 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Notes: ?Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image). ?Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image). ?Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image). | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Detail Enhancement (DDE) | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal AGC | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal Noise Reduction | 2D NR/3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ImageFlip | 180°; Mirror | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Range | Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F) High temperature mode: +100 °C (+212 °F) to +550 °C (+1022 °F) Auto mode | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Accuracy | Max. (±2 °C, ±2%) Operating temperature: –20 °C (–4 °F) to +50 °C (+122°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature Measurement Mode | Spots: 12 Line: 12 Area: 12 Support 12 rules simultaneously | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression | H.264 (High, Main); M-JPEG; H.265 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | Main stream: 1280 × 960 ; 1024×768; 640×480; 256×192; 1280 × 960 (default) Sub stream: 640×480; 256×192; 256 × 192 (default) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate | Thermal: 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Encoding Format | JPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems |
 | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm Thermal camera resolution 292x152 pixels |
 | Explosion Proof Product: Explodion Proof ATEX IECEX Certification: II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db |
 | This camera features SMART DETECTION - People / Vehicle Classification - Smoke Detection - Temperature detection - Heat detection |
 | Thermal Camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean? |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event. This Camera has 2 Inputs and 1 Output |
 |
|
 | Possibility to insert Micro SD up to 256GB - not included, sold separately |
 | Protection level IP68 (Dust / Continuous immersion) |
 | This product is covered by a 24 month warranty. |
