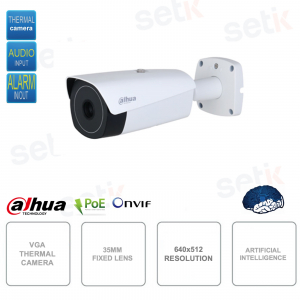

ONVIF POE IP Thermal Camera - artificial intelligence - Version S2

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640(H)×512(V)

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤35 mK (@f/1.0)

Focus Control

Fixed focus

Openings

F1.0

Focal Length

13 mm

Field of View

H: 37°; V: 28°

Close Focus Distance

4 m (13.12 ft)

Detection Distance?

Vehicle: 1,666 m (5,465.88 ft);

Human: 541 m (1,774.93 ft)

Recognition Distance?

Vehicle: 408 m (1,338.58 ft);

Human: 139 m (456.04 ft)

Identification Distance?

13 mm: Vehicle: 206 m (675.85 ft);

Human: 69 m (226.38 ft)

Note:

?Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image).

?Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image).

?Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Temperature Measurement Range

Low temperature mode:

–20 °C (–4 °F) to +150 °C (+302 °F)

High temperature mode:

0 °C (+34 °F) to +550 °C (+1022 °F)

Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)

Operating temperature: –20 °C (–4 °F) to

+60°C (+140°F)

Temperature Measurement Mode

Spots: 12

Line: 12

Area: 12

Supports 12 rules simultaneously

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Resolution

Thermal:

Main stream: 1280×1024; 1280×720; 640×512; 1280 × 1024 (default)

Sub stream: 640 × 512; 320×256; 640 × 512 (default)

Video Frame Rate

Thermal (50Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Thermal (60Hz):

Main stream: 1 fps–30 fps,30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Audio Compression

G.711a; G.711mu; AAC; PCM

Image Encoding Format

JPEG

Function

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

Storage

FTP; Micro SD card (optional)

Interoperability

ONVIF; CGI; DaHua SDK

Browsers

IE; Firefox; Chrome

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC
address; encrypted HTTPS; IEEE 802.1x; controlled
network access

User Management

Up to 20 users; supports multi-level user permissions (2
levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection;
memory card state detection; memory space detection

Micro SD Card (Max.)

512GB

Intelligence

Heat Detection

Yes

Cold/Hot Spot Trace

Yes

This camera is a THERMAL CAMERA .

Sensitivity 40mK

Visual spectrum from 8 to 14µm

Thermal Sensor:
Uncooled VOx Microbolometer

This camera has a 13mm fixed lens!

People Detection: 541 m
Mobile Vehicle Detection: 1,666 m

This camera provides advanced intelligent functions:
- Fire detection and alarm
- Perimeter protection

This camera has 1 Video Output (CVBS/BNC)

Possibility of inserting a Micro SD up to a maximum of 256GB - not included

This camera was made of metal
