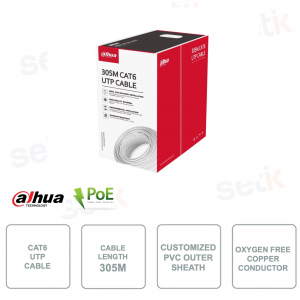

UTP CAT6 network cable - 305 meters - PoE compatible - PVC sheath

UTP CAT6 network cable - 305 meters - PoE compatible - PVC sheath
-59%

UTP CAT6 network cable - Dahua - PFM923I-6UN-C - Length 305 Meters - PoE compatible - High purity oxygen free copper conductor - White color - External sheath in treated PVC - Diameter 6.0 mm ± 0.3 mm - External sheath in PVC , flame retardant class CE CPR eca Certified.

Reference: PFM923I-6UN-C

Brand: Dahua

EAN: 6939554998614

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

UTP CAT6 CABLE - SKEIN OF 305 METERS - POE COMPATIBLE - PVC SHEATH - COPPER CONDUCTOR - DAHUA - PFM923I-6UN-C

Prodotto marca Dahua
PFM920I-5EUN - UTP CAT6 Network cable - Length: 305 Meters - PoE compatible - High purity oxygen-free copper conductor - Treated PVC outer sheath - CE CPR eca flame retardancy class Certificate - Quality product - Warranty 10 years of the manufacturer.

Product details

  • UTP CAT6 network cable - Dahua - PFM923I-6UN-C
  • 305 Meter coil
  • Copper conductor (high purity, oxygen free)
  • Diameter: 6.0mm ± 0.3mm
  • White color
  • Separator material: PE
  • Rip Cord Material: Polyester
  • Insulation material: HDPE
  • Treated PVC sheath
  • Net weight: ≥10.5kg
  • Flame retardancy class: CE CPR eca Certified
  • 10 year manufacturer's guarantee
Cavo UTP

Data sheet

PFM923I-6UN-C

Conductor

Material

Oxygen-free copper (99.97% purity)

Diameter

0.53mm ± 0.01mm

insulation

Material

HDPE

Min. Average Thickness

0.21mm

Diameter

0.95mm ± 0.1mm

Color (4 Pairs)

blue, white/blue; orange, white/orange; green, white/green; brown, white/brown

separator

Material

PE

specification

Translucent 4.5×0.4mm

Rip Cord

Material

Polyester

specification

500D

Sheath

Material

LSZH extension

Min. Average Thickness

0.5mm

Diameter

6.0mm ± 0.3mm

Color

White

Electrical

DC Resistance of a Single Conductor

8.7Ω/100m

Min. Insulation Resistance

5000MΩ km

DC Resistance Unbalance

2% (intra pairs), 4% (inter pairs)

Dielectric Strength

No breakdown with 1KV DC for 1 min

Transmission

Characteristic Impedance

100±15Ω

Near End Cross Talk

≥39.30dB/100m@250MHz

Max. Attenuation

34.8dB/100m@250MHz

Return Loss

≥17.3dB/100m@250MHz

Mechanical

Tensile Strength

Sheath≥10MPa, insulation≥16MPa

Elongation at Break

Sheath≥125%, insulation≥300%

Installation Bending Radius

>8 times of outer cable diameter

Conductor Elongation at Break

≥10%

environmental

Shrinkage of insulation

≤5%

Color Migration Resistance of Insulation

No migration

Sheath Tensile Strength and Elongation at Break after Aging

≥8MPa, ≥100%

Low Temperature Bending Test

No cracking after the test

Heat Shock Test

No cracking after the test

Operation Temperature

–20°C to +60°C (–4°F to 140°F)

Installation Temperature

0°C to +50°C (32°F to 122°F)

Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)

Security

Vertical Fire Propagation Test

Comply with IEC 60332-1-2

Packaging

Cable Length

305.0m (1000.66ft) ± 1.5m (4.92ft)

Inner Carton Dimensions

416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H)

Packing Method

305.0 m (1000.66 ft) a carton, one carton with 2 inner cartons

Net Weight

≥10.5kg (23.15lbs)

Gross Weight

≥11.5kg (25.35lbs)

Compliance

Executive Standards

Q/DXJ 067-2019, EN50575-2014

Certification

Certification

CPR Eca

Further details
