UTP CAT5e Cable, 305 Meters, PoE up to 160m, High purity oxygen free copper conductor 99.97% - LSZH outer sheath - CE CPR flame retardancy class E Certified - Dahua - PFM923I-5EUN-C
FIND INSTALLER
€145.31
€337.94 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

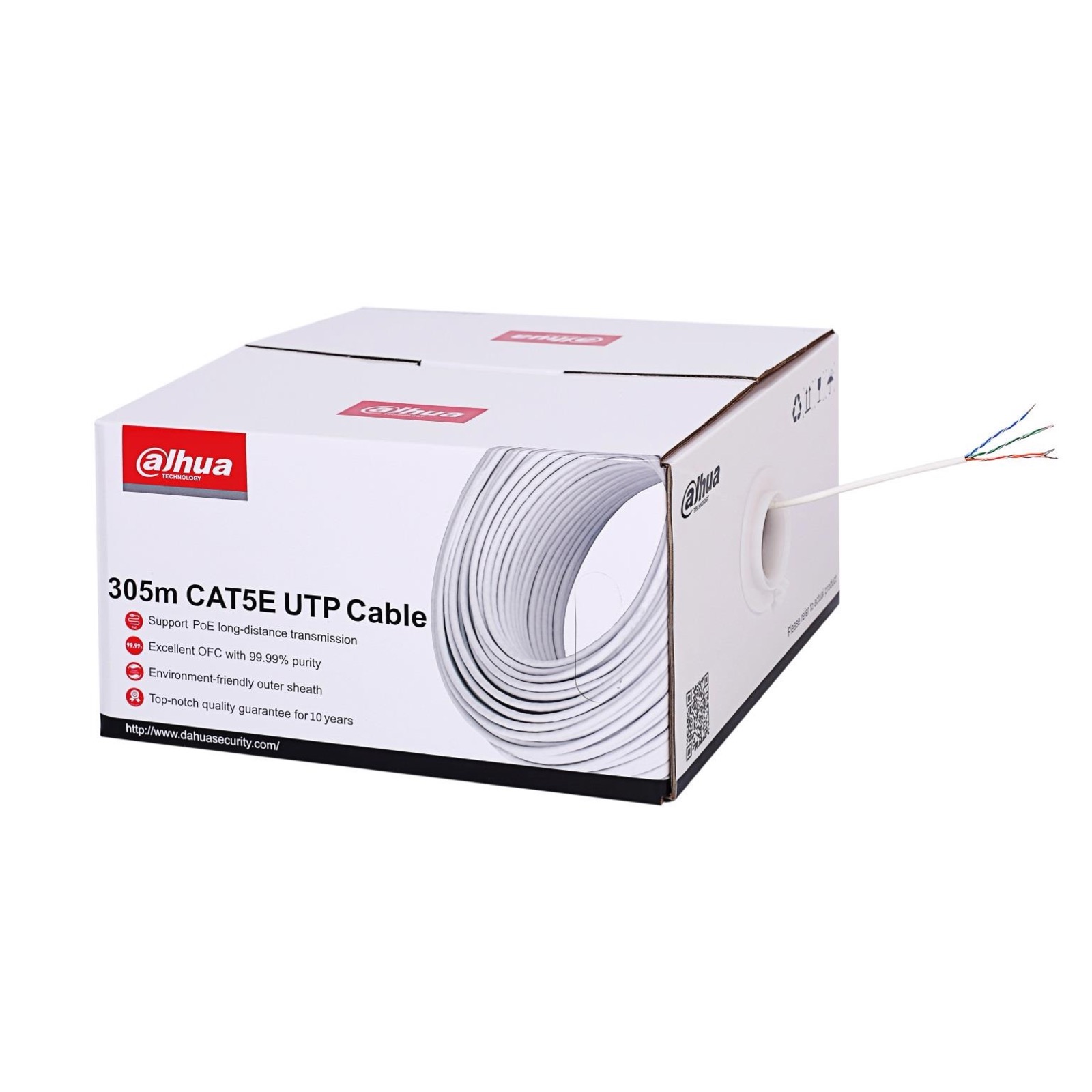

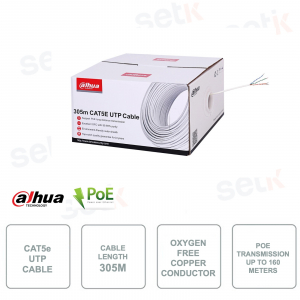

UTP CAT5e CABLE 305 METERS - POE UP TO 160 METERS - DAHUA - PFM923I-5EUN-C
Product details
- UTP CAT5e cable - Dahua - PFM923I-5EUN-C
- 305 Meter coil
- Support PoE power supply up to 160m
- Conductor in high purity Oxygen Free 99.97% Copper
- LSZH sheath
- CE CPR E Certified flame retardant class
- Diameter: 0.83mm±0.05mm
- Product excluded from warranty
Data sheet
model | PFM923I-5EUN-C | |

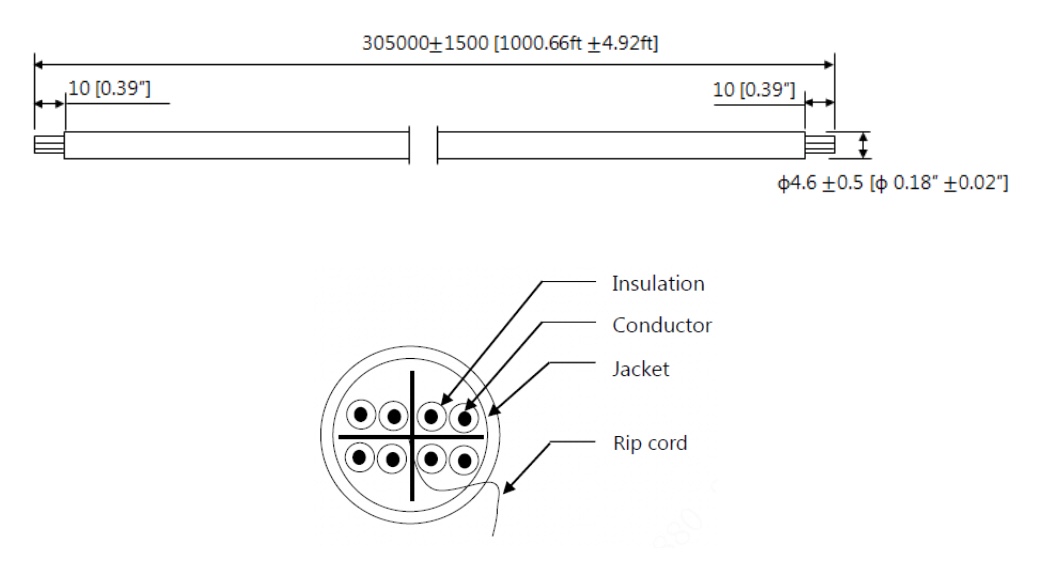

structure | ||
Conductor | Material | OFC (oxygen-free copper) |
structure | 4P*0.45±0.01mm | |
insulation | Material | HDPE |
Min. average thickness | 0.195mm | |
Diameter | 0.83mm±0.05mm | |
Color(4 Pairs) | White/Blue, Blue; White/Orange, Orange; White/Green, Green; White/Brown, Brown | |
Rip Cord | Yes | |
jacket | Material | LSZH, meet the requirement of CPR E class |
Min. average thickness | 0.4mm | |
Diameter | 4.6±0.5mm | |
surface | Smooth, full and tight | |
Color | White | |
General | Length | 305m(1000.66ft) |
Packaging dimension | 360mmx360mmx210mm(14.17”x14.17”x8.27”) | |
Weight (with packaging) | 8.5kg(18.74lb) | |
Mechanical Properties | ||
insulation | Tensile strength | ≥16MPa |
Elongation at break | ≥300% | |
Peeling property | No damage to insulation or conductor | |
jacket | Tensile strength | Before aging: ≥10.0MPa After aging: ≥8.0MPa |
Elongation at break | Before aging: ≥125% After aging: ≥100% | |
Aging condition | 100?*24h*7d | |
Peeling property | No damage to insulation, cold bending (-20C *4h), the outer diameter of the cable is 8 times, without cracking. | |
Electrical Performance (20?) | ||
Characteristic Impedance (1-250MHz) | 100±15Ω | |
DC Resistance | ≤12.0Ω/100m | |
Max. Unbalance Rate of Line Pairs' Direct Current | ≤5% | |
time delay | ≤45ns/100m | |
Max. Mutual Capacitance | 5.6nF/100m | |
Min. Insulation Resistance | 5000M?km | |
Further details
 | Components which by their nature or due to normal wear, tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
