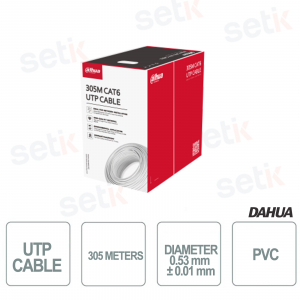

Dahua UTP 305 Meters - CAT6e - PVC - Dahua cable

Dahua UTP 305 Meters - CAT6e - PVC - Dahua cable
-57%

UTP CAT6e Cable, 305 Meters, Copper Conductor, PVC Outer Sheath, Diameter 0.53 ± 0.01mm, CE CPR flame retardancy class eca Certificate
PFM920I-6UN-C



Reference: PFM920I-6UN-C

Brand: Dahua

EAN: 6939554998560

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

UTP CAT6e 305 METERS CABLE - DAHUA

Prodotto marca Dahua PFM920I-6UN-C - UTP CAT6e Cable, 305 Meters, Copper Conductor, PVC Outer Sheath, CE CPR flame retardancy class eca Certificate
Quality product

Product details

  • UTP cable - Dahua
  • 305 Meters
  • CAT6e
  • Copper conductor
  • Diameter: 0.53 mm ± 0.01 mm
  • Product excluded from warranty
Cavo UTP

Data sheet

Model PFM920I-6UN-C
Conductor
Material Oxygen free copper (99.97% purity)
Diameter 0.53 mm ± 0.01 mm
Insulation
Material HDPE
Min. Average Thickness 0.21 mm
Diameter 0.95 mm ± 0.1 mm
Color (4 Pairs) Blue, white / blue; orange, white / orange; green, white / green; brown, white / brown
Separator
Material PE
Specification Translucent 4.5 × 0.4 mm
Rip Cord
Material Polyester
Specification 500D
Sheath
Material PVC
Min. Average Thickness 0.5 mm
Diameter 6.0 mm ± 0.3 mm
Color White
Electrical
Max. DC Resistance of a Single Conductor 8.7Ω / 100m
Min. Insulation Resistance 5000MΩ km
Max. DC Resistance Unbalance 2% (pairs intra), 4% (pairs inter)
Dielectric Strength No breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance 100 ± 15Ω
Near End Cross Talk ≥39.30 dB / 100 m @ 250 MHz
Max. Attenuation 34.8 dB / 100 m @ 250 MHz
Return Loss ≥17.3 dB / 100 m @ 250 MHz
Mechanical
Tensile Strength Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break Sheath≥150%, insulation≥300%
Installation Bending Radius > 8 times of outer cable diameter
Conductor Elongation at Break ≥10%
Environmental
Shrinkage of Insulation ≤5%
Color Migration Resistance of Insulation No migration
Sheath Tensile Strength and Elongation at Break after Aging ≥12.5 MPa, ≥100%
Low Temperature Bending Test No cracking after the test
Heat Shock Test No cracking after the test
Operating Temperature –20 ° C to + 60 ° C (–4 ° F to 140 ° F)
Installation Temperature 0 ° C to + 50 ° C (32 ° F to 122 ° F)
Storage Temperature and Humidity -10 ° C to + 40 ° C (14 ° F to 104 ° F), <60% (RH)
Security
Vertical Fire Propagation Test Comply with IEC 60332-1-2
Packaging
Cable Length 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Inner Carton Dimensions 416.0 mm × 412.0 mm × 220.0 mm (16.38 "× 16.22" × 8.66 ") (L × W × H)
Packaging Method 305.0 m (1000.66 ft) a carton, one master carton with 2 inner cartons
Net Weight ≥10.5 kg (23.15 lb)
Gross Weight ≥11.5 kg (25.35 lb)
Executive Standards Q / DXJ 067-2019, EN50575-2014
Certification CPR Eca
