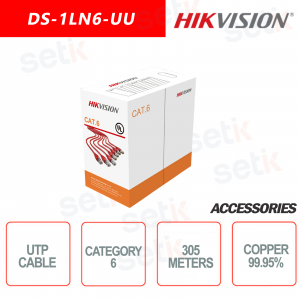

UTP Cable Hikvision DS-1LN6-UU 305 Meters Coil, Orange Cover, Diameter 0.565mm , Copper 99.95% , category 6 with PVC sheath, Compatible with Balun.
FIND INSTALLER
https://www.setik.biz/en/cables/7616-hikvision-ds-1ln6-uu-utp-cable-category-6-305-meters-copper-9995-hikvision.html
€407.60
€627.08 -35%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-1LN6-UU | UTP CABLE - HIKVISION
UTP Hikvision DS-1LN6-UU cable 305 Meters Spool, Orange Lid, 0.565mm Diameter , Copper 99.95% category 6 with PVC sheath, Compatible with Balun.
Data sheet
| DS-1LN6-UU | |
| Material | Aviation Aluminum |
| Category | U / UTP CAT6-4P-PVC-CM |
| Reference Standard | ISO / IEC11801 、 TIA-568-C.2 、 UL444 |
| Conductor | |
| Material | SOLID-Bare Copper Content 99.95% |
| Nom.OD (mm) | 0.565 (23AWG) up +0.005 down -0.005 |
| Insulation | |
| Material | HDPE |
| Diameter | 1.02 ± 0.05mm |
| Sheath | |
| Thickness | 0.55 ± 0.05 mm |
| External OD | 6.2 ± 0.4 mm |
| Surface | Clean, Frap, Satiation |
| Matter | PVC (complies RoHS), CM |
| Color | Orange RAL2003 |
| Surface Printing | |
| Letter height | 3.0 ± 0.3mm |
| Color | Black |
| Print error & Space | ≤ ± 0.5% ， 1m |
| Core Color | |
| 1 White- Blue / Blue | 2 White-Orange / Orange |
| 3 White-Green / Green | 4 White- Brown / Brown |
| Packing | Wooden Tray & Carton |
| Packing length | 305 ± 1.5m |
| Rip-cord | Yes Drain wire No |
| Sheath Physical Properties | |
| Before Aging Tensile Strength (Mpa) ≥13.5 | |
| Elongation (%) ≥150 | |
| Aging Period (℃ × hrs) 100 ℃ × 24h × 10d | |
| After Aging Tensile Strength (Mpa) ≥12.5 | |
| Elongation (%) ≥125 | |
| Cold bend (-20 ± 2 ℃ × 4h) 8 × Cable OD ， No visible cracks | |
| Electrical Characteristics (20 ℃) | |
| 1.0-250.0MHz Impedance ((Ω) 100 ± 15 | |
| 1.0-250.0MHz Delay Skew (ns / 100m) ≤45 | |
| DC Resistance (Ω / 100m) max 9.38 | |
| DC Conductor Resistance Unbalance (%) max 5.0 | |
| Ambient | |
| temperatures: -20 ℃ - 75 ℃ | |
