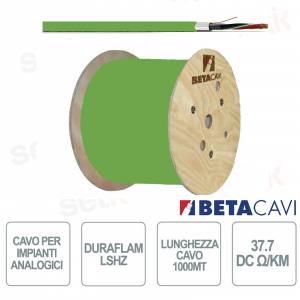

HD 4205 C_W1000 - Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoors and outdoors, with green Duraflam LSZH sheath. Wooden reel - Suitable for installation in coexistence with cables for category systems. Resistance 37.7 (DC Ω/KM) - Formation (mm2) Coax+2x0.50 - External diameter 7.00mm - Cable length 1000m - Beta Cavi



Reference: HD 4205 C_W1000

Brand: BETA CAVI

FIND INSTALLER





Did you know that... WE ARE BETACAVI DISTRIBUTORS?
Discover all the BETACAVI products in our catalogue

CABLE FOR ANALOGUE VIDEO SURVEILLANCE SYSTEMS - EUROCLASS ECA - DURAFLAM LSHZ - CABLE LENGTH 1000MT - BETA CABLES

Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoor and outdoor, Wooden reel.
Suitable for installation in coexistence with cables for category systems.
Resistance 37.7 (DC Ω/KM), Formation (mm2) Coax+2x0.50, External diameter 7.00mm, Cable length 1000m
HD 4205 C_WF.jpg

Product details

  • Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoor and outdoor
  • Wooden reel
  • Suitable for installation in coexistence with cables for category systems
  • Resistance 37.7 (DC Ω/KM)
  • Formation (mm2) Coax+2x0.50
  • External diameter 7.00mm
  • Cable length 1000m
  • Certifications: CEI EN 50117, CEI UNEL 36762, CEI 20-37, EN 50575

Data sheet

Model HD 4205 C_W1000
Training (mm2) Coax+2x0.50
resistance (DC Ω/KM) 37.7
Internal Installation Yes
External Installation Yes
External diameter (mm) 7.00
Material and color of the outer sheath LSZH green
CPR reaction to fire classification Cca s1b d1 a1

coaxial cable table.jpg

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
