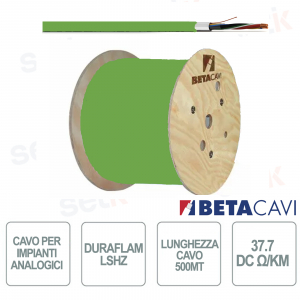

HD 4205 C_WF500 - Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoors and outdoors, with green Duraflam LSZH sheath. Wooden reel - Suitable for installation in coexistence with cables for category systems. Resistance 37.7 (DC Ω/KM) - Formation (mm2) Coax+2x0.50 - External diameter 7.00mm - Cable length 500m - Beta Cavi
FIND INSTALLER
 Did you know that... WE ARE BETACAVI DISTRIBUTORS? Discover all the BETACAVI products in our catalogue |
CABLE FOR ANALOGUE VIDEO SURVEILLANCE SYSTEMS - EUROCLASS ECA - DURAFLAM LSHZ - CABLE LENGTH 500MT - BETA CABLES
Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoor and outdoor, Wooden reel.
Suitable for installation in coexistence with cables for category systems.
Resistance 37.7 (DC Ω/KM), Formation (mm2) Coax+2x0.50, External diameter 7.00mm, Cable length 500m
Suitable for installation in coexistence with cables for category systems.
Resistance 37.7 (DC Ω/KM), Formation (mm2) Coax+2x0.50, External diameter 7.00mm, Cable length 500m
Product details
- Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoor and outdoor
- Wooden reel
- Suitable for installation in coexistence with cables for category systems
- Resistance 37.7 (DC Ω/KM)
- Formation (mm2) Coax+2x0.50
- External diameter 7.00mm
- Cable length 500m
- Certifications: CEI EN 50117, CEI UNEL 36762, CEI 20-37, EN 50575
Data sheet
| Model | HD 4205 C_WF500 |
| Training (mm2) | Coax+2x0.50 |
| resistance (DC Ω/KM) | 37.7 |
| Internal Installation | Yes |
| External Installation | Yes |
| External diameter (mm) | 7.00 |
| Material and color of the outer sheath | LSZH green |
| CPR reaction to fire classification | Cca s1b d1 a1 |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
