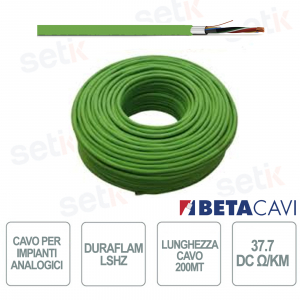

HD 4205 C_SF200 - Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoors and outdoors, with green Duraflam LSZH sheath. Heat-shrink coil - Suitable for installation in coexistence with cables for category systems. Resistance 37.7 (DC Ω/KM) - Formation (mm2) Coax+2x0.50 - External diameter 6.80mm - Cable length 200m - Beta Cavi
FIND INSTALLER
 Did you know that... WE ARE BETACAVI DISTRIBUTORS? Discover all the BETACAVI products in our catalogue |
CABLE FOR ANALOGUE VIDEO SURVEILLANCE SYSTEMS - EUROCLASS ECA - DURAFLAM LSHZ - CABLE LENGTH 200MT - BETA CABLES
Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoors and outdoors, heat-shrinkable hank.
Suitable for installation in coexistence with cables for category systems.
Resistance 37.7 (DC Ω/KM), Formation (mm2) Coax+2x0.50, External diameter 6.80mm, Cable length 200m
Suitable for installation in coexistence with cables for category systems.
Resistance 37.7 (DC Ω/KM), Formation (mm2) Coax+2x0.50, External diameter 6.80mm, Cable length 200m
Product details
- Coaxial cable for analogue video surveillance systems HDCVI, HDTVI, HDSDI, AHD, ECO for indoors and outdoors
- Heat shrinkable skein
- Suitable for installation in coexistence with cables for category systems
- Resistance 37.7 (DC Ω/KM)
- Formation (mm2) Coax+2x0.50
- External diameter 6.80mm
- Cable length 200m
- Certifications: CEI EN 50117, CEI UNEL 36762, CEI 20-37, EN 50575
Data sheet
| Model | HD 4205 C_SF200 |
| Training (mm2) | Coax+2x0.50 |
| resistance (DC Ω/KM) | 37.7 |
| Internal Installation | Yes |
| External Installation | Yes |
| External diameter (mm) | 6.80 |
| Material and color of the outer sheath | LSZH green |
| CPR reaction to fire classification | Cca s1b d1 a1 |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
