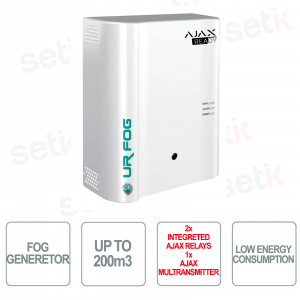

Fog alarm - MODULAR 200 AJAX READY - 2 Ajax relays + Ajax Multitransmitter included - Up to 200m3 - UR FOG

Fog alarm - MODULAR 200 AJAX READY - 2 Ajax relays + Ajax Multitransmitter included - Up to 200m3 - UR FOG
-25%

UR FOG MODULAR 200 AJAX READY Fog Alarm with 500ml bag, 2 Relays AJAX 38204.19.NC1 #38204 and 1 Multitransmitter AJAX 38200.62.WH1 #3 8 200 included. Ideal for protecting small/medium areas (shops, apartments, ATMs). Shoots up to 200 m3 of dense fog - Vertical or horizontal installation - Programmable shot in seconds up to 28s - 2 wired inputs - 1 wired output - FPU03ESM200ATM .



Reference: FPU03ESM200ATM

Brand: UR FOG

FIND INSTALLER

€1,637.85

€2,183.80 -25%
taxes included
Tax included
 Available in 5 days


FOG ANTI-THEFT ALARM - UR FOG - MODULAR 200 AJAX RELAY - FPU03ESM200ATM - COMPATIBLE WITH AJAX!

FPU03ESM200A bunner.jpg

URFog - FPU03ESM200ATM - MODULAR 200 AJAX RELAY - ANTI-THEFT FOG SYSTEM
URFOG Fog System

Misting system with 500ml bag, 2 AJAX Relays 38204.19.NC1 #38204 and 1 AJAX 38200.62.WH1 #3 8 200 Multitransmitter included, ideal for protecting small / medium areas such as shops, houses, ATMs.

Shoots up to 200m3 of dense fog - White color - Compact dimensions - Can be installed horizontally or vertically - Programmable shot in seconds (up to 28s) - 2 inputs and 1 output wired for error: empty bag, low battery and/or lack of power supplied ,hardware fault detection.

QUICK INSTALLATION!

No cables or connections needed, everything is ready for wireless.
Excellent high-tech solution at low cost.

Product details

  • Anti-theft fog system - UR FOG - MODULAR 200 AJAX RELAY - FPU03ESM200ATM
  • Emission of up to 200M3 of fog (with full bag)
  • Includes 500ml bag
  • 2 AJAX Relay 38204.19.NC1 #38204 and 1 AJAX Multitransmitter 38200.62.WH1 #3 8 200 included
  • Extremely low energy consumption (Green Power Technology)
  • Can be installed horizontally or vertically
  • LED operating indicator
  • Programmable shot up to 28s
  • Total firing time 2 minutes
  • Total shot volume 850 m3
  • 2 built-in Ajax relays (arming and firing)
  • Leaves no trace after fog shot
  • 2 wired inputs
  • 1 output wired for error: empty bag, empty batteries or power failure, hardware failure detection
  • Possibility of battery backup (12VDC 2.0Ah, not included)
  • White color
  • Dimensions: 390 x 300 x 130 mm

Wireless
3 ACTIVATION MODES

MOTION SENSORS MOTION SENSORS.jpg With the signal sent by the motion detection sensors and the door and window opening detection sensors, the fog system fires automatically
PHOTO CHECK PHOTO VERIFICATION.jpg The motion detector with MotionCam camera sends an animated series of photos for an accurate assessment of the situation, in case of actual need and not a false alarm, the fog system can be fired remotely
ANTI-PANIC / ANTI-ROBBERY Untitled-1.jpg If necessary, it is possible to manually activate the Fog System via the remote control with SpaceControl panic button, the DoubleButton emergency button and the Button panic button when the alarm system is not armed

Further details

Emissione nebbia rapida

The fastest fog generators in the world

Up to 200 m3 in 15 seconds. It is impossible to steal what is impossible to see this phrase makes a lot of sense when we mean UR Fog since in a few seconds you can't see anything.

Nebbia ad alta densità

The thickest fog

Thanks to the innovative formulation of the fluid with a high percentage of glycol it ensures a dense fog that is totally impenetrable to visibility.

Sostituzione cilindro semplice

Removable cylinders

Removable and without the need for charging.

Basso consumo di energia

Low energy consumption

The perfect insulation system offers very low energy consumption which saves costs compared to other misting systems.

Nozzle Tamper

Nozzle tamper

Another unique, patented and very useful advantage that automatically detects if the nozzle is tampered with and sends a warning signal

Protocollo Standard Smart Bus

Smart bus standard protocol

A single serial bus to connect an additional card to the electronic board that allows you to easily interface the machine with alarms and control the misting system even remotely. A standard protocol for all machines.

Tecnologie UR FOG in continua evoluzione

Innovative technology and performance

UR FOG misting systems are innovative in their technology and performance, in order to guarantee maximum protection against theft.

Prodotto certificato UR FOG

Safe and certified

UR FOG misting systems are certified according to European legislation. The fog liquid is tested and is absolutely safe. They are not dangerous for objects, animals or people and do not leave residues.

Accessories

UR-FOG ACCESSORIES:

FPUSTD.jpg FPUSTD - Table stand
FPUWB.jpg FPUWB - Adjustable bracket for wall mounting
URCLWF.jpg URCLWF - Active Cloud LAN Card (optional WiFi antenna)
URCLWFA.jpg URCLWFA - Active Cloud WiFi Antenna
URCLWFM.jpg URCLWFM - Active Cloud Board Mounting Kit (12V Cable + Flat Cable)
FFLXRC2-3.jpg FFLXRC2/3 - 500 ml fluid bag
FFLXRC2-3FG.jpg FFLXRC2/3FG - 500 ml FOOD GRADE fluid bag
FFLXRC4-5.jpg FFLXRC4/5 - 750 m fluid bag
FFLXRC4-5FG.jpg FFLXRC4/5FG - 750 ml FOOD GRADE fluid bag
FFLXTRC8.jpg FFLXTRC8 - 1000 ml fluid bag
FFLXTRC8FG.jpg FFLXTRC8FG - 1000 ml FOOD GRADE fluid bag

Downloads

No brochures available


WHO IS UR FOG?

Nebbiogeni Antifurto UR FOG

UR Fog is one of the most solid Italian companies in the fog systems market.
The UR FOG team is made up of professionals and engineers with over 20 years of experience both in the development of new products and in managing distribution throughout the world. From 2012 to today they have obtained several patents, created new technologies such as the single and double cylinder one born right at the beginning of the business and introduced important innovations such as that of the adjustable nozzle.
One of the strong points of this company and thanks to which they are very often chosen, is the speed of fog ejection, a critical aspect for the products of many other competing brands.

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
