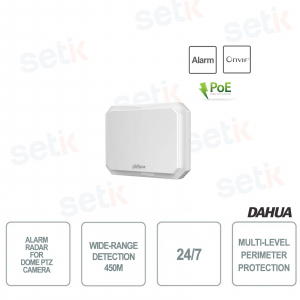

radar alarm for dome ptz camera dahua 24/7 - up to 450m

radar alarm for dome ptz camera dahua 24/7 - up to 450m
-57%

Dahua PFR4K-D450 Radar Alarm 24 Ghz ONVIF PoE compatible with Dome PTZ Camera. 24/7 operation. Wide range detection (450m people/600m vehicles). High precision . Target filtering, PTZ radar linkage, Front-end PTZ control. Centralized Management and Smart Tracking . Multi-level Protecion : Different alarm priorities, connection of external alarms, people/vehicles filtering and low and medium speed vehicle detection. 1 input/5 alarm outputs. 1 x 256GB microSD slot. 1 RJ 45 (10Base-T/100Base-TX). IP67/ IK10 protection. CE RED certification. Dahua Technology



Reference: PFR4K-D450

Brand: Dahua

FIND INSTALLER

€7,964.48

€18,522.04 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


RADAR ALARM 24 GHz - ONVIF® POE - UP TO 450M - PTZ CAMERA COMPATIBLE - 24/7 - MULTI-LEVEL PROTECTION - DAHUA

Dahua Radar Alarm 24 Ghz ONVIF® PoE - Dahua
Wide Range Detection (450m People/600m Vehicles) - Compatible with Dome PTZ Camera - 24/7 Operation - High Accuracy - Target Filtering - PTZ Radar Linkage - PTZ Front-End Control - Centralized Management - Smart Tracking - 1 Input/5 Output Alarm - 1 256 GB microSD slot - 1 RJ 45 (10Base-T/100Base-TX) - IP67/ IK10 protection
Multi-level Perimeter Protection: Different alarm priorities, linking of external alarms, people/vehicles filtering and low and medium speed vehicle detection - CE RED Certification

Product details:

allarme radar per dome ptz camera dahua 24/7 - fino a 450m
  • Radar Alarm 24 Ghz ONVIF® PoE - Dahua
  • Wide range detection (450m people/600m vehicles)
  • Compatible with Dome PTZ Cameras
  • 24/7 operation
  • High precision
  • Target filtering
  • PTZ radar link
  • Front-end PTZ control
  • Centralized management
  • smart tracking
  • 1 input/5 alarm outputs
  • 1 x 256GB microSD slot
  • 1 RJ 45 (10Base-T/100Base-TX)
  • IP67/ IK10 protection
  • Multi-level Perimeter Protection: Different alarm priorities, linking of external alarms, people/vehicle filtering and low and medium speed vehicle detection
  • CE RED certification
  • 24 months warranty

Data sheet

model PFR4K-D450
Performance
Max. Target Number 32
Detection Distance

Human: 450.0m (1476.38ft)

Vehicle: 600.0m (1968.50ft)

Detection Angle

Horizontal: 90°

Vertical: 13°

Max. Detection Speed 80 km/h, continuous trajectory
Min. Detection Speed 1.8km/h, continuous trajectory
Distance Accuracy ±1.5m (±4.92ft)
Angle Accuracy ± 1°
Max. Area Number 10
ModulationType fmc extension
Scan Frequency 8Hz
Operating Frequency 24GHz
Detection Target Type Human and vehicle
Function
Radar+PTZ Smart Tracking Supported on web manager
TrackMode Tour, distance priority, and time priority
Region Setting Alarm area, pre-warning area, and shield area
Target filtering Human and vehicle filtering
Record Mode

Manual record, scheduled record, and alarm record

Record priority: Manual>Alarm>Scheduled

Restore Default Settings Restore to default settings with one click
Security Authorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access control
Positioning GPS, Glonass
MapEncoding Yes
Network
Ethernet RJ-45 (10Base-T/100Base-TX)
protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, and 802.1x
Interoperability

ONVIF® Profile S&G, CGI

User/Host 19
Storage NAS; FTP; micro SD card (256G)
Browsers

IE: Versions later than IE7

Google: Versions earlier than Chrome45

Firefox: Versions earlier than Firefox46

management software DS extension
Port
Alarm Inputs 1 channel (support 5V DC potential and 5mA current)
Alarm Output

5 channels (wet contact; support max 12V DC potential and max 300mA current)

Alarm Linkage Snapshots, radar-PTZ linkage, SD card record, alarm triggering output, electronic map displaying, and email sending
Alarm Event Radar alarm, no SD card, insufficient SD card storage, SD card error, network disconnection, IP conflict, full disk, and illegal access
SD card Yes
Indicator Light

Network connection:Yellow

Running status: Red/Green

Power: Green

Power
Power Supply DC 12V (±30%), AC 24V (±30%), PoE (802.3at)
power consumption

Basic: 20W

Max.: 24W

environment
Operating Temperature –40°C to +65°C (–40°F to +149°F)
Operating Humidity ≤95% (RH)
Storage Temperatures –40°C to +80°C (–40°F to +176°F)
Storage Humidity ≤95% (RH)
Ingress Protection IP67/IK10
ESD

Contact discharge: 6k

Air discharge: 8k

Surge Protection Grade

Common mode: ±6kV

Differential Mode: ± 2kV

structure
Product Color White
Casing ADC12+PC
Product Dimensions 244.9mm × 184.9mm × 61.2mm (9.64" × 7.28" × 2.41")
Packaging Dimensions 328.0mm × 146.0mm × 278.0mm (12.90"×5.75" × 10.95")
Net Weight 2.0kg (4.41lbs)
Gross Weight 3.2kg (7.06lbs)
Installation Method Wall mount, ceiling mount, pole mount
Installation Height 3.0 m to 5.0 m (3.0 m recommended) (9.84 ft to 16.40 ft) (9.84 ft recommended)
Installation Position Separate or integrated installation
Certifications
Certifications

CE: EN 50385; EN 55032; EN 55024; EN 55035; EN 50130-4; ETSI EN 301 489-1; ETSI EN 301 489-3; EN 60950-1

CE RED: EN 300440

Further details

Standard ONVIF® Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

- Smart Tracking

- Multi-level Protecion: Different alarm priorities, connection of external alarms, people/vehicle filtering and low and medium speed vehicle detection.

Questa telecamera presenta ingressi e uscite allarme This camera has 1 inputs + 5 alarm outputs
Protezione IP67 IP67 protection against water and dust

IK 10 is the highest level of protection from direct damage. This allows use even if there is a risk of vandalism

1x SD Card Slot (Max 256GB)

12VDC_Supply
PoE power supply

Power supply DC 12V (±30%), AC 24V (±30%), PoE (802.3at)
Italian Guarantee icon This product is covered by a 24 month guarantee.

Downloads

Download the English brochure

Radar alarm dimensions for dahua 24/7 ptz dome camera - up to 450m
