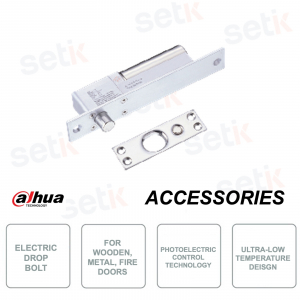

ELECTROMAGNETIC LATCH - DAHUA - ASF802

Compatible for use with wooden, metal, fire doors etc - Wide operating temperature range: -20°C~+55°C - Photoelectric technology to prevent mechanical failure - User adjustable door lock delay - With microprocessor for circuit control.
Product details
- Electromagnetic bolt - DAHUA - ASF802
- Ideal for use with wooden, metal or fire doors etc
- Power supply: 12VDC
- Low consumption
- Photoelectric technology for the control and prevention of mechanical failures
- Door lock delay adjustment: 0 / 3 / 6 / 9 s
- Microprocessor for circuit control
- 500,000 electricity aging tests
- Dimensions: 205*42*40mm
- Item net weight: 0.72Kg
- Wide working temperature: -20°C~+55°C

Data sheet
ASF802 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working voltage | DC12V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working current | 110mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lock hold interval | 0/3/6/9s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applications | Wooden door, metal door, fire door, etc | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
life | >1000,000 times | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anti-pull | 1000kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 205*35*40mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working temperatures | -30°C~+60°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working humidity | ≤95% |
Further details

Downloads
Questions (0)
No customer questions for the moment.
