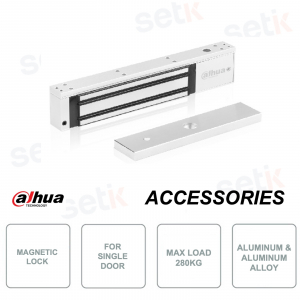

DAHUA - ASF280A - ELECTROMAGNETIC LOCK WITH ALUMINUM BODY FOR SINGLE DOOR - MAXIMUM LOAD 280KG

Made by Dahua
Electromagnetic lock - DAHUA - ASF280A
For single door - Maximum load 280Kg - MOV protection device for current control - DC12V or DC24V power supply - Net weight 2.0Kg.

Product details

  • Electromagnetic lock - DAHUA - ASF280A
  • For single door
  • Maximum load 280Kg
  • Aluminum shell and aluminum alloy to ensure maximum strength
  • MOV protection device for current control
  • DC12V and DC24V power supply
  • Current: 480mA/240mA
  • Net weight 2.0Kg
  • Dimensions: 250*47*26mm
  • Wide working temperature: -30°C~+60°C
  • Relative humidity up to 95%
CAJ20_SETIK

Data sheet

ASF280A

Technical Specs

Electronic

Working voltage

DC12V/DC24V

Working current

480mA/240mA

General

Anti-pull

280kg

Frameless glass door

Equipped with ASF280U/ASF280F stents

Open inward door

Equipped with ASF280ZL/ASF280L stents

Overall dimensions

250*47*26mm

Weight

2.0kg

Working Environment

Working temperatures

-30°C~+60°C

Working humidity

≤95%

Further details


Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
