DAHUA - ASF500A - ELECTROMAGNETIC LOCK FOR SINGLE DOOR - ALUMINUM BODY - MAX. 500KG

Made by Dahua

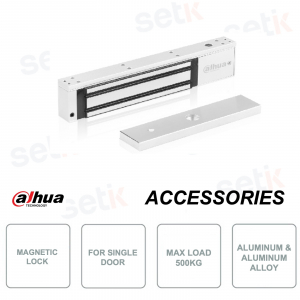

Electromagnetic lock - DAHUA - ASF500A
Electromagnetic lock made of aluminum and high strength aluminum alloy - For single door - Maximum guaranteed load up to 500Kg - Support DC12V/DC24V power supply - Equipped with ASF500ZL/ASF500L stent - Wide operating temperature: -30°C~+60°C - Net weight 4.5Kg - Dimensions: 265*71*40mm.

Product details

  • Electromagnetic lock - DAHUA - ASF500A
  • For single occupancy
  • Material : Aluminum and high strength aluminum alloy
  • Maximum load: up to 500Kg
  • Integrates ASF500ZL/ASF500L stent
  • Dimensions: ASF500ZL/ASF500L stents
  • Weight: 4.5Kg
  • Power supply: DC12V/DC24V
  • Voltage: 480mA/240mA
  • Wide operating temperature supported: -30°C~+60°C
  • Relative Humidity: ≤95%
CAJ20_SETIK

Data sheet

ASF500A

Technical Specs

Electronic

Working voltage

DC12V/DC24V

Working current

480mA/240mA

General

Anti-pull

500kg

Open inward door

Equipped with ASF500ZL/ASF500L stents

Overall dimensions

265*71*40mm

Weight

4.5kg

Working Environment

Working temperatures

-30°C~+60°C

Working humidity

≤95%

Further details


Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
