Dahua - ASF500B - Electromagnetic lock - For double door - Maximum load 2x500Kg - Integrated MOV current control device - DC12V or DC24V power supply - In aluminum and high resistance aluminum alloy - 9.1Kg net weight.
FIND INSTALLER
DAHUA: LOSS LEADER×
INCREDIBLE DISCOUNTS
on a selection of DAHUA products
Check out the promo now >>

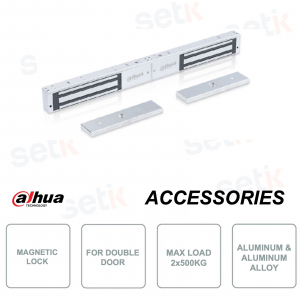

ELECTROMAGNETIC LOCK FOR DOUBLE DOOR - MAXIMUM LOAD 2X500KG - DAHUA - ASF500B
Electromagnetic lock - DAHUA - ASF500B
For double door - Maximum load 2x500Kg - Made of aluminum and high strength aluminum alloy - Product net weight 9.1Kg - Supports DC12V/DC24V power supply - Integrates ASF500ZL / ASF500L stents.
Product details
- Electromagnetic lock - Dahua - ASF500B
- For double door
- Maximum weight supported 100Kg (2x500Kg)
- Material : Aluminum shell and high strength aluminum alloy
- Dimensions: 530*71*40mm
- Weight: 9.1Kg
- Wide working temperature: -30°C~+60°C
- Relative Humidity: 95%
- Equipped with ASF500ZL / ASF500L stents
- Support DC12V/DC24V power supply
Data sheet
| ASF500B | |
Technical Specs | |
Electronic | |
Working voltage | DC12V/DC24V |
Working current | 600mA/300mA |
General | |
Anti-pull | 500kg*2 |
Open inward door | Equipped with ASF500ZL / ASF500L stents |
Overall dimensions | 530*71*40mm |
Weight | 9.1kg |
Working Environment | |
Working temperatures | -30°C~+60°C |
Working humidity | ≤95% |
Further details
Downloads
Download the English brochure
