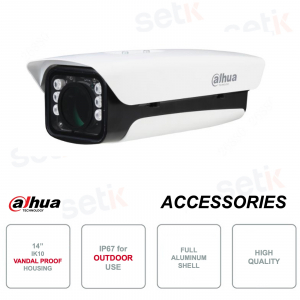

Dahua - PFH610V - 14 Inch protective housing - Vandal-proof with IK10 protection - IP67 protection for outdoor use - Completely aluminum design - High quality product - Ideal for outdoor video surveillance systems - Product weight 2.5Kg.
FIND INSTALLER
PROTECTIVE CASE - OUTDOOR - IN ALUMINUM - VANDAL PROOF - 14 INCH - DAHUA - PFH610V
Product details
- Vandal-proof outdoor case - Dahua - PFH610V
- Housing: 14 Inch
- Suitable for CCTV cameras in setting up surveillance systems
- Dimensions inside the housing: 215x90x83mm
- Product Dimensions: 404mm x 164mm x 132mm (15.91”x6.46”x5.2”)
- Window Size: ?60mm(?2.36”)
- Material : Aluminum
- Operating temperature: -30ºC ~60ºC
- Relative Humidity: <90% RH
- IP67 protection, ideal for outdoor use
- IK10 protection, ideal against vandalism
- Weight: 2.5Kg
Data sheet
model | PFH610V | |
General | ||
Inside Dimensions (LxWxH) | 215x90x83mm (8.46”x3.54”x3.27”) | |
Window Dimensions | ?60mm(?2.36”) | |
Operating Temperature | -30ºC ~+60ºC (-22?~+140?) | |
Power Supply | DC12V, AC24V (just for camera) | |
environmental | ||
Operating Temperature | -30ºC ~60ºC (-22?~+140?) | |
humidity | <90%RH | |
Ingress Protection | IP67 | |
Vandal Resistance | IK10 | |
Construction | ||
Material | Aluminum(case)&PC(others) | |
Dimension(LxWxH) | 404mmx164mmx132mm(15.91”x6.46”x5.2”) | |
Weight | 2.5kg(5.51lb) | |
Others | ||
Certification | CE, FCC, ICES | |
