14 Inch housing - IK10 anti-vandal protection - Outdoor IP67 - IR 100m

14 Inch housing - IK10 anti-vandal protection - Outdoor IP67 - IR 100m
-57%

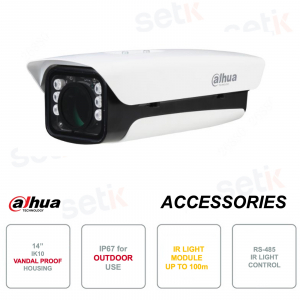

Dahua - PFH610V-IR - 14 Inch Protective Housing - Vandal-Proof with IK10 Protection - IP67 Protection for Outdoor Use - IR up to 100m - Heater - Cooler - Completely aluminum design - High quality product - Ideal for video surveillance systems set up in external - Product weight 3Kg.



Reference: PFH610V-IR

Brand: Dahua

FIND INSTALLER

€236.07

€549.00 -57%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


PROTECTIVE CASE - OUTDOOR USE - IN ALUMINUM - VANDAL PROOF - HEATER AND COOLER - 14 INCH - IR 100M - DAHUA - PFH610V-IR

Made by Dahua
Housing for CCTV camera - Outdoor protective case - IK10 Anti-vandalism - Dahua - PFH610V-IR
In aluminum - IP67 protection, ideal for use in outdoor environments - IK10 impact protection, against vandalism - IR up to 100m - Heater - Cooler - Ideal for video surveillance systems set up in outdoor environments.

Product details

  • Vandal-proof outdoor housing - Dahua - PFH610V-IR
  • Housing: 14 Inch
  • Suitable for CCTV cameras in setting up surveillance systems
  • IR up to 100m (controllable via RS-485)
  • Heater (for heating)
  • Cooler (for cooling)
  • Product Dimensions: 404mm x 164mm x 132mm (15.91”x6.46”x5.2”)
  • Window Size: ?60mm(?2.36”)
  • Material : Aluminum shell
  • Operating temperature: -40ºC ~60ºC
  • Relative Humidity: <90% RH
  • IP67 protection, ideal for outdoor use
  • IK10 protection, ideal against vandalism
  • Weight: 3Kg
Contenitore da esterno Dahua  PFH600N

Data sheet

model

PFH610V-IR

General

Inside Dimensions (LxWxH)

255x90x70.5mm(10.04”x3.54”x2.78

Window Dimensions

?60mm(?2.36”)

Operating Temperature

Set

-40ºC ~+60ºC(-40?~+140?)
Heater ON: 5±5 ºC /OFF: 15±5 ºC
Coolers ON: 37±5 ºC /OFF: 20±5 ºC ON: 5±5 ºC /OFF: 15±5 ºC
IR Distance 0~100m(0~328.08ft)
RS485 Control Yes, use RS485 to control IR light

Power Supply

AC24V/5A
Power Supply 55W

environmental

Operating Temperature

-40ºC ~60ºC

humidity

<90%RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Material

Aluminum (case) & PC (others)

Dimension(LxWxH)

404mmx164mmx132mm(15.91”x6.46”x5.2”)

Weight

3.0kg(6.61lb)

Others

Certification

CE, FCC, ICES

Further details

Schema DImensioni PFH600N

Downloads

- Leaflet Container
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
