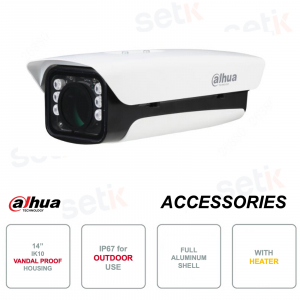

PROTECTIVE CASE - OUTDOOR - IN ALUMINUM - VANDAL PROOF - 14 INCH - WITH HEATER AND COOLER - DAHUA - PFH610V-H
Product details
- Vandal-proof outdoor enclosure - Dahua - PFH610V-H
- Housing: 14 Inch
- Suitable for CCTV cameras in setting up surveillance systems
- Heater
- Cooling (Cooler)
- Window Size: ?60mm(?2.36”)
- Material : Aluminum
- Operating temperature: -40ºC ~+60ºC
- Heater temperature: ON: 5±5 ºC /OFF: 15±5 ºC
- Cooler Temperature: ON: 37±5 ºC /OFF: 20±5 ºC ON: 5±5 ºC /OFF: 15±5 ºC
- Relative Humidity: <90% RH
- IP67 protection, ideal for outdoor use
- IK10 protection - against shocks - ideal against vandalism
- Power supply: AC24V/3A
- Product Dimensions: 404mm x 164mm x 132mm (15.91”x6.46”x5.2”)
- Item net weight: 2.7Kg
Data sheet
model | PFH610V-H | |
General | ||
Inside Dimensions (LxWxH) | 255x90x70.5mm(10.04”x3.54”x2.78”) | |
Window Dimensions | ?60mm(?2.36”) | |
Operating Temperature | Set | -40ºC ~+60ºC(-40?~+140?) |
| Heater | ON: 5±5 ºC /OFF: 15±5 ºC | |
| Coolers | ON: 37±5 ºC /OFF: 20±5 ºC ON: 5±5 ºC /OFF: 15±5 ºC | |
Power Supply | AC24V/3A | |
environmental | ||
Operating Temperature | -40ºC ~60ºC (-40?~+140?) | |
humidity | <90%RH | |
Ingress Protection | IP67 | |
Vandal Resistance | IK10 | |
Construction | ||
Material | Aluminum (case) & PC (others) | |
Dimension(LxWxH) | 404mm x 164mm x 132mm (15.91”x6.46”x5.2”) | |
Weight | 2.7kg(5.95lb) | |
Others | ||
Certification | CE, FCC, ICES | |
