Dahua - PFH610N-IR-W - Protective housing - For CCTV cameras - Outdoor - 14 Inch - IP66 Waterproof - In aluminum - IR up to 100m (controllable via RS485) - Ideal solution in case of rain - Integrated heater and cooler (systems heating and cooling) - Ideal for outdoor video surveillance systems.
FIND INSTALLER

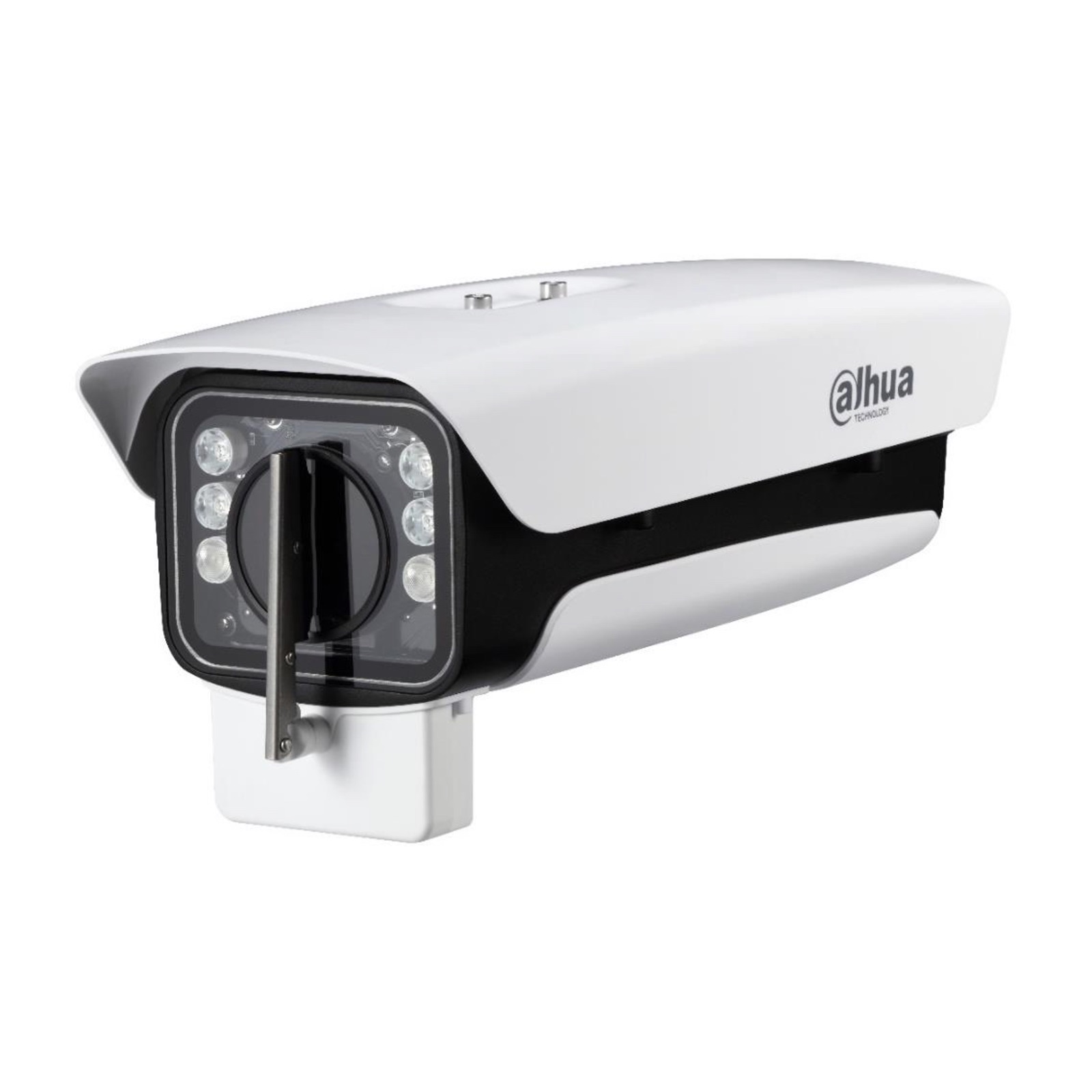

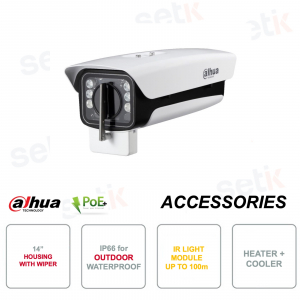

OUTDOOR PROTECTIVE CASE - ALUMINUM - 14 INCH - IR 100M - WIPER - DAHUA - PFH610N-IR-W
Product details
- Outdoor housing - Dahua - PFH610N-IR-W
- Suitable for surveillance CCTV cameras
- 14 inches
- Ideal for video surveillance systems set up in outdoor environments
- Material: made of aluminum
- Window size: ?59.4mm(?2.34”)
- Ordinary working temperature: -40ºC ~+60ºC(-40?~+140?)
- IR illuminator up to 100m
- Windscreen wiper (Wiper) included, ideal in case of poor visibility due to rain
- Heater (Heating system)
- Cooler (Cooling system)
- Weight: 3.5Kg
Data sheet
model | PFH610N-IR-W | |
General | ||
Inside Dimension(LxWxH) | 255mmx90mmx70.5mm(10.04”x3.54”x2.78”) | |
Window Dimensions | ?59.4mm(?2.34”) | |
Operating Temperature | Set | -40ºC ~+60ºC(-40?~+140?) |
Heater | ON: 5±5 ºC /OFF: 15±5 ºC | |
Coolers | ON: 37±5 ºC /OFF: 20±5 ºC ON: 5±5 ºC /OFF: 15±5 ºC | |
IR Distance | 0~100m(0~328.08ft) | |
RS485 Control | Yes, use RS485 to control IR light & wiper | |
Wipers | Yes | |
Power Supply | AC24V/5A | |
Power Consumption(without camera) | Max. 70W | |
environmental | ||
Operating Temperature | -40ºC ~60ºC(-40?~+140?) | |
humidity | <90%RH | |
Ingress Protection | IP66 | |
Construction | ||
Material | Aluminum(case)&PC(others) | |

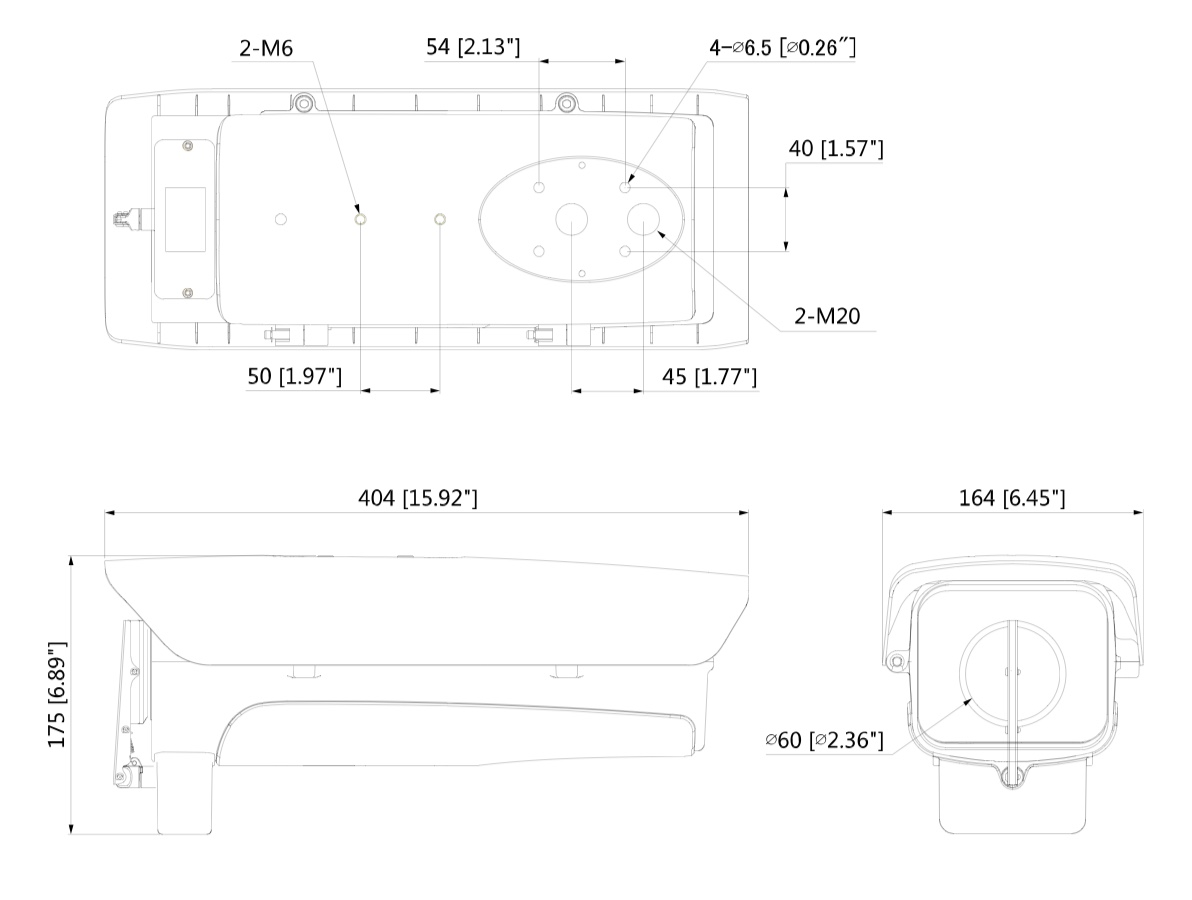

Dimension(LxWxH) | 404mmx164mmx175mm(15.91”x6.46”x6.89”) | |
Weight | 3.5kg(7.72lb) | |
Others | ||
Certification | CE, FCC, ICES | |
